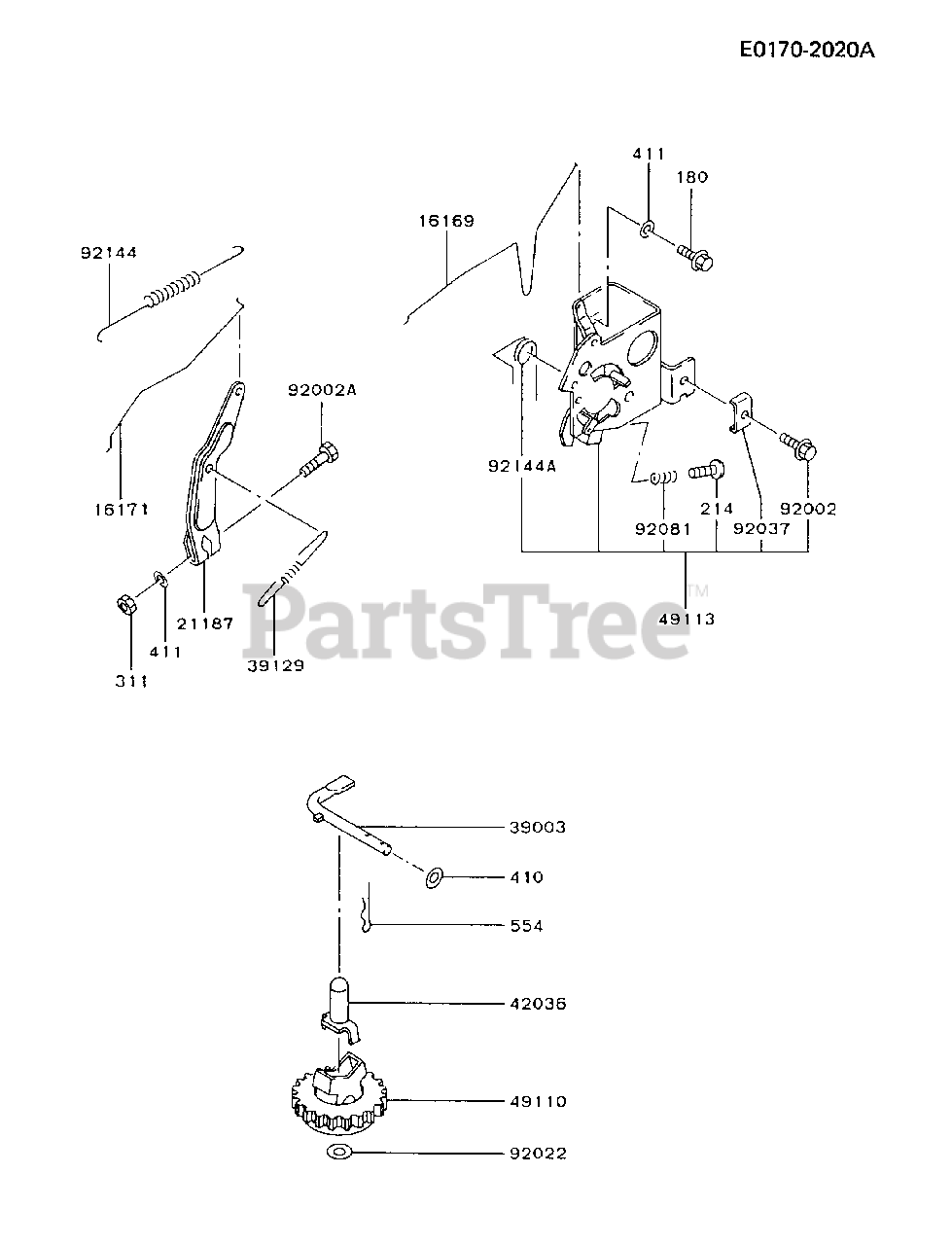

FA210V-AS03 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
16169

Kawasaki 16169-2087

LINK-CHOKE

$

$

Not available

16171

$

$

Not available

21187

$

$

Not available

39003

Kawasaki 39003-2052

ARM-PIVOT
(Superseded to 39003-2069)

$

$

Not available

39129

Kawasaki 39129-2013

SPRING-GOVERNOR

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49110

Kawasaki 49110-2051

GOVERNOR-ASSY
(Superseded to 314401-5110A)

$15.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-2077

PANEL-COMP-CONTROL

$

$

Not available

92002

Kawasaki 92002-2188

BOLT
(Superseded to 310701-1225A)

$0.99

$

In Stock, Qty 20+

0

92002A

$1.99

$

In Stock, Qty 6

0

92022

Kawasaki 92022-2135

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92037

$1.99

$

Usually ships in 2-5 days

0

92081

Kawasaki 92081-2103

SPRING
(Superseded to 92144-2266)

$5.49

$

Usually ships in 2-5 days

0

92144

$3.49

$

Usually ships in 2-5 days

0

92144A

$

$

Not available

180

Kawasaki 180B0614

BOLT-UPSET-WS
(Superseded to 180AA0614)

$5.49

$

Usually ships in 2-5 days

0

214

Kawasaki 214B0420

SCREW-PAN+-
(Superseded to 214AA0420)

$0.99

$

In Stock, Qty 10

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
