FA210V-AS03 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

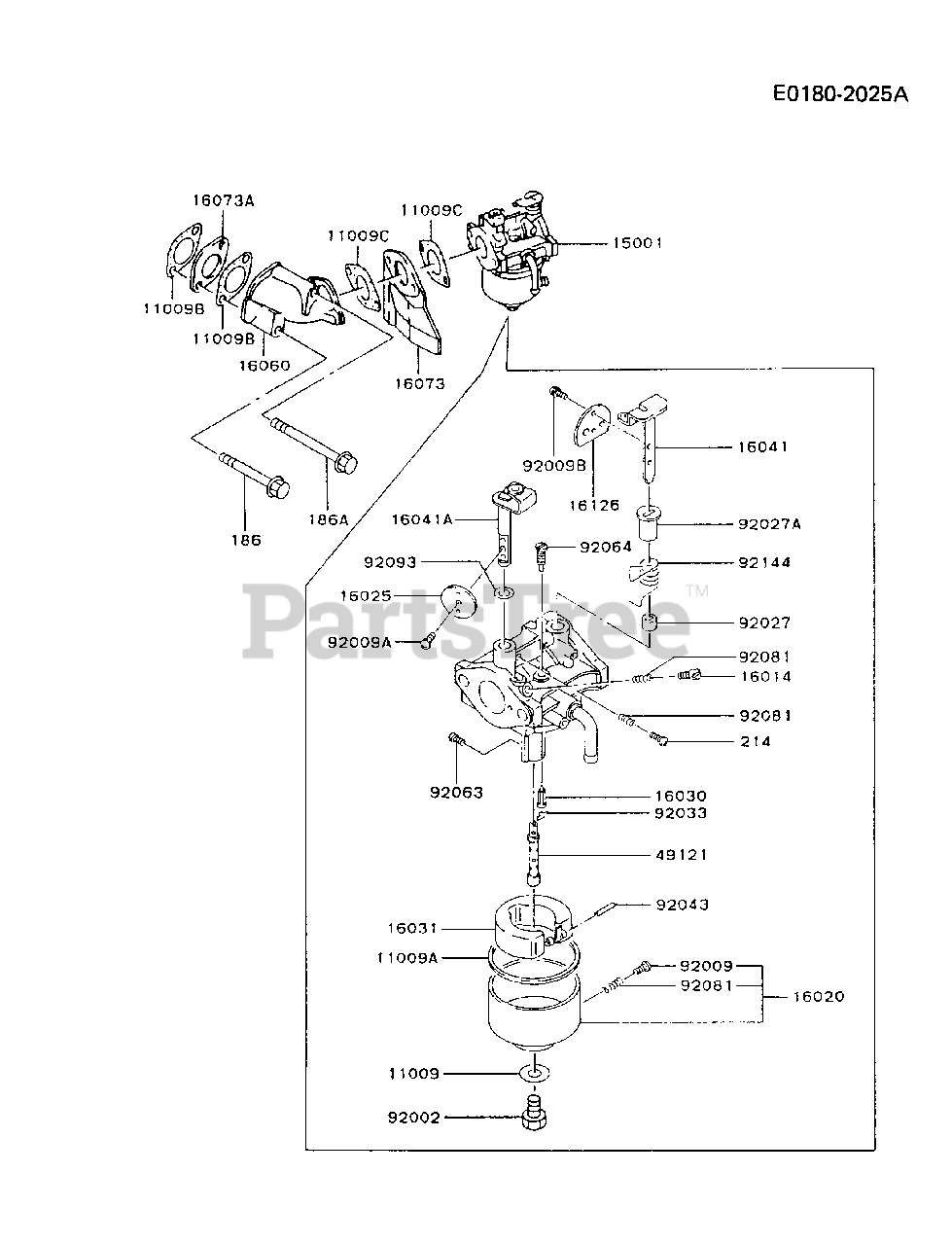

CARBURETOR Parts Diagram

  • Title
11009

Kawasaki 11009-2036

GASKET
(Superseded to 314499-6159A)

$1.49

$

In Stock, Qty 12

0

11009A

Kawasaki 11009-2037

GASKET
(Superseded to 314598-6128A)

$6.49

$

In Stock, Qty 20+

0

11009B

$

$

Currently unavailable

11009C

Kawasaki 11009-2142

GASKET
(Superseded to 11060-2051)

$1.99

$

In Stock, Qty 20+

0

15001

Kawasaki 15001-2795

CARBURETOR-ASSY

$

$

Not available

16014

Kawasaki 16014-2004

SCREW-PILOT AIR

$

$

Not available

16020

Kawasaki 16020-2052

CHAMBER-FLOAT
(Superseded to 314576-6130A)

$

$

Not available

16025

Kawasaki 16025-2065

VALVE-THROTTLE,#130
(Superseded to 312750-6101A)

$

$

Not available

16030

Kawasaki 16030-2016

VALVE-FLOAT
(Superseded to 314595-6122A)

$22.99

$

Usually ships in 2-5 days

0

16031

$21.99

$

In Stock, only 1 left!

0

16041

Kawasaki 16041-2156

SHAFT-CARBURETOR,CHOKE

$

$

Not available

16041A

Kawasaki 16041-2157

SHAFT-CARBURETOR,THROTTLE

$

$

Not available

16060

Kawasaki 16060-2124

PIPE-INTAKE

$

$

Not available

16073

$6.52

$

In Stock, only 1 left!

0

16073A

Kawasaki 16073-2060

INSULATOR
(Superseded to 315590-6181A)

$2.99

$

Usually ships in 2-5 days

0

16126

Kawasaki 16126-2143

VALVE,CHOKE

$

$

Not available

49121

Kawasaki 49121-2107

NOZZLE-MAIN,#16B

$

$

Not available

92002

Kawasaki 92002-2011

BOLT
(Superseded to 314499-6143A)

$

$

Not available

92009

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2080

SCREW
(Superseded to 92009-3710)

$

$

Not available

92009B

Kawasaki 92009-2149

SCREW
(Superseded to 92009-2377)

$1.99

$

In Stock, Qty 6

0

92027

$3.99

$

Usually ships in 2-5 days

0

92027A

$4.99

$

In Stock, only 1 left!

0

92033

$4.99

$

Usually ships in 2-5 days

0

$3.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2094

JET-MAIN,#91.3

$

$

Not available

92064

Kawasaki 92064-2001

JET-PILOT,#40

$

$

Not available

92081

$3.49

$

In Stock, only 3 left!

0

92093

$1.99

$

In Stock, Qty 5

0

92144

$

$

Not available

186

Kawasaki 186G0640

BOLT-UPSET-WP
(Superseded to 186BA0640)

$

$

Not available

186A

Kawasaki 186G0655

BOLT-UPSET-WP

$

$

Not available

214

Kawasaki 214B0412

SCREW-PAN+-
(Superseded to 214AA0412)

$0.99

$

In Stock, Qty 6

0
