FA210V-AS02 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

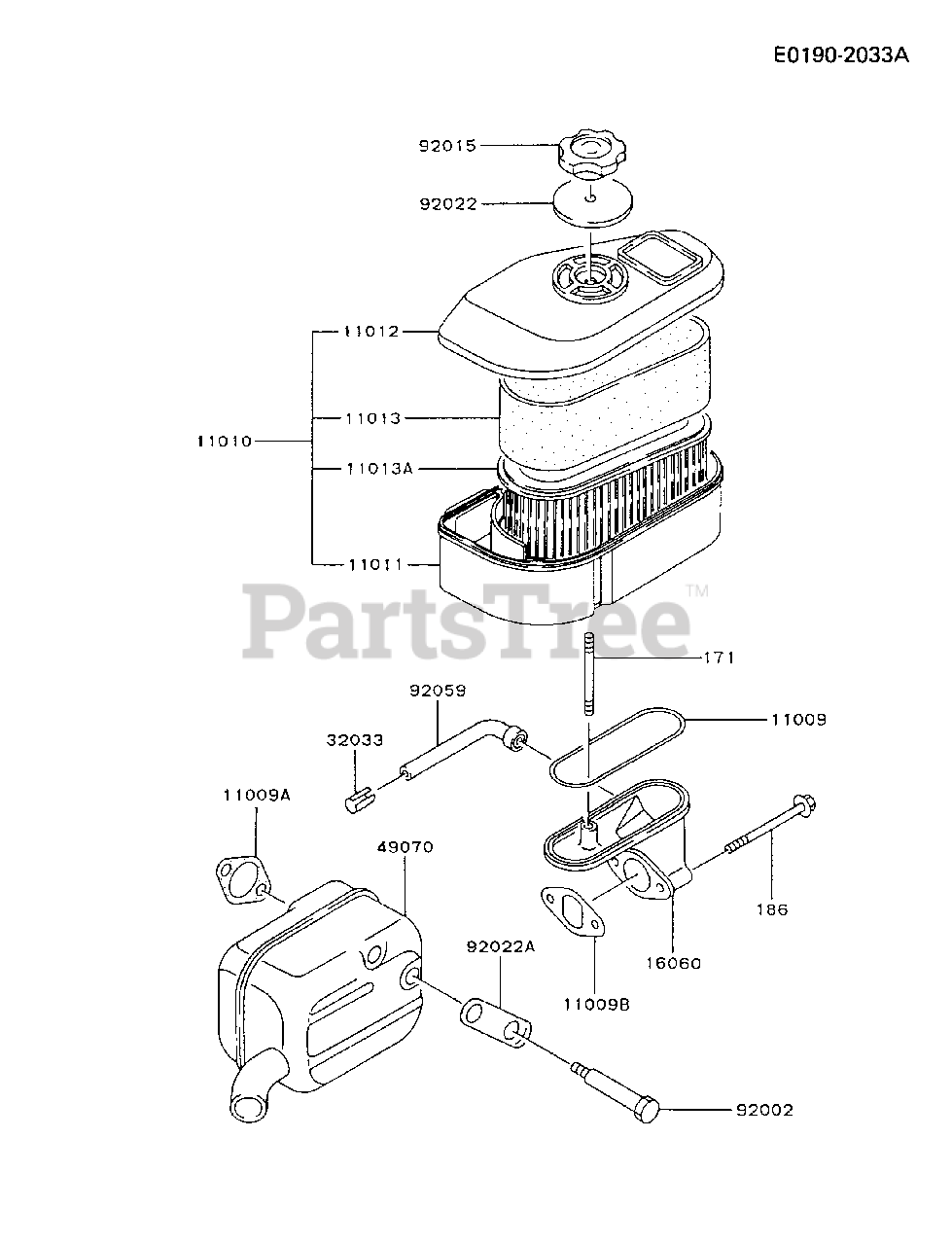

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

$

$

Not available

11009A

Kawasaki 11009-2531

GASKET
(Superseded to 11009-2487)

$4.99

$

In Stock, Qty 10

0

11009B

Kawasaki 11009-2139

GASKET
(Superseded to 11060-2024)

$1.49

$

Usually ships in 2-5 days

0

11010

Kawasaki 11010-2297

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2178

CASE-AIR FILTER

$12.99

$

Usually ships in 2-5 days

0

11012

Kawasaki 11012-2216

CAP,AIR FILTER

$

$

Not available

11013

Kawasaki 11013-2104

ELEMENT-AIR FILTER

$3.49

$

In Stock, only 4 left!

0

11013A

Kawasaki 11013-2105

ELEMENT-AIR FILTER

$28.99

$

Usually ships in 2-5 days

0

16060

Kawasaki 16060-2123

PIPE-INTAKE

$

$

Not available

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

49070

Kawasaki 49070-2387-9Y

MUFFLER-COMP

$

$

Not available

92002

$

$

Not available

$

$

Not available

92022

$

$

Not available

92022A

$

$

Not available

92059

$

$

Not available

171

Kawasaki 171G0660

BOLT-STUD

$

$

Not available

186

Kawasaki 186G0690

BOLT-UPSET-WP
(Superseded to 186BA0690)

$1.49

$

Usually ships in 2-5 days

0
