FA210D-GS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

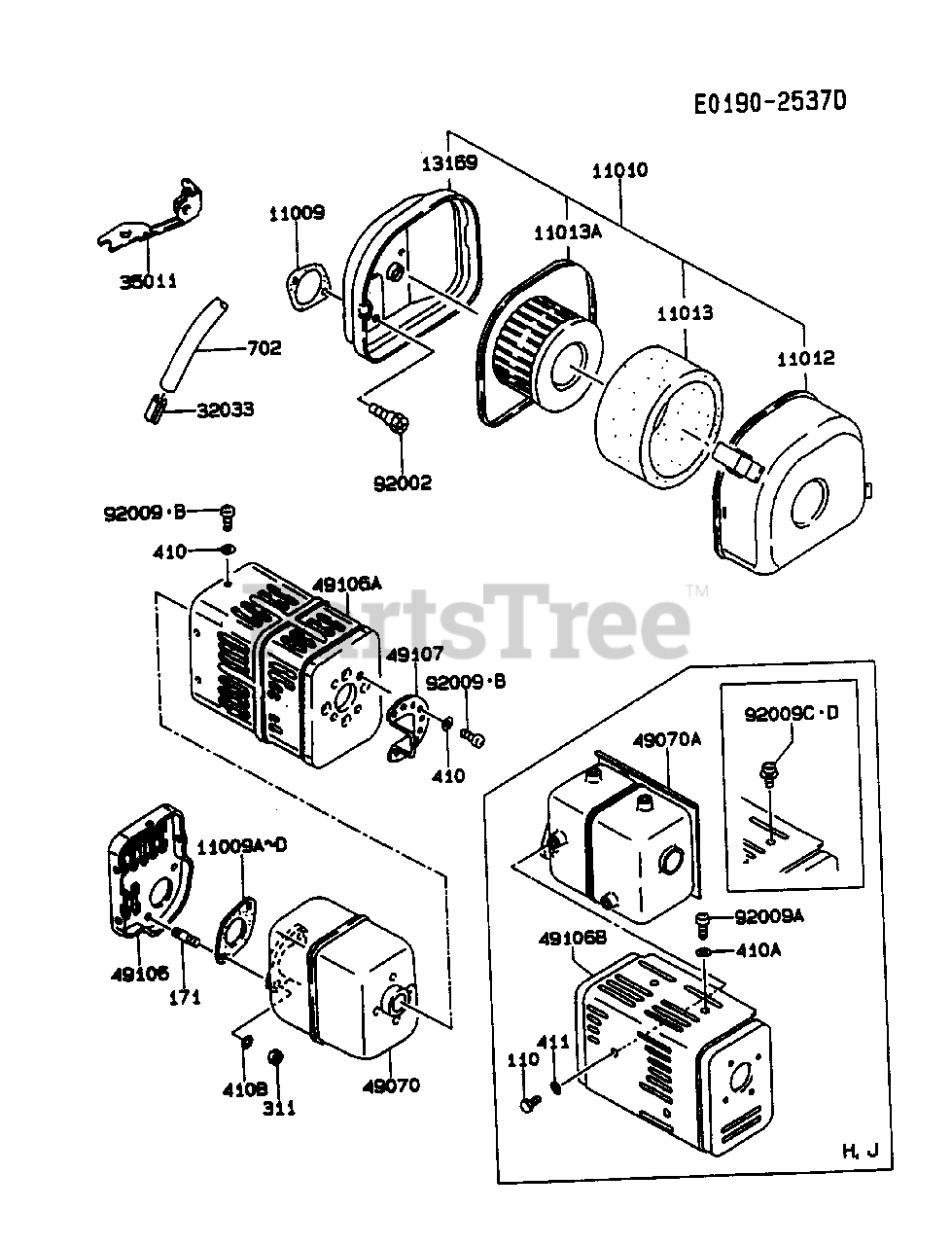

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2102

GASKET
(Superseded to 314401-1332A)

$0.99

$

In Stock, Qty 5

0

11009A

Kawasaki 11009-2163

GASKET
(Superseded to 11009-2487)

$4.99

$

In Stock, Qty 11

0

11010

Kawasaki 11010-2351-9H

FILTER-ASSY-AIR
(Superseded to 314413-1310B)

$

$

Not available

11012

Kawasaki 11012-2248-9H

CAP,AIR FILTER
(Superseded to 11012-2248)

$

$

Not available

11013

Kawasaki 11013-2010

ELEMENT-AIR FILTER
(Superseded to 315510-1313A)

$

$

Not available

11013A

Kawasaki 49064-2059

ELEMENT-AIR FILTER
(Superseded to 3144AA-1312A)

$

$

Not available

13169

Kawasaki 32099-2021

PLATE
(Superseded to 315510-1311B)

$

$

Not available

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

35011

Kawasaki 35011-2053

STAY
(Superseded to 315501-1351A)

$4.49

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-2086-9Y

MUFFLER-COMP

$

$

Not available

49106

Kawasaki 49106-2287-YM

COVER-MUFFLER

$

$

Not available

49106A

Kawasaki 49106-2401-YM

COVER-MUFFLER

$

$

Not available

49107

Kawasaki 49107-2112-YM

COVER-EXHAUST PIPE

$9.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2051

BOLT
(Superseded to 314413-1316A)

$0.99

$

In Stock, only 3 left!

0

92009

Kawasaki 92009-2101

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

92009B

$0.99

$

In Stock, only 1 left!

0

171

Kawasaki 171G0816

BOLT-STUD
(Superseded to 171BA0816)

$1.99

$

In Stock, only 3 left!

0

311

Kawasaki 311B0800

NUT-HEX
(Superseded to 317AA0800)

$0.99

$

In Stock, Qty 19

0

410

Kawasaki 410B0400

W-PLAIN-S
(Superseded to 410AA0400)

$0.99

$

In Stock, Qty 9

0

410B

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
