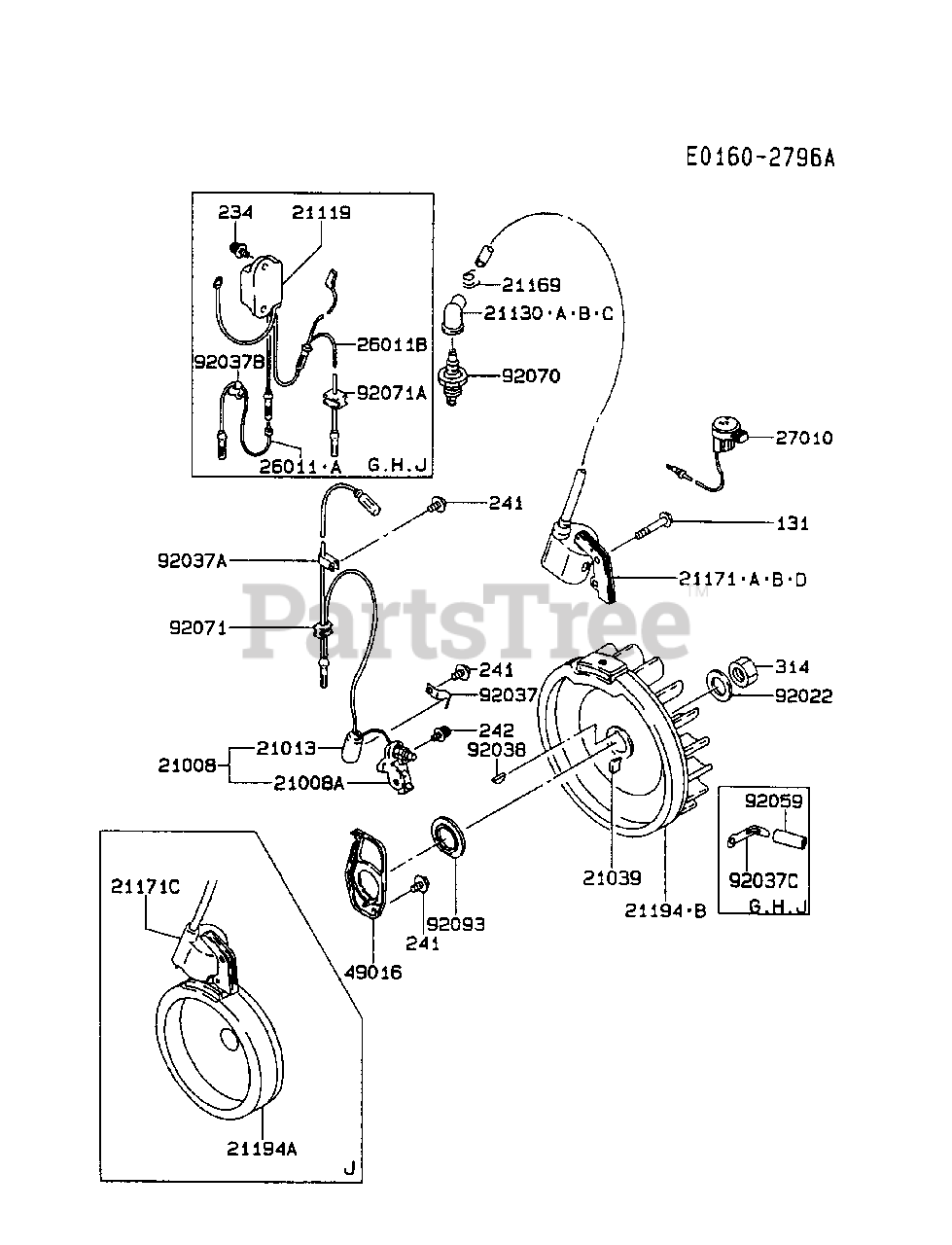

FA210D-FS05 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
21008

Kawasaki 21008-2107

BREAKER,CONTACT

$

$

Not available

21008A

Kawasaki 21008-2113

BREAKER
(Superseded to 21008-2001)

$20.99

$

Usually ships in 2-5 days

0

21013

Kawasaki 21013-2005

CONDENSER
(Superseded to 314401-8436A)

$

$

Not available

21039

Kawasaki 21039-2003

BRUSH
(Superseded to 314401-8142A)

$1.99

$

Usually ships in 2-5 days

0

21130B

Kawasaki 21130-2051

CAP-SPARK PLUG
(Superseded to 21130-2066)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171B

Kawasaki 21171-2120

COIL-ASSY-IGNITION

$

$

Not available

21194B

Kawasaki 21194-2010

FLYWHEEL-COMP

$

$

Not available

27010

Kawasaki 27010-2051

SWITCH
(Superseded to 314401-8511C)

$

$

Not available

49016

Kawasaki 49016-2053

COVER-SEAL
(Superseded to 315501-8172A)

$

$

Not available

92022

$13.99

$

Usually ships in 2-5 days

0

92037

$

$

Not available

92037A

$0.99

$

Usually ships in 2-5 days

0

$2.99

$

In Stock, Qty 14

0

92070

Kawasaki 92070-2051

PLUG-SPARK,BM6A
(Superseded to BM6A)

Note: NGK

$3.49

$

Usually ships in 2-5 days

0

92071

$

$

Not available

92093

Kawasaki 43058-2006

SEAL
(Superseded to 315501-8414A)

$

$

Not available

131

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

241

Kawasaki 241B0408

SCREW-PAN-WP+-
(Superseded to 241AA0408)

$0.99

$

Usually ships in 2-5 days

0

242

Kawasaki 242B0410

SCREW-PAN-WSP+-
(Superseded to 242AA0410)

$4.49

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0
