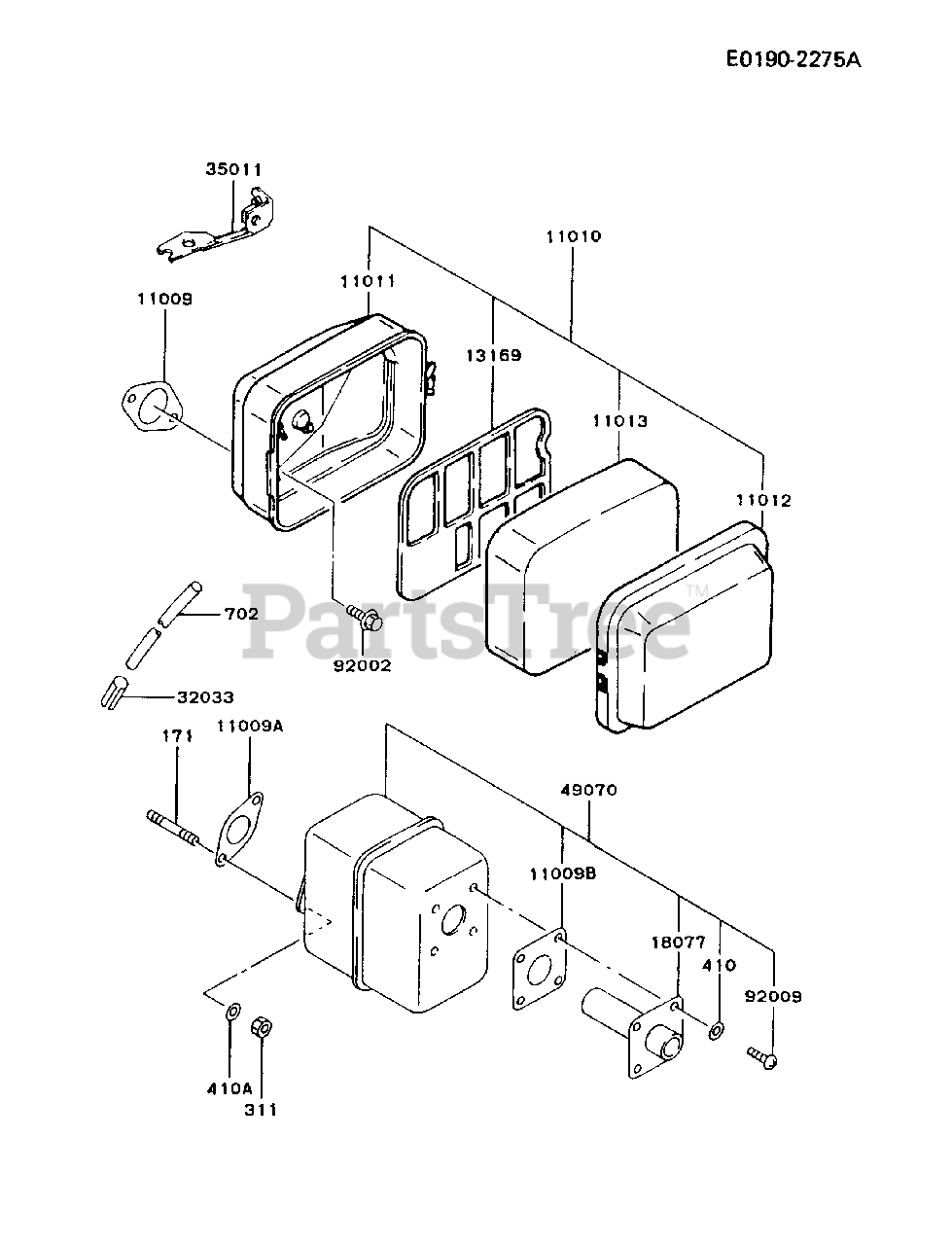

FA210D-CS06 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11009

Kawasaki 11009-2102

GASKET
(Superseded to 314401-1332A)

$0.99

$

In Stock, Qty 5

0

11009A

Kawasaki 11009-2163

GASKET
(Superseded to 11009-2487)

$4.99

$

In Stock, only 1 left!

0

11009B

Kawasaki 11009-2183

GASKET
(Superseded to 11060-2205)

$3.99

$

Usually ships in 2-5 days

0

11010

Kawasaki 11010-2062

FILTER-ASSY-AIR
(Superseded to 315501-1310A)

$

$

Not available

11011

Kawasaki 11011-2052

CASE-AIR FILTER
(Superseded to 315501-1311C)

$

$

Not available

11012

Kawasaki 11012-2102

CAP,AIR FILTER
(Superseded to 315501-1321B)

$

$

Not available

11013

Kawasaki 11013-2052

ELEMENT-AIR FILTER
(Superseded to 315501-1312A)

$

$

Not available

13169

Kawasaki 13169-2124

PLATE
(Superseded to 315501-1313A)

$3.49

$

Usually ships in 2-5 days

0

18077

Kawasaki 18077-2051

ARRESTER-SPARK

$

$

Not available

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

35011

Kawasaki 35011-2057

STAY
(Superseded to 314404-1351A)

$3.49

$

In Stock, only 1 left!

0

49070

Kawasaki 49070-2470-9Z

MUFFLER-COMP

$

$

Not available

92002

Kawasaki 92002-2051

BOLT
(Superseded to 314413-1316A)

$0.99

$

In Stock, only 3 left!

0

92009

Kawasaki 92009-2307

SCREW

$0.99

$

In Stock, only 1 left!

0

171

Kawasaki 171G0816

BOLT-STUD
(Superseded to 171BA0816)

$1.99

$

In Stock, only 3 left!

0

311

Kawasaki 311B0800

NUT-HEX
(Superseded to 317AA0800)

$0.99

$

In Stock, Qty 19

0

410

Kawasaki 410B0400

W-PLAIN-S
(Superseded to 410AA0400)

$0.99

$

In Stock, Qty 9

0

410A

Kawasaki 410B0800

W-PLAIN-S
(Superseded to 410AA0800)

$0.99

$

Usually ships in 2-5 days

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
