FA210D-AS24 - Kawasaki Engine STARTER Parts Diagram

Engine

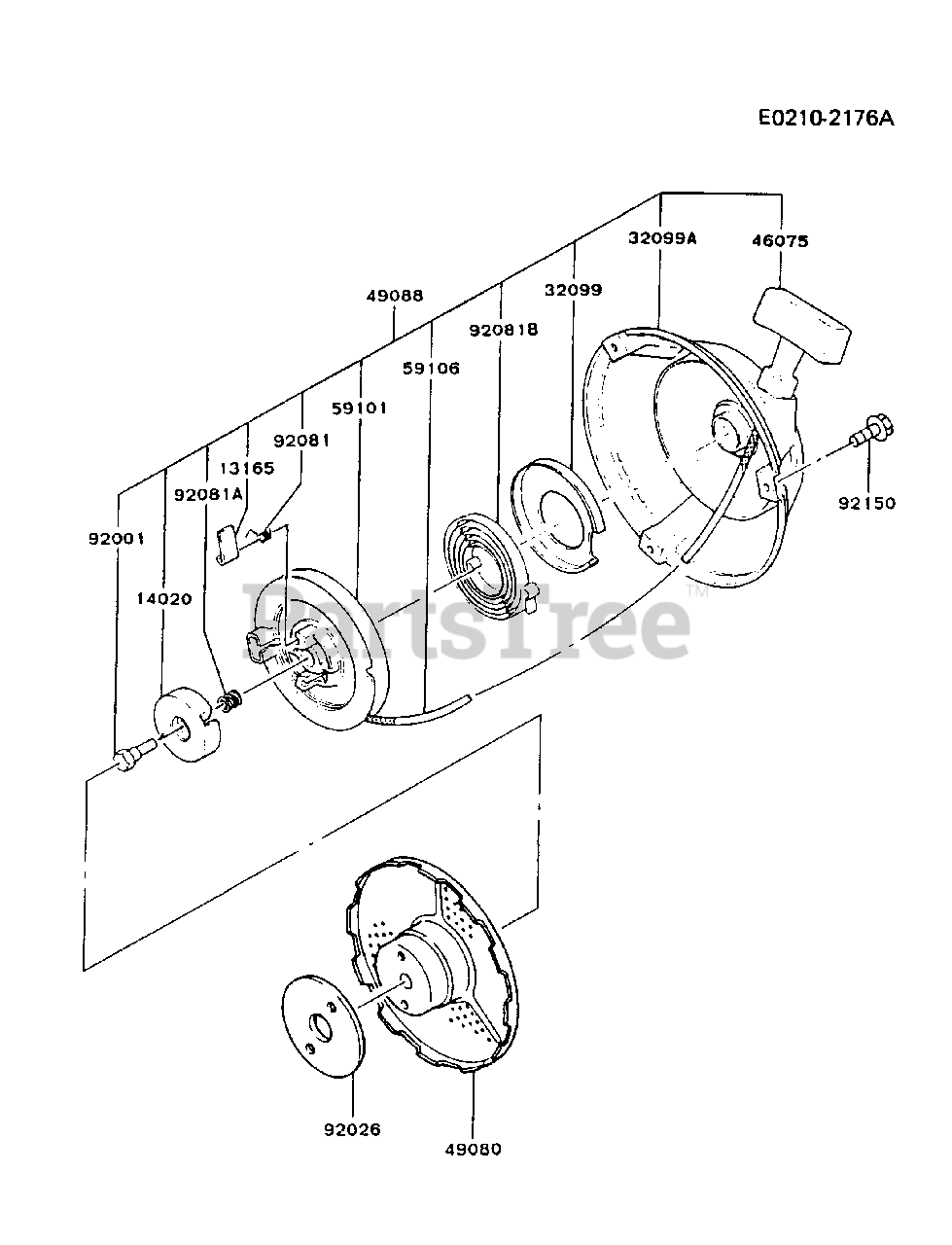

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2003

PAWL
(Superseded to 314401-3445A)

$2.49

$

In Stock, Qty 5

0

14020

Kawasaki 14020-2003

RETAINER
(Superseded to 314401-3449A)

$

$

Not available

32099

Kawasaki 32099-2157

CASE,SPRING

$8.49

$

Usually ships in 2-5 days

0

32099A

Kawasaki 32099-2173-YK

CASE,RECOIL STARTER

$

$

Not available

46075

Kawasaki 46075-2059

GRIP,RECOIL STARTER
(Superseded to 46075-2016)

$7.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2117

PULLEY-STARTING

$

$

Not available

49088

Kawasaki 49088-2360-YK

RECOIL STARTER ASSY

$

$

Not available

59101

Kawasaki 59101-2062

REEL
(Superseded to 314576-3441A)

$

$

Not available

59106

Kawasaki 59106-2106

ROPE,4.5X1320

$

$

Not available

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92026

$

$

Not available

92081

$1.99

$

In Stock, Qty 14

0

92081A

$2.49

$

In Stock, only 4 left!

0

92081B

Kawasaki 92081-2182

SPRING,RECOIL

$13.99

$

Usually ships in 2-5 days

0

92150

$

$

Not available
