FA210D-AS24 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

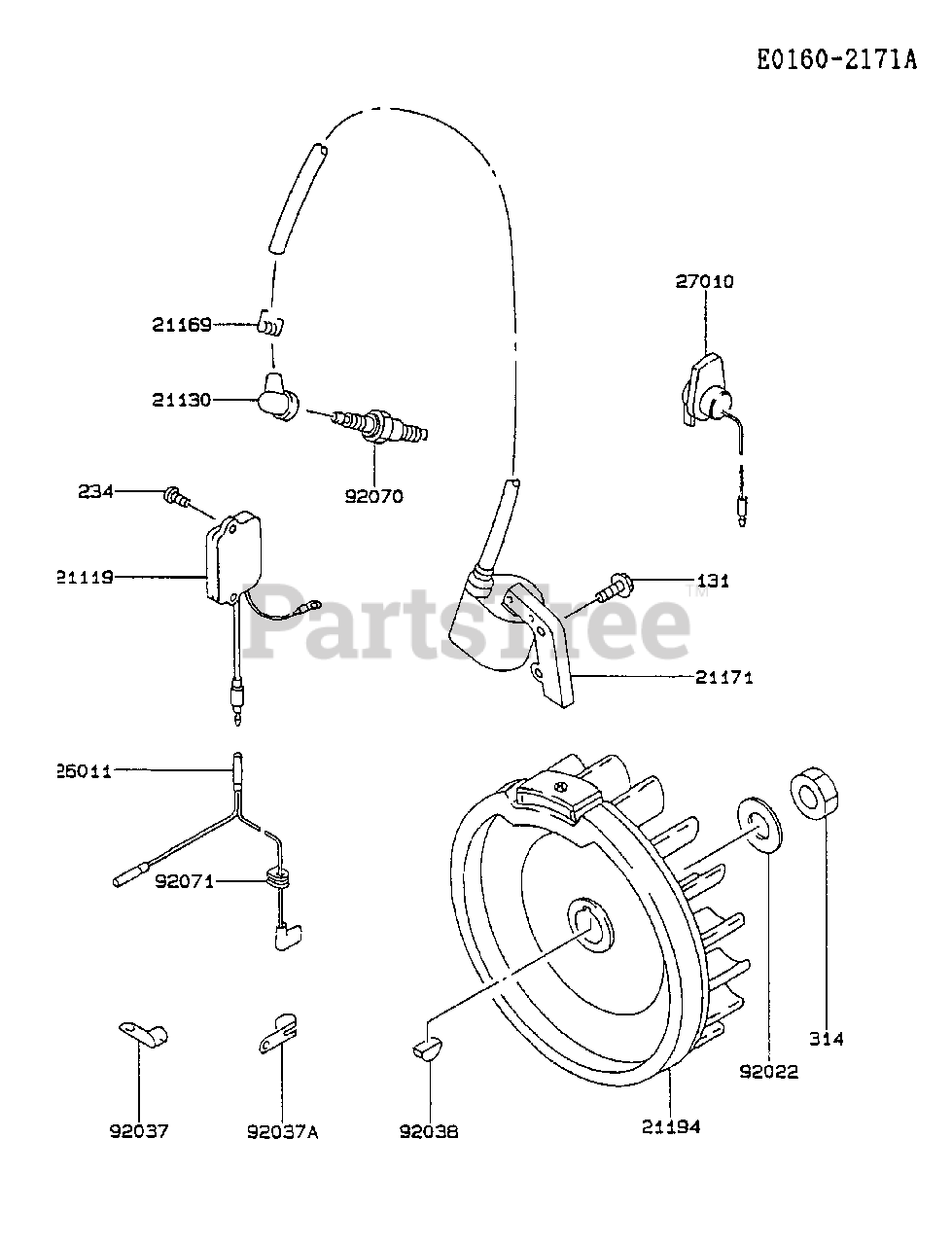

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
21119

Kawasaki 21119-2091

IGNITER
(Superseded to 3144AA-8465A)

$

$

Not available

21130

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171

Kawasaki 21171-2166

COIL-ASSY-IGNITION
(Superseded to 21171-2128)

$77.99

$

In Stock, only 1 left!

0

21194

Kawasaki 21194-2159

FLYWHEEL-COMP

$

$

Not available

26011

$

$

Not available

27010

Kawasaki 27010-2052

SWITCH
(Superseded to 315801-8511A)

$13.99

$

In Stock, only 2 left!

0

92022

$13.99

$

Usually ships in 2-5 days

0

92037

$6.49

$

Usually ships in 2-5 days

0

92037A

$2.99

$

In Stock, only 4 left!

0

$2.99

$

In Stock, Qty 14

0

92070

Kawasaki 92070-2052

PLUG-SPARK,BP4HS
(Superseded to BP4HS)

Note: NGK

$3.49

$

Usually ships in 2-5 days

0

92071

$1.99

$

In Stock, only 4 left!

0

131

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0
