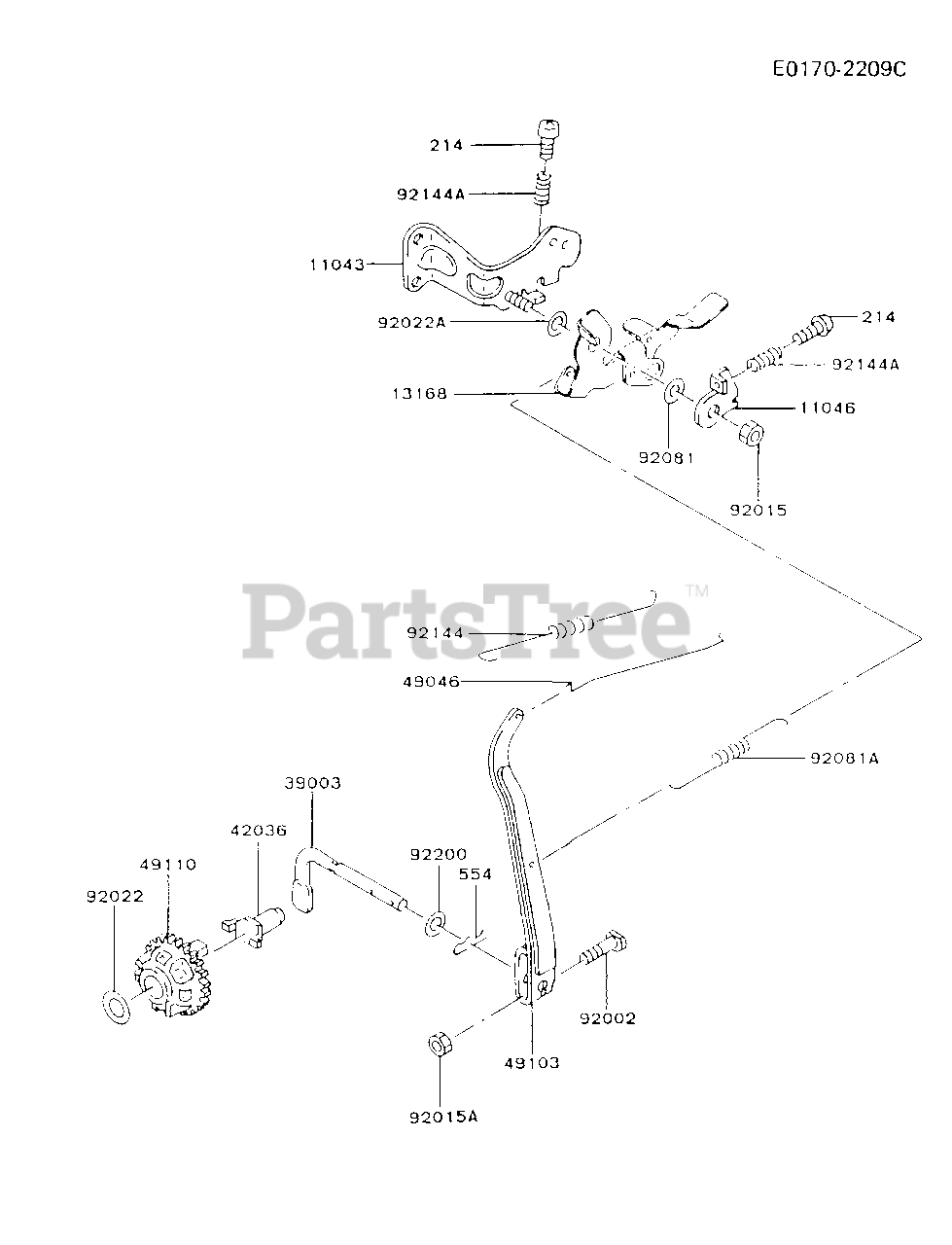

FA210D-AS24 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
11043

Kawasaki 11043-2089

BRACKET
(Superseded to 314472-5335A)

$

$

Not available

11046

$

$

Not available

13168

Kawasaki 13168-2136

LEVER,CONTROL

$

$

Not available

39003

Kawasaki 39003-2069

ARM-PIVOT
(Superseded to 39003-2080)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2092

ROD-GOVERNOR

$

$

Not available

49103

Kawasaki 49103-2063

ARM-GOVERNOR

$

$

Not available

49110

Kawasaki 49110-2051

GOVERNOR-ASSY
(Superseded to 314401-5110A)

$15.99

$

Usually ships in 2-5 days

0

92002

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92015A

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92022A

$1.99

$

In Stock, only 3 left!

0

92081

$0.99

$

In Stock, only 3 left!

0

92081A

$

$

Not available

92144

Kawasaki 92144-2003

SPRING,LINK

$

$

Not available

92144A

$5.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

214

Kawasaki 214B0420

SCREW-PAN+-
(Superseded to 214AA0420)

$0.99

$

In Stock, Qty 10

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
