FA210D-AS23 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

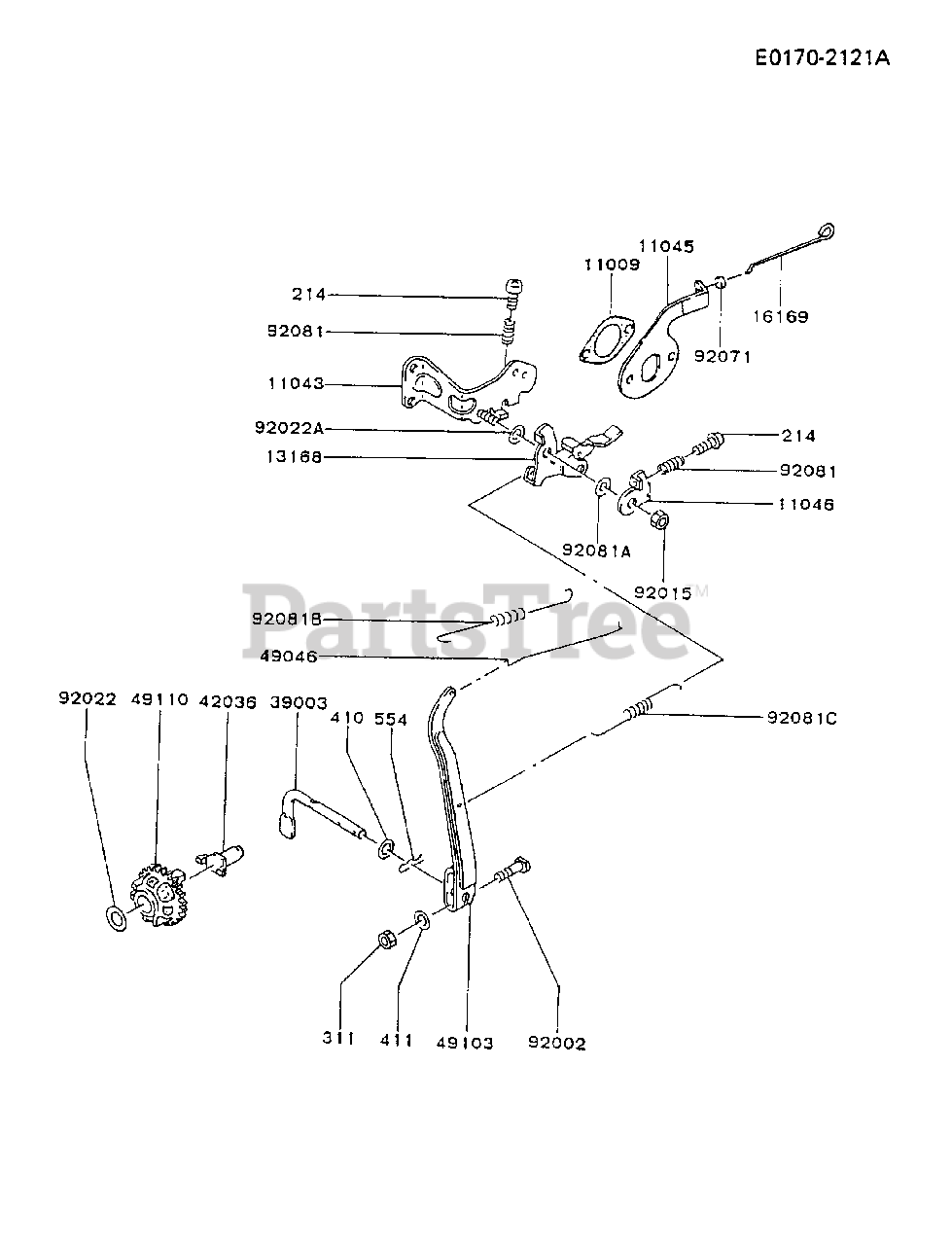

CONTROL-EQUIPMENT Parts Diagram

  • Title
11009

Kawasaki 11009-2139

GASKET
(Superseded to 11060-2024)

$1.49

$

Usually ships in 2-5 days

0

11043

Kawasaki 11043-2089

BRACKET
(Superseded to 314472-5335A)

$

$

Not available

11045

$

$

Not available

11046

$

$

Not available

13168

Kawasaki 13168-2136

LEVER,CONTROL

$

$

Not available

16169

Kawasaki 16169-2052

LINK-CHOKE

$1.99

$

In Stock, only 3 left!

0

39003

Kawasaki 39003-2052

ARM-PIVOT
(Superseded to 39003-2069)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2071

ROD-GOVERNOR
(Superseded to 315590-5231A)

$6.99

$

Usually ships in 2-5 days

0

49103

Kawasaki 49103-2063

ARM-GOVERNOR

$

$

Not available

49110

Kawasaki 49110-2051

GOVERNOR-ASSY
(Superseded to 314401-5110A)

$15.99

$

Usually ships in 2-5 days

0

92002

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-2051

NUT
(Superseded to 920151339)

$1.99

$

In Stock, only 1 left!

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92022A

$1.99

$

In Stock, only 3 left!

0

92071

Kawasaki 92071-2102

GROMMET
(Superseded to 92071-2126)

$1.99

$

In Stock, only 1 left!

0

92081

Kawasaki 92081-2103

SPRING
(Superseded to 92144-2266)

$5.49

$

Usually ships in 2-5 days

0

92081A

$0.99

$

In Stock, only 3 left!

0

92081B

$2.49

$

In Stock, only 4 left!

0

92081C

$

$

Not available

214

Kawasaki 214B0420

SCREW-PAN+-
(Superseded to 214AA0420)

$0.99

$

In Stock, Qty 10

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
