FA210D-AS22 - Kawasaki Engine STARTER Parts Diagram

Engine

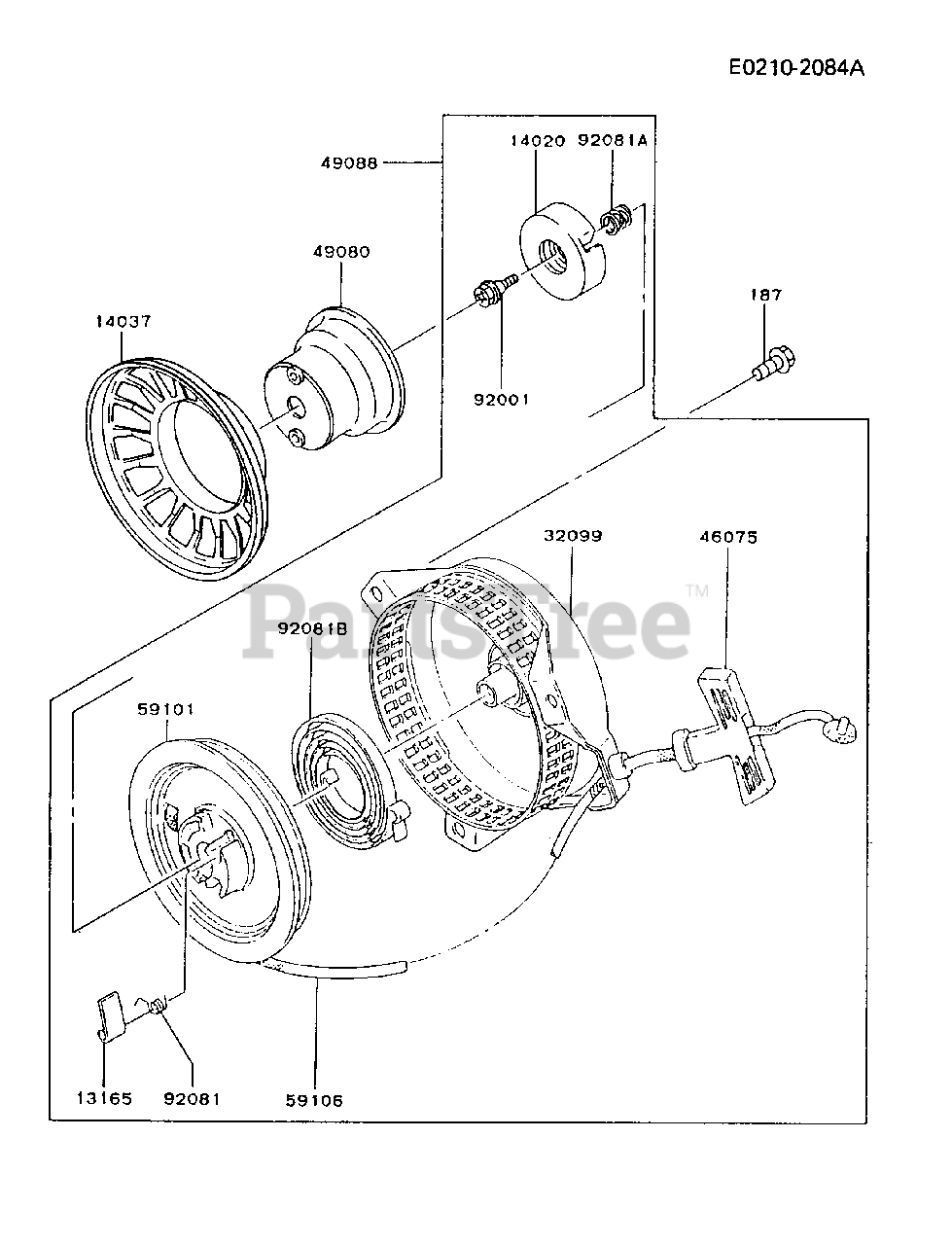

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2003

PAWL
(Superseded to 314401-3445A)

$2.49

$

In Stock, only 3 left!

0

14020

Kawasaki 14020-2003

RETAINER
(Superseded to 314401-3449A)

$

$

Not available

14037

$

$

Not available

32099

Kawasaki 32099-2150-YK

CASE,RECOIL STARTER

$

$

Not available

46075

Kawasaki 46075-2016

GRIP
(Superseded to 46075-2059)

$7.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2140

PULLEY-STARTING
(Superseded to 49080-2165)

$

$

Not available

49088

Kawasaki 49088-2284-YK

STARTER-RECOIL
(Superseded to 49088-2320-YK)

$

$

Not available

59101

Kawasaki 59101-2063

REEL
(Superseded to 59101-2076)

$18.99

$

Usually ships in 2-5 days

0

59106

Kawasaki 59106-2061

ROPE,4.5X1520
(Superseded to 315501-3453A)

$9.49

$

Usually ships in 2-5 days

0

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92081

$1.99

$

In Stock, Qty 12

0

92081A

$2.49

$

In Stock, only 4 left!

0

92081B

$14.99

$

Usually ships in 2-5 days

0

187

Kawasaki 187B0610

BOLT-UPSET-WSP

$

$

Not available
