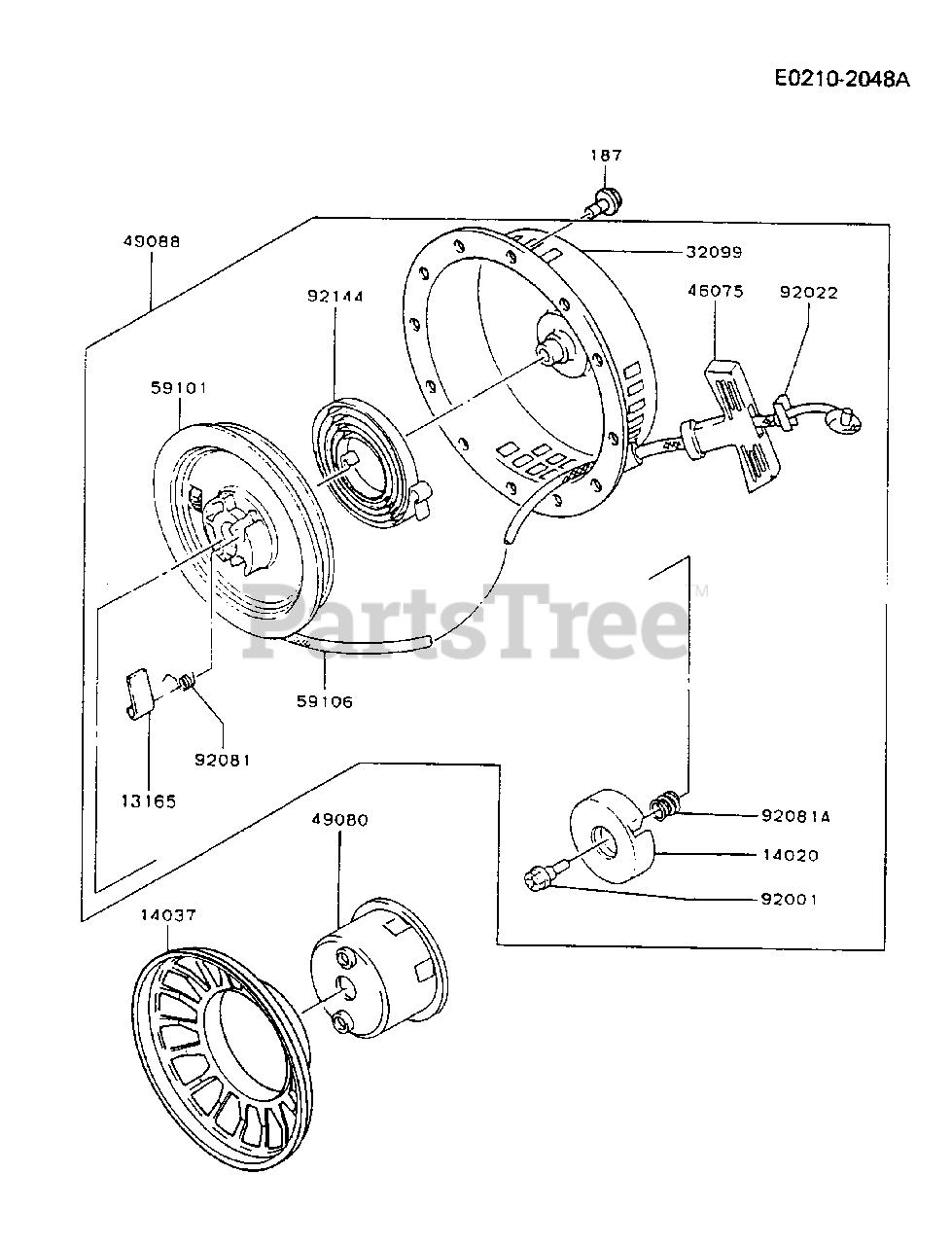

FA130R-FS00 - Kawasaki Engine STARTER Parts Diagram

Engine

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2003

PAWL
(Superseded to 314401-3445A)

$2.49

$

In Stock, Qty 5

0

14020

Kawasaki 14020-2003

RETAINER
(Superseded to 314401-3449A)

$

$

Not available

14037

$

$

Not available

32099

Kawasaki 32099-2151-YK

CASE,RECOIL STARTER

$

$

Not available

46075

Kawasaki 46075-2059

GRIP,RECOIL STARTER
(Superseded to 46075-2016)

$7.49

$

Usually ships in 2-5 days

0

49080

Kawasaki 49080-2141

PULLEY-STARTING

$

$

Not available

49088

Kawasaki 49088-2321-YK

STARTER-RECOIL
(Superseded to 59116-2065)

$

$

Not available

59101

Kawasaki 59101-2077

REEL,RECOIL STARTER

$

$

Not available

59106

Kawasaki 59106-2098

ROPE,4X1350

$

$

Not available

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92022

$1.99

$

In Stock, only 4 left!

0

92081

$1.99

$

In Stock, Qty 14

0

92081A

$2.49

$

In Stock, only 4 left!

0

92144

Kawasaki 92144-2055

SPRING,RECOIL

$14.99

$

In Stock, only 1 left!

0

187

Kawasaki 187B0610

BOLT-UPSET-WSP

$

$

Not available
