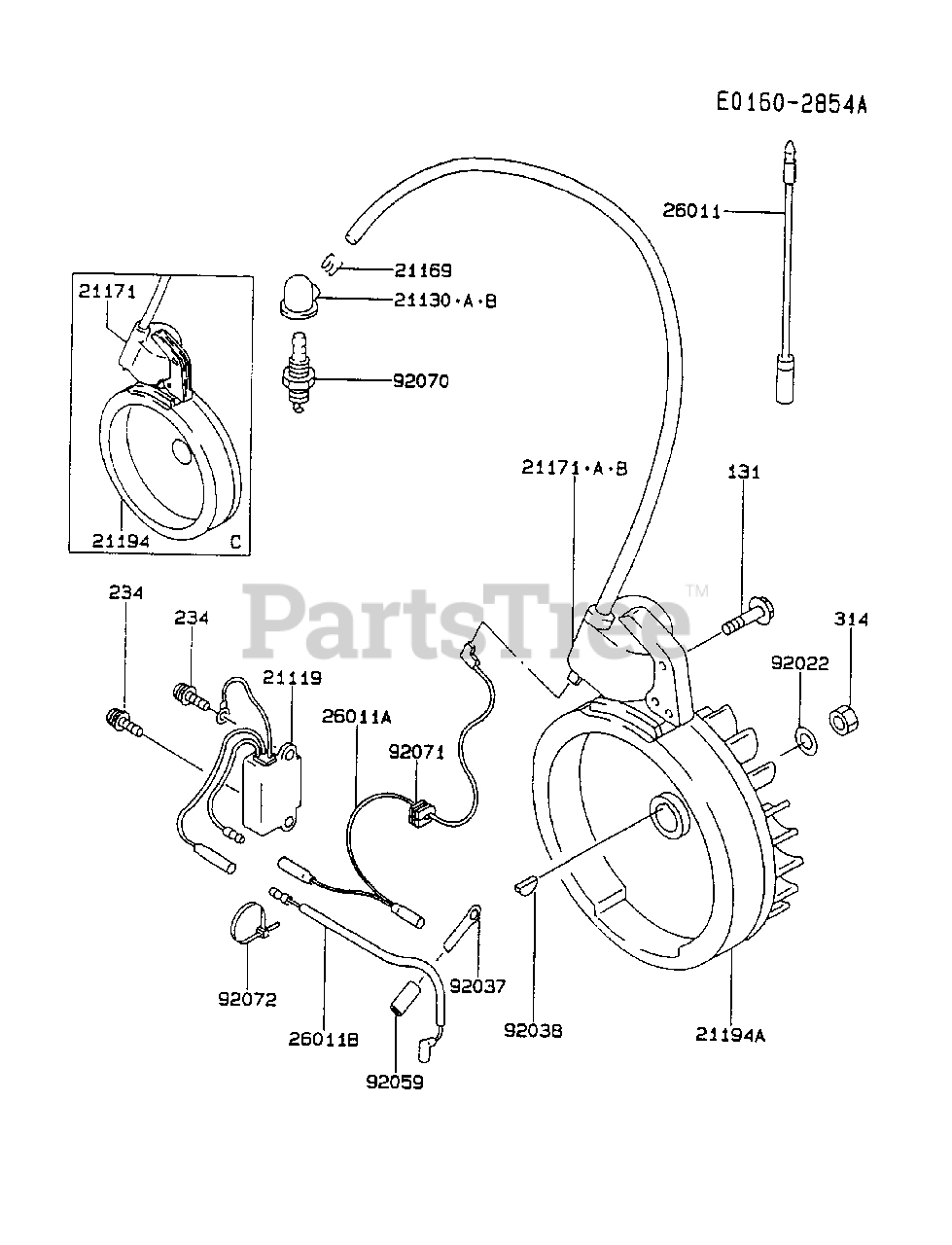

FA130D-CS20 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
21119

$

$

Not available

21130

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171A

Kawasaki 21171-2168

COIL-ASSY-IGNITION
(Superseded to 21171-2114)

$

$

Not available

21194

Kawasaki 21194-2277

FLYWHEEL-COMP

$

$

Not available

26011

$

$

Not available

26011A

$

$

Not available

26011B

$

$

Not available

92022

$13.99

$

Usually ships in 2-5 days

0

92037

$

$

Not available

$2.99

$

In Stock, Qty 14

0

92059

Kawasaki 92059-2156

TUBE,5X6X35

$0.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2060

PLUG-SPARK,BMR6A
(Superseded to BMR6A)

$3.49

$

In Stock, Qty 5

0

92071

$1.99

$

In Stock, only 4 left!

0

92072

Kawasaki 92072-2003

BAND
(Superseded to 92037-1173)

$3.99

$

Usually ships in 2-5 days

0

131

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

314

Kawasaki 314G1400

NUT-HEX-FINE
(Superseded to 314G1400A)

$1.49

$

In Stock, Qty 7

0
