FA130D-CS15 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

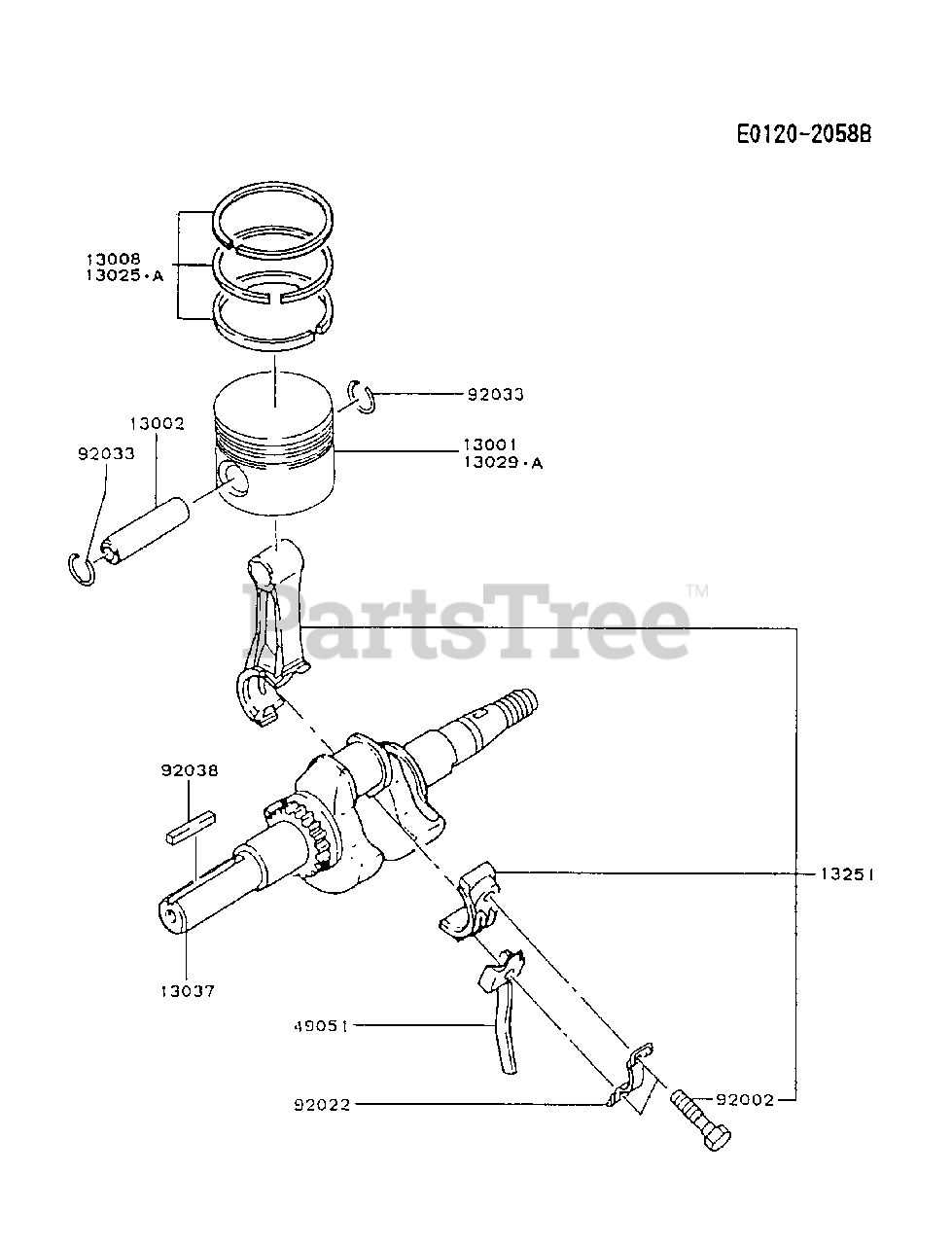

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-2051

PISTON-ENGINE
(Superseded to 314401-3111A)

$36.99

$

Usually ships in 2-5 days

0

13002

Kawasaki 13002-2071

PIN-PISTON
(Superseded to 13002-2081)

$

$

Not available

13008

Kawasaki 13008-6043

RING-SET-PISTON
(Superseded to 314401-3010A)

$

$

Not available

13025

Kawasaki 13025-2051

RING-SET-PISTON L,0.25
(Superseded to 314400-3020A)

$

$

Not available

13025A

Kawasaki 13025-2052

RING-SET-PISTON L,0.50
(Superseded to 314400-3030A)

$

$

Not available

13029

Kawasaki 13029-2051

PISTON-ENGINE L,0.25
(Superseded to 314400-3131A)

$

$

Not available

13029A

Kawasaki 13029-2052

PISTON-ENGINE L,0.50
(Superseded to 314400-3132A)

$

$

Not available

13037

Kawasaki 13037-2076

CRANKSHAFT

$

$

Not available

13251

Kawasaki 13251-6017

ROD-ASSY-CONNECTING
(Superseded to 314401-3240A)

$

$

Not available

49051

Kawasaki 49051-2051

SPLASHER
(Superseded to 314401-3249C)

$2.99

$

In Stock, only 1 left!

0

92002

Kawasaki 92002-2052

BOLT
(Superseded to 314401-3245A)

$1.99

$

In Stock, Qty 5

0

92022

$1.49

$

In Stock, only 4 left!

0

92033

$0.99

$

In Stock, only 2 left!

0

$4.99

$

Usually ships in 2-5 days

0
