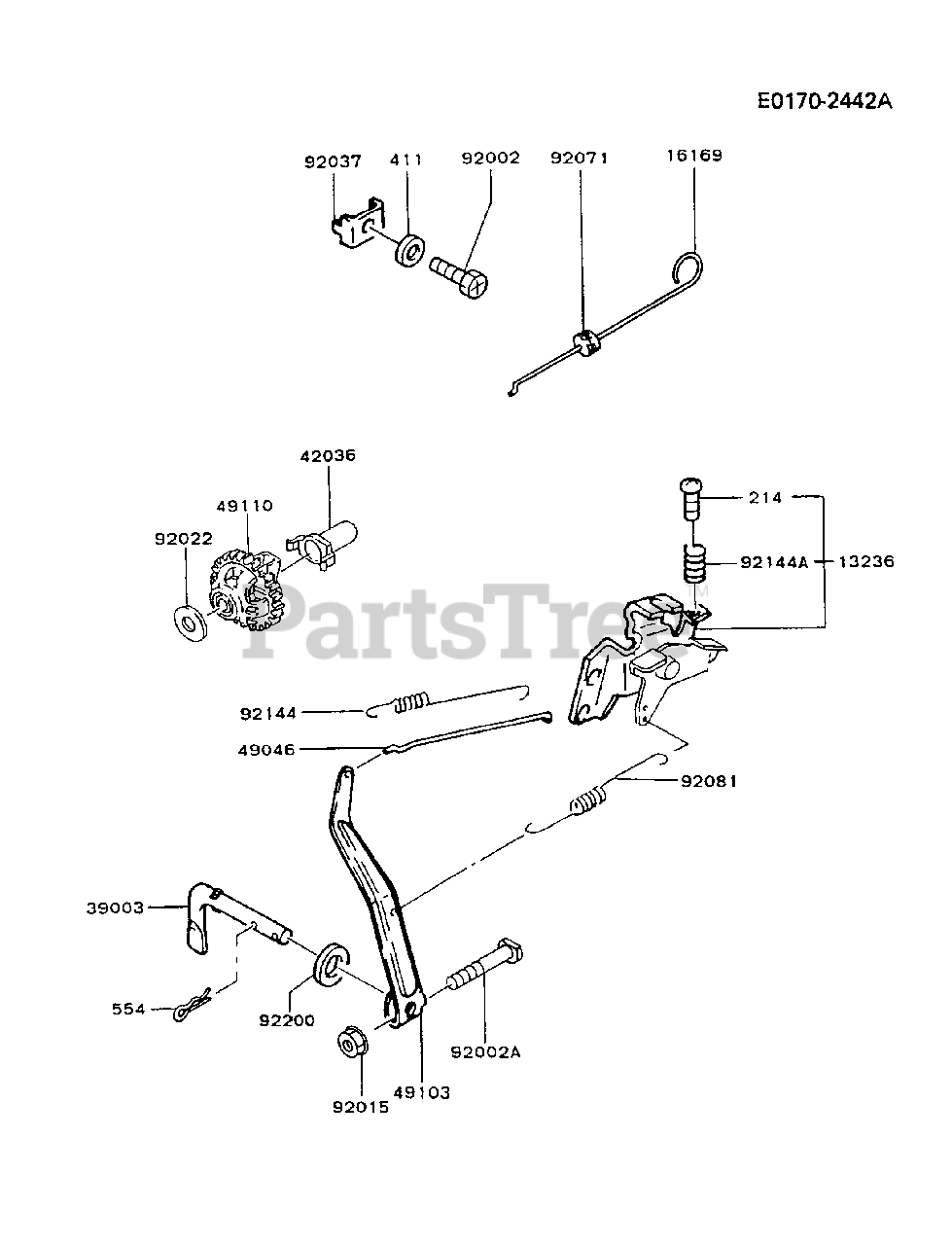

FA130D-CS15 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
16169

Kawasaki 16169-2099

LINK-CHOKE
(Superseded to 314511-5513A)

$3.49

$

In Stock, only 1 left!

0

39003

Kawasaki 39003-2068

ARM-PIVOT
(Superseded to 39003-2051)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

49046

Kawasaki 49046-2062

ROD-GOVERNOR
(Superseded to 314412-5231A)

$1.99

$

In Stock, only 1 left!

0

49103

Kawasaki 49103-2051

ARM-GOVERNOR
(Superseded to 314401-5210C)

$

$

Not available

49110

Kawasaki 49110-2051

GOVERNOR-ASSY
(Superseded to 314401-5110A)

$15.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2087

BOLT
(Superseded to 315501-5381A)

$0.99

$

In Stock, only 4 left!

0

92002A

$1.99

$

In Stock, Qty 6

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92037

$1.99

$

Usually ships in 2-5 days

0

92071

Kawasaki 92071-2102

GROMMET
(Superseded to 92071-2126)

$1.99

$

In Stock, only 1 left!

0

92081

$2.99

$

In Stock, only 3 left!

0

92144

$

$

Not available

92144A

$5.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

214

Kawasaki 214B0420

SCREW-PAN+-
(Superseded to 214AA0420)

$0.99

$

In Stock, Qty 10

0

411

Kawasaki 411B0500

WASHER-PLAIN
(Superseded to 410AA0500)

$0.99

$

In Stock, Qty 9

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0

13236

Kawasaki 13236-2006

LEVER-COMP
(Superseded to 13236-2111)

$

$

Not available
