FA130D-BS15 - Kawasaki Engine VALVE/CAMSHAFT Parts Diagram

Engine

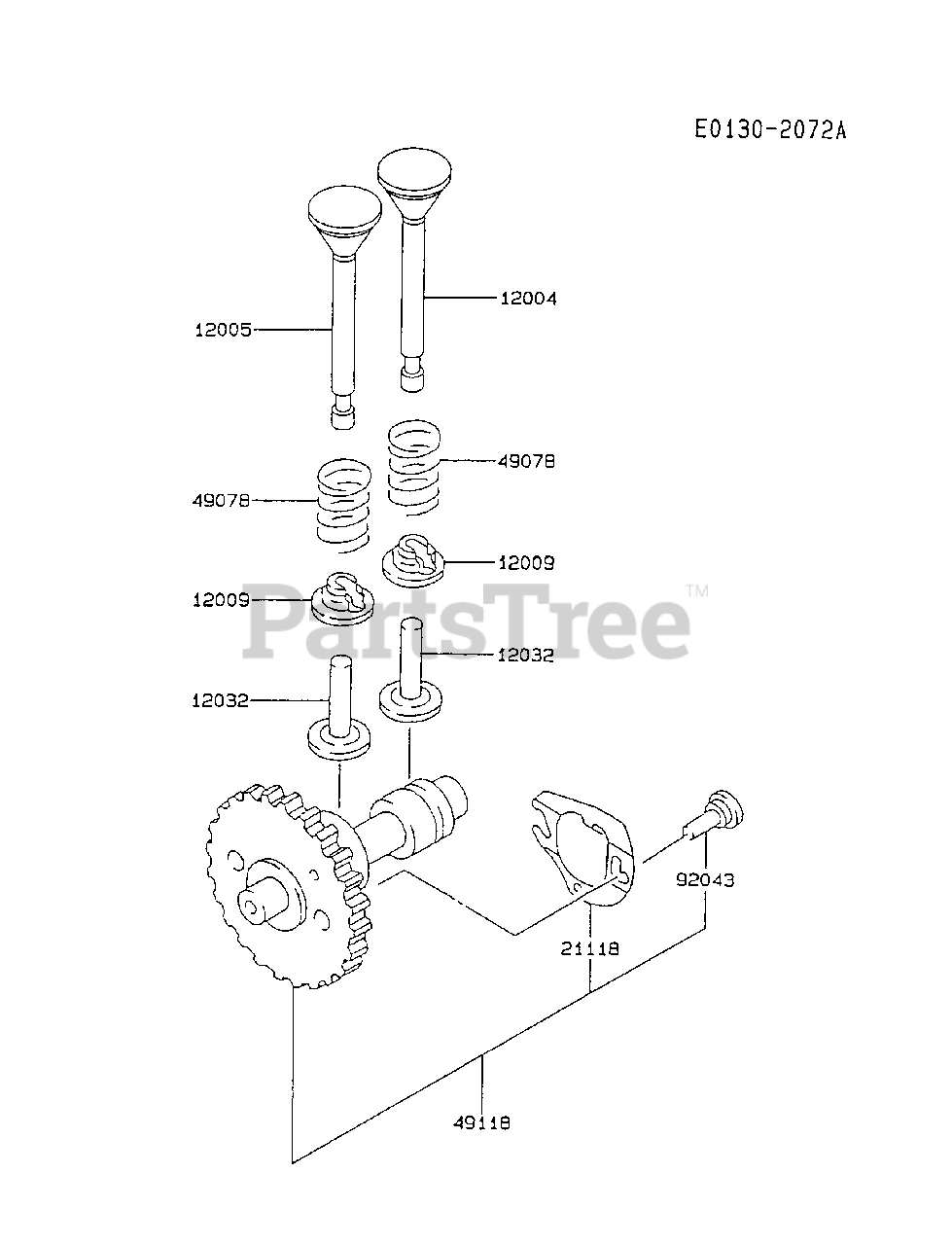

VALVE/CAMSHAFT Parts Diagram

  • Title
12004

Kawasaki 12004-2051

VALVE-INTAKE
(Superseded to 314400-2111A)

$

$

Not available

12005

Kawasaki 12005-2051

VALVE-EXHAUST
(Superseded to 314401-2112A)

$24.99

$

Usually ships in 2-5 days

0

12009

Kawasaki 12009-2005

RETAINER-VALVE SPRING
(Superseded to 314401-2116B)

$

$

Not available

12032

Kawasaki 12032-2063

TAPPET
(Superseded to 12032-2051)

$

$

Not available

21118

Kawasaki 21118-2051

DECOMPRESSOR

$

$

Not available

49078

Kawasaki 49078-2051

SPRING-ENGINE VALVE
(Superseded to 49078-2081)

$1.99

$

In Stock, Qty 5

0

49118

Kawasaki 49118-2051

CAMSHAFT-COMP

$

$

Not available

$

$

Not available
