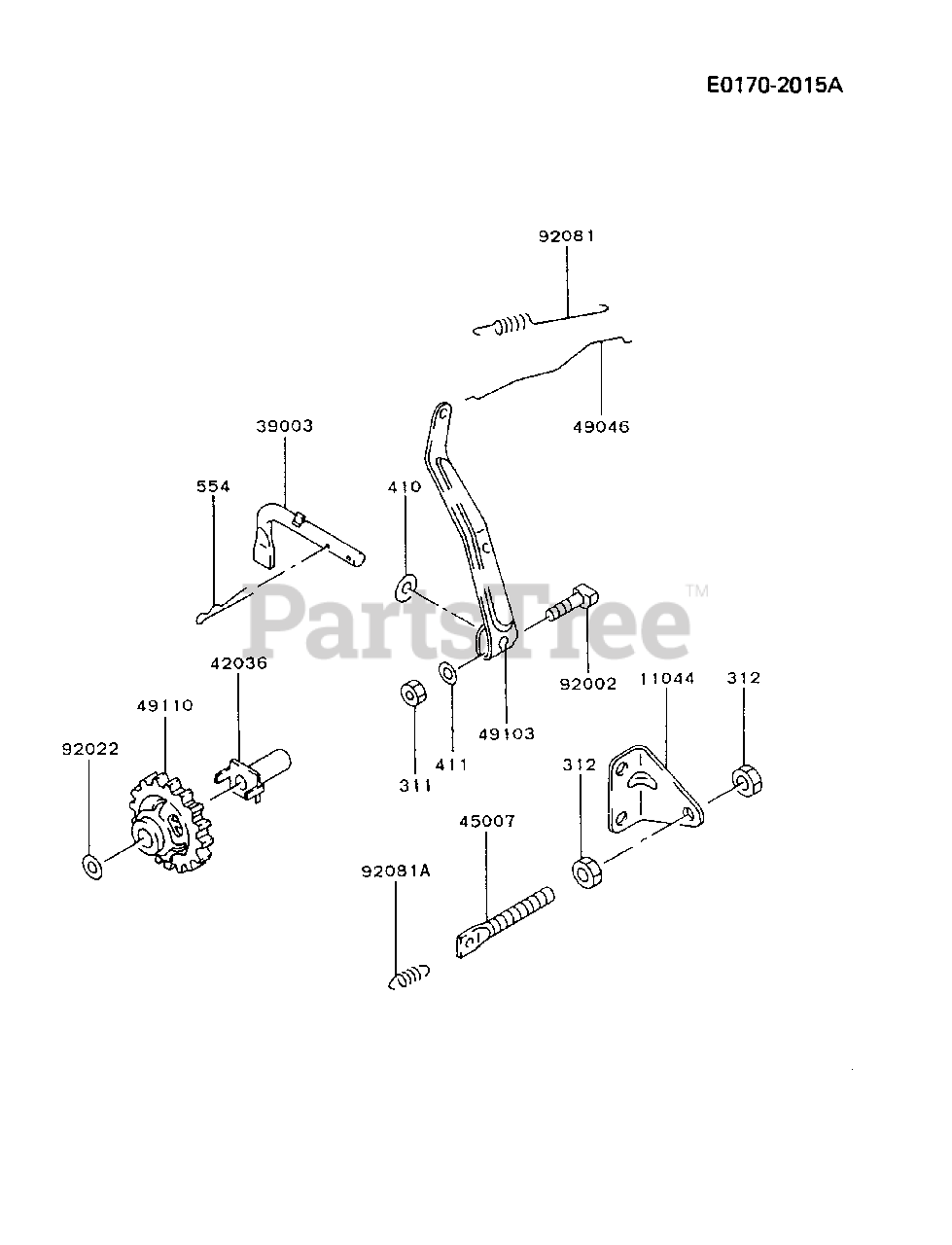

FA130D-BS10 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

CONTROL-EQUIPMENT Parts Diagram

  • Title
11044

$

$

Not available

39003

Kawasaki 39003-2051

ARM-PIVOT
(Superseded to 39003-2068)

$

$

Not available

42036

Kawasaki 42036-2051

SLEEVE
(Superseded to 42036-2005)

$

$

Not available

45007

Kawasaki 45007-2051

ADJUSTER-SPRING

$

$

Not available

49046

Kawasaki 49046-2072

ROD-GOVERNOR
(Superseded to 315592-5231A)

$

$

Not available

49103

Kawasaki 49103-2061

ARM-GOVERNOR

$

$

Not available

49110

Kawasaki 49110-2051

GOVERNOR-ASSY
(Superseded to 314401-5110A)

$15.99

$

Usually ships in 2-5 days

0

92002

$1.99

$

In Stock, Qty 6

0

92022

Kawasaki 92022-2019

WASHER
(Superseded to 92200-2036)

$1.49

$

In Stock, Qty 12

0

92081

$8.49

$

Usually ships in 2-5 days

0

92081A

Kawasaki 92081-2302

SPRING,GOVERNOR

$

$

Not available

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

312

Kawasaki 312B0600

NUT-HEX
(Superseded to 312AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
