FA130D-BS10 - Kawasaki Engine CARBURETOR Parts Diagram

Engine

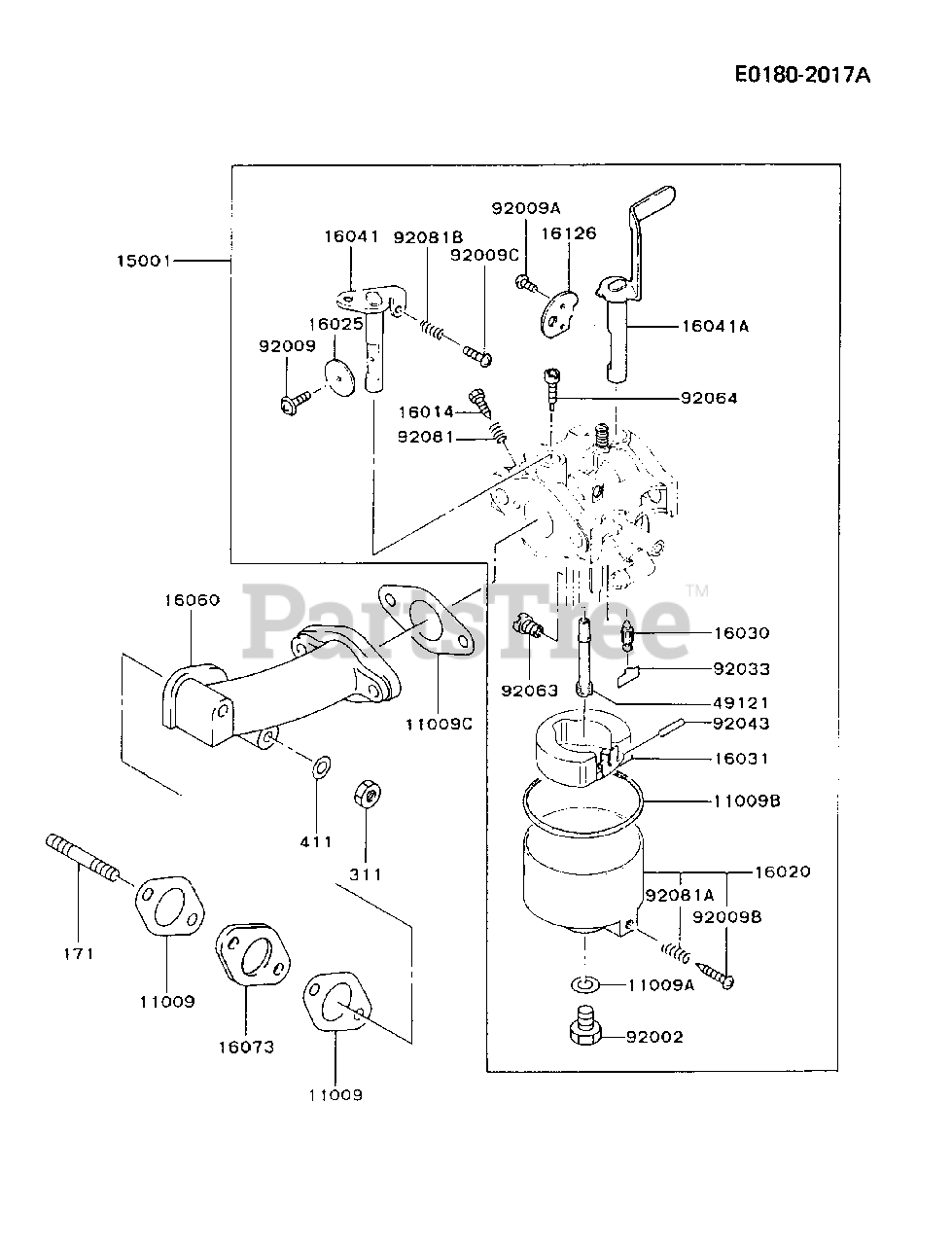

CARBURETOR Parts Diagram

  • Title
11009

Kawasaki 11009-2104

GASKET
(Superseded to 11060-2033)

$1.49

$

In Stock, only 3 left!

0

11009A

Kawasaki 11009-2036

GASKET
(Superseded to 314499-6159A)

$1.49

$

In Stock, only 3 left!

0

11009B

Kawasaki 11009-2037

GASKET
(Superseded to 314598-6128A)

$6.49

$

In Stock, Qty 5

0

11009C

Kawasaki 11009-2142

GASKET
(Superseded to 11060-2051)

$1.99

$

In Stock, Qty 7

0

15001

Kawasaki 15001-2409

CARBURETOR-ASSY

$

$

Not available

16014

Kawasaki 16014-2011

SCREW-PILOT AIR
(Superseded to 3145V1-6114A)

$

$

Not available

16020

Kawasaki 16020-2052

CHAMBER-FLOAT
(Superseded to 314576-6130A)

$

$

Not available

16025

Kawasaki 16025-2065

VALVE-THROTTLE,#130
(Superseded to 312750-6101A)

$

$

Not available

16030

Kawasaki 16030-2016

VALVE-FLOAT
(Superseded to 314595-6122A)

$22.99

$

Usually ships in 2-5 days

0

16031

Kawasaki 16031-2004

FLOAT
(Superseded to 314595-6126A)

$

$

Not available

16041

Kawasaki 16041-2133

SHAFT-CARBURETOR,THROTTLE

$

$

Not available

16041A

Kawasaki 16041-2073

SHAFT-CARBURETOR
(Superseded to 315592-6142A)

$

$

Not available

16060

Kawasaki 16060-2115

PIPE-INTAKE

$

$

Not available

16073

Kawasaki 16073-2051

INSULATOR
(Superseded to 314401-6181A)

$2.49

$

In Stock, only 2 left!

0

16126

$

$

Not available

49121

Kawasaki 49121-2066

NOZZLE-MAIN,#2A
(Superseded to 314596-6129A)

$

$

Not available

92002

Kawasaki 92001-2028

BOLT
(Superseded to 92002-2309)

$

$

Not available

92009

Kawasaki 92009-2024

SCREW
(Superseded to 92009-2378)

$1.99

$

Usually ships in 2-5 days

0

92009A

Kawasaki 92009-2081

SCREW
(Superseded to 92009-2026)

$1.99

$

In Stock, only 1 left!

0

92009B

Kawasaki 92009-2015

SCREW
(Superseded to 315470-6133A)

$5.49

$

Usually ships in 2-5 days

0

92009C

$0.99

$

In Stock, only 4 left!

0

92033

$

$

Not available

$3.49

$

In Stock, only 1 left!

0

92063

Kawasaki 92063-2002

JET-MAIN,#75

$

$

Not available

92064

Kawasaki 92064-2007

JET-PILOT,#35

$16.99

$

Usually ships in 2-5 days

0

92081

$2.99

$

In Stock, only 3 left!

0

92081A

$3.49

$

In Stock, only 3 left!

0

92081B

$

$

Not available

171

Kawasaki 171G0640

BOLT-STUD
(Superseded to 171BA0640)

$1.49

$

In Stock, only 3 left!

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 16

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, only 2 left!

0
