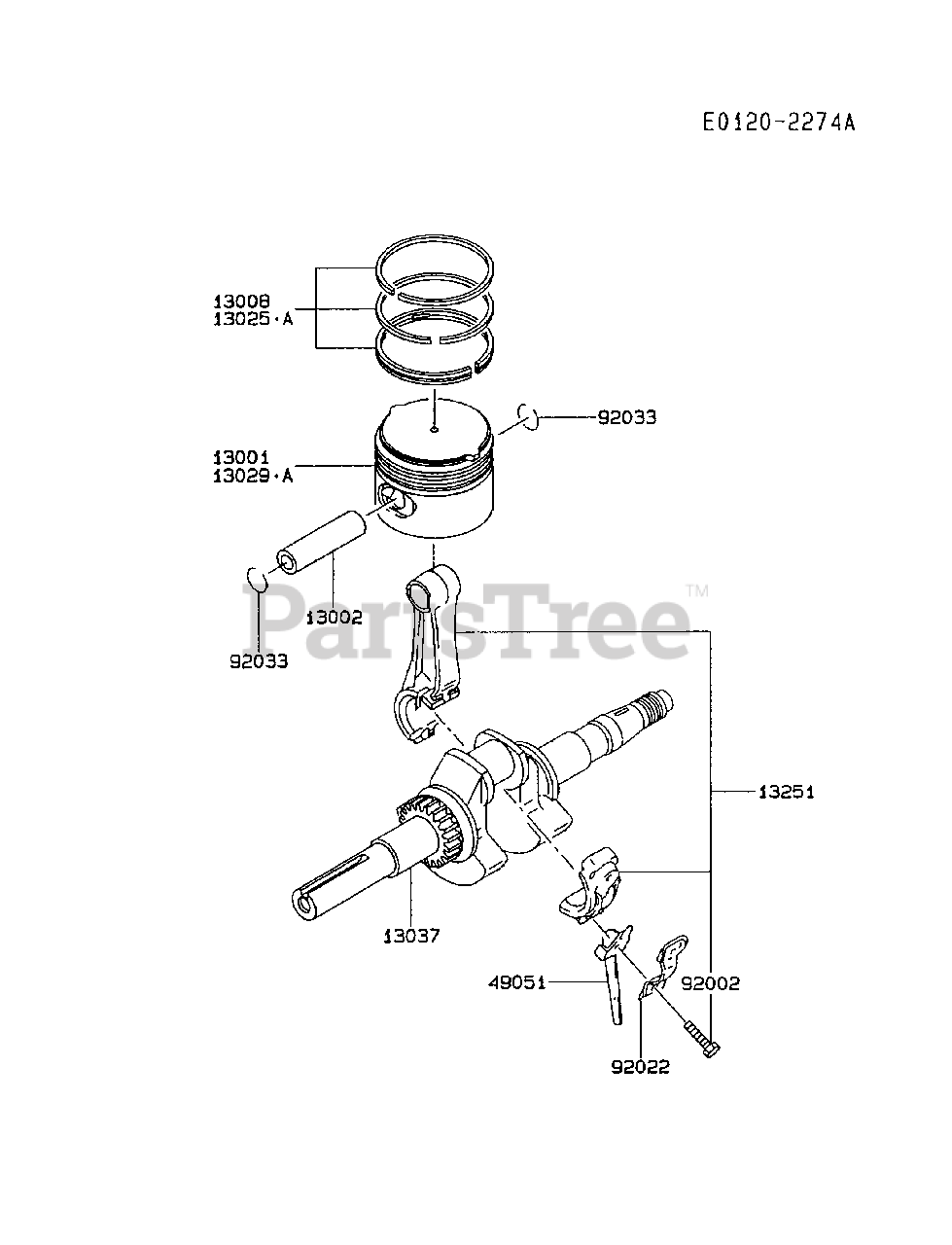

FA076D-ES04 - Kawasaki Engine PISTON/CRANKSHAFT Parts Diagram

Engine

PISTON/CRANKSHAFT Parts Diagram

  • Title
13001

Kawasaki 13001-2005

PISTON-ENGINE

$

$

Not available

13002

Kawasaki 13002-2005

PIN-PISTON
(Superseded to 314501-3121A)

$

$

Not available

13008

Kawasaki 13008-2010

RING-SET-PISTON
(Superseded to 13008-2005)

$29.99

$

Usually ships in 2-5 days

0

13025

Kawasaki 13025-2009

RING-SET-PISTON L,0.25

$

$

Not available

13025A

Kawasaki 13025-2010

RING-SET-PISTON L,0.50

$

$

Not available

13029

Kawasaki 13029-2009

PISTON-ENGINE L,0.25
(Superseded to 314500-3131A)

$

$

Not available

13029A

Kawasaki 13029-2010

PISTON-ENGINE L,0.50

$

$

Not available

13037

Kawasaki 13037-2067

CRANKSHAFT

$

$

Not available

13251

Kawasaki 13251-2005

ROD-ASSY-CONNECTING

$

$

Not available

49051

Kawasaki 49051-2001

SPLASHER
(Superseded to 314501-3249A)

$3.49

$

Usually ships in 2-5 days

0

92002

$

$

Not available

92022

$0.99

$

In Stock, Qty 5

0

92033

$

$

Not available
