FA076D-ES04 - Kawasaki Engine CYLINDER/CRANKCASE Parts Diagram

Engine

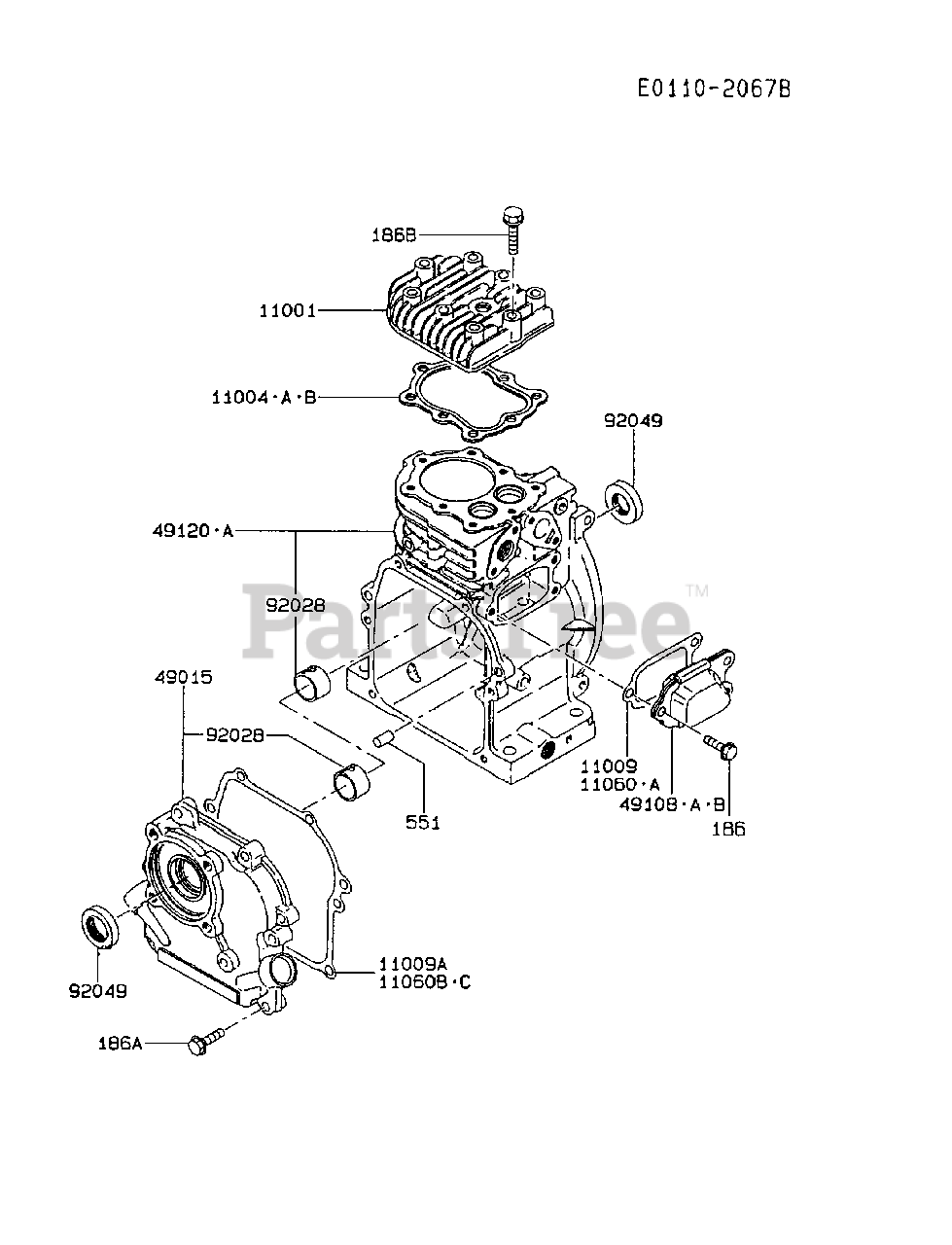

CYLINDER/CRANKCASE Parts Diagram

  • Title

11001

Kawasaki 11001-2065

HEAD-CYLINDER

$

$

Not available

11004A

Kawasaki 11004-2115

GASKET-HEAD
(Superseded to 11004-2007)

$

$

Not available

11004B

Kawasaki 11004-2007

GASKET-HEAD
(Superseded to 11004-2115)

$

$

Not available

11009

Kawasaki 11009-2029

GASKET
(Superseded to 11060-2101)

$

$

Not available

11009A

Kawasaki 11009-2030

GASKET
(Superseded to 11060-2102)

$

$

Not available

11060A

Kawasaki 11060-2101

GASKET,CHAMBER COVER
(Superseded to 11009-2029)

$

$

Not available

11060C

Kawasaki 11060-2102

GASKET,CRANKCASE COVER
(Superseded to 11009-2030)

$

$

Not available

49015

Kawasaki 49015-6034

COVER-CRANKCASE

$

$

Not available

49108

Kawasaki 49108-2072

COVER-VALVE CHAMBER
(Superseded to 49108-2090)

$

$

Not available

49108B

Kawasaki 49108-2090

COVER-VALVE CHAMBER
(Superseded to 49108-2005)

$

$

Not available

49120A

Kawasaki 49120-6030

CRANKCASE-COMP

$

$

Not available

92028

Kawasaki 92028-2016

BUSHING

$

$

Not available

92049

Kawasaki 92049-2008

SEAL-OIL

$

$

Not available

186

Kawasaki 186B0612

BOLT-UPSET-WP
(Superseded to 186AA0612)

$

$

Not available

186A

Kawasaki 186B0622

BOLT-UPSET-WP
(Superseded to 186AA0622)

$

$

Not available

186B

Kawasaki 186G0640

BOLT-UPSET-WP
(Superseded to 186BA0640)

$

$

Not available

551

Kawasaki 551A0612

PIN-DOWEL

$0.99

$

Usually ships in 2-5 days
