FA076D-ES04 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

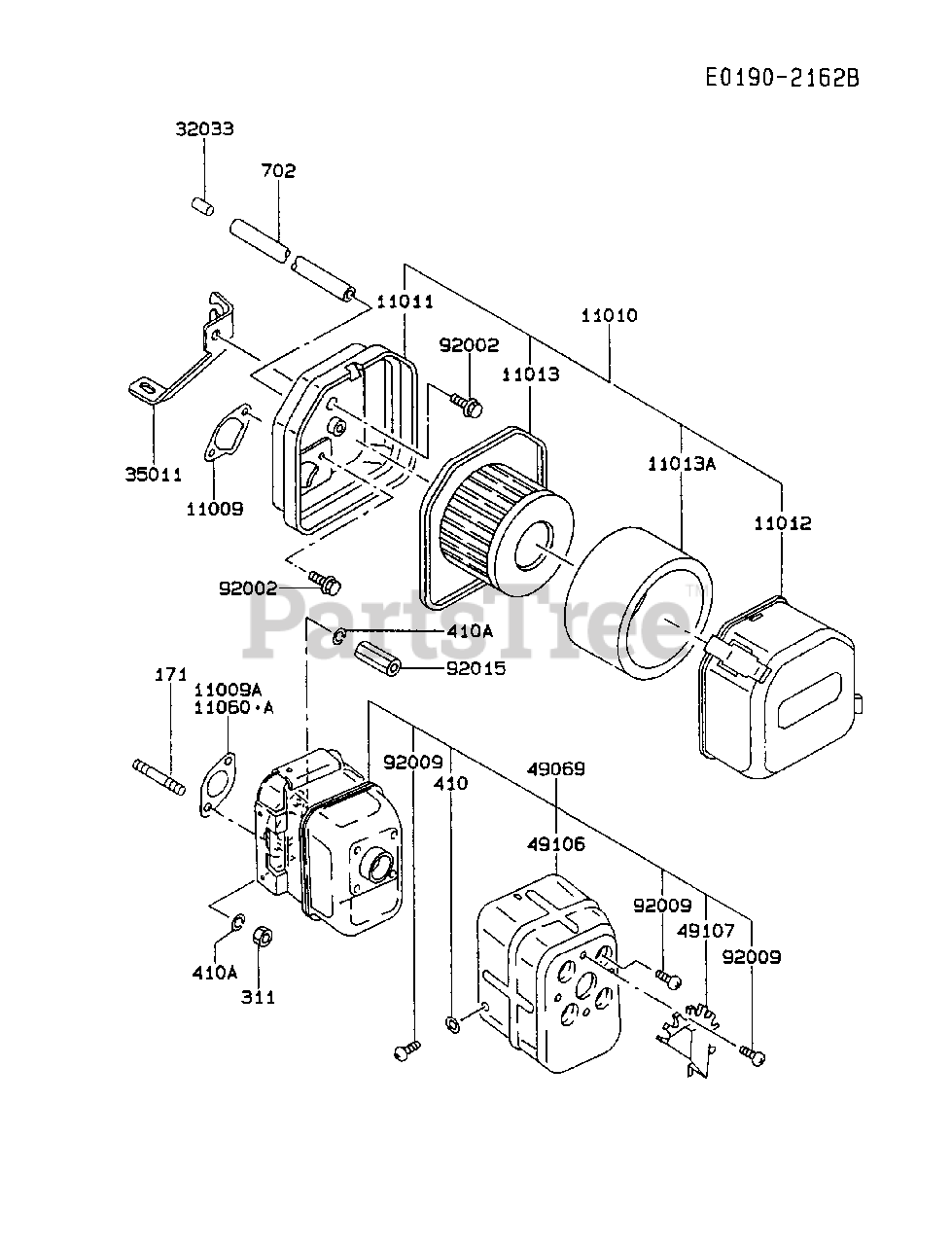

AIR-FILTER/MUFFLER Parts Diagram

  • Title
11009

Kawasaki 11009-2185

GASKET
(Superseded to 314501-1332A)

$

$

Not available

11009A

Kawasaki 11009-2028

GASKET
(Superseded to 11060-2100)

$2.99

$

Usually ships in 2-5 days

0

11010

Kawasaki 11010-2350-9H

FILTER-ASSY-AIR

$

$

Not available

11011

Kawasaki 11011-2251

CASE-AIR FILTER

$

$

Not available

$

$

Not available

11013

Kawasaki 49064-2074

ELEMENT-AIR FILTER
(Superseded to 314503-1312A)

$

$

Not available

11013A

Kawasaki 11013-2149

ELEMENT-AIR FILTER
(Superseded to 314503-1313A)

$

$

Not available

11060A

Kawasaki 11060-2100

GASKET,MUFFLER
(Superseded to 395000-1442A)

$2.99

$

Usually ships in 2-5 days

0

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

35011

$

$

Not available

49069

Kawasaki 49069-2167

MUFFLER-ASSY

$

$

Not available

49106

Kawasaki 49106-2261-YM

COVER-MUFFLER

$

$

Not available

49107

Kawasaki 49107-2082-YM

COVER-EXHAUST PIPE

$

$

Not available

92002

Kawasaki 92002-2051

BOLT
(Superseded to 314413-1316A)

$0.99

$

In Stock, only 3 left!

0

92009

Kawasaki 92009-2106

SCREW
(Superseded to 92009-2307)

$0.99

$

In Stock, only 1 left!

0

$

$

Not available

171

Kawasaki 171G0616

BOLT-STUD
(Superseded to 171BA0616)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0400

W-PLAIN-S
(Superseded to 410AA0400)

$0.99

$

In Stock, Qty 9

0

410A

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

702

Kawasaki 702A071000

TUBE-RUBBER
(Superseded to 92059-1519)

$14.99

$

Usually ships in 2-5 days

0
