FA076D-BS09 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

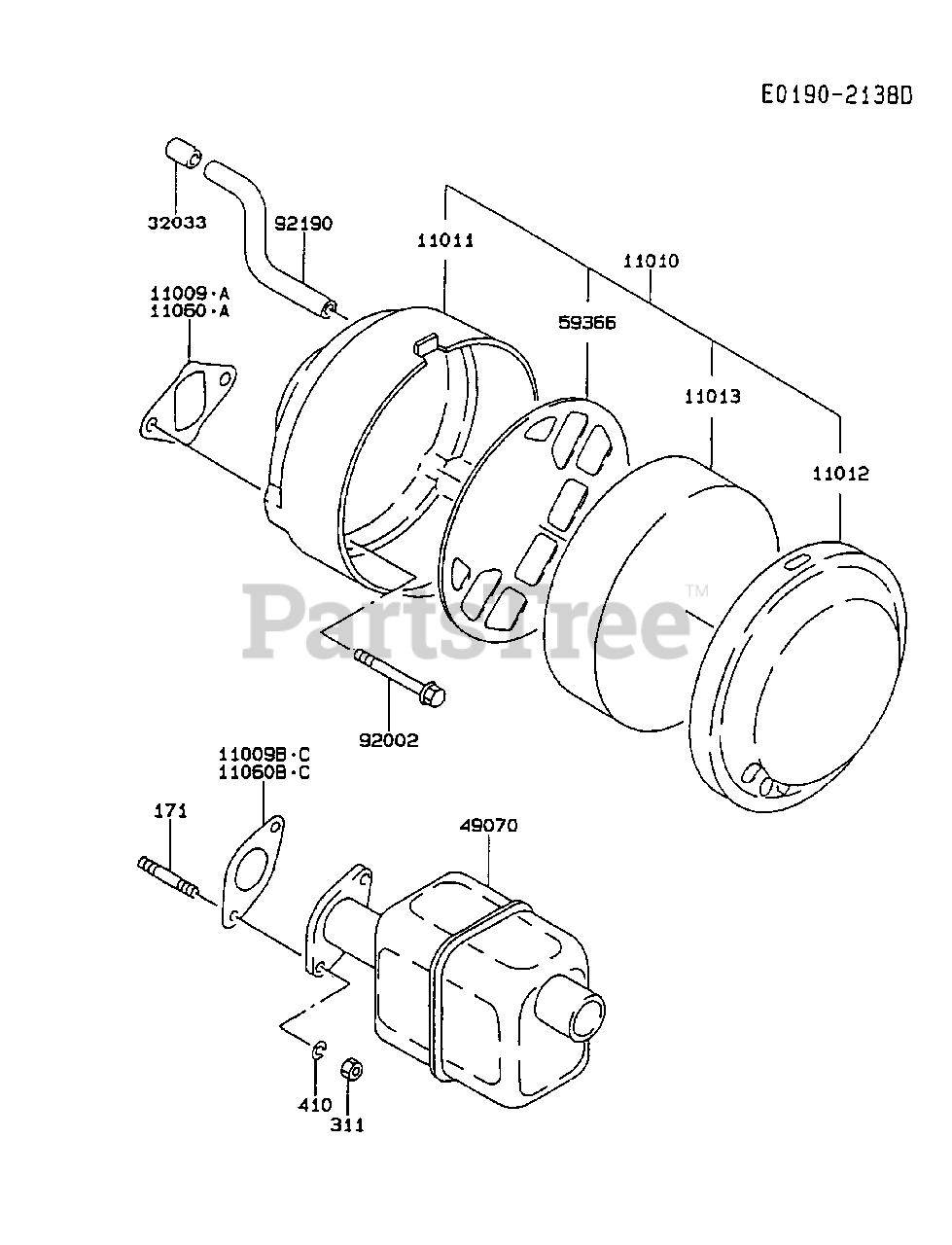

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11009A

Kawasaki 11009-2139

GASKET
(Superseded to 11060-2024)

$1.49

$

Usually ships in 2-5 days

0

11009C

Kawasaki 11009-2028

GASKET
(Superseded to 11060-2100)

$2.99

$

Usually ships in 2-5 days

0

11010

Kawasaki 11010-2070-YK

FILTER-ASSY-AIR
(Superseded to 314599-1310B)

$53.99

$

Usually ships in 2-5 days

0

11011

Kawasaki 11011-2090-YK

CASE-AIR FILTER

$

$

Not available

11012

Kawasaki 11012-2284-YK

CAP,AIR FILTER

$

$

Not available

11013

Kawasaki 49064-2001

ELEMENT-AIR FILTER
(Superseded to 312705-1312-00)

$16.99

$

Usually ships in 2-5 days

0

11060A

Kawasaki 11060-2024

GASKET,AIR FILTER
(Superseded to 11009-2139)

$1.49

$

Usually ships in 2-5 days

0

11060C

Kawasaki 11060-2100

GASKET,MUFFLER
(Superseded to 395000-1442A)

$2.99

$

Usually ships in 2-5 days

0

32033

Kawasaki 32033-2001

PIPE
(Superseded to 32032-2001)

$0.99

$

In Stock, only 3 left!

0

49070

Kawasaki 49070-2062-9Y

MUFFLER-COMP

$

$

Not available

59366

Kawasaki 59366-2054

GRATE
(Superseded to 59366-2001)

$9.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2297

BOLT

$

$

Not available

92190

Kawasaki 92190-2012

TUBE
(Superseded to 702A071000)

$14.99

$

Usually ships in 2-5 days

0

171

Kawasaki 171G0616

BOLT-STUD
(Superseded to 171BA0616)

$0.99

$

Usually ships in 2-5 days

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0
