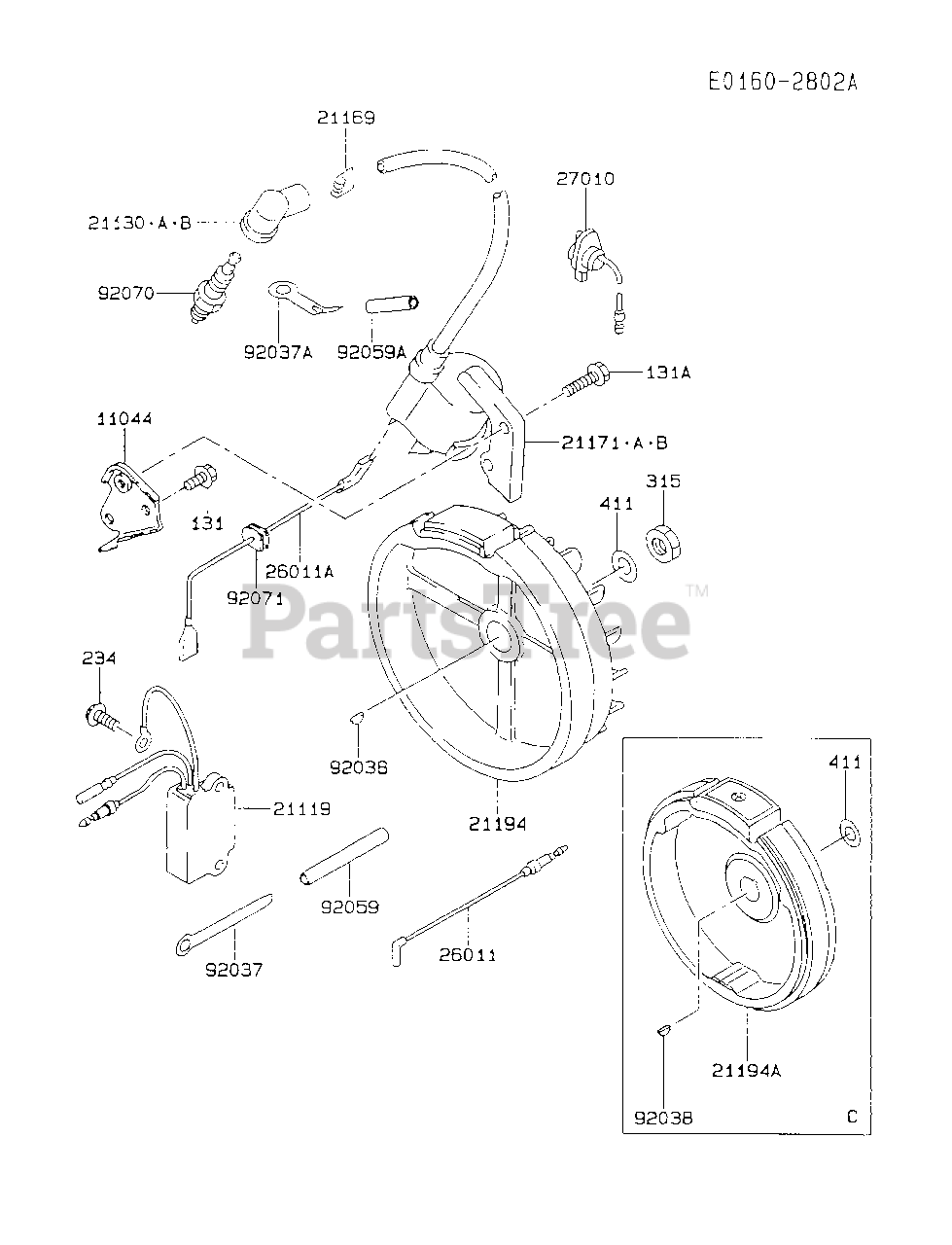

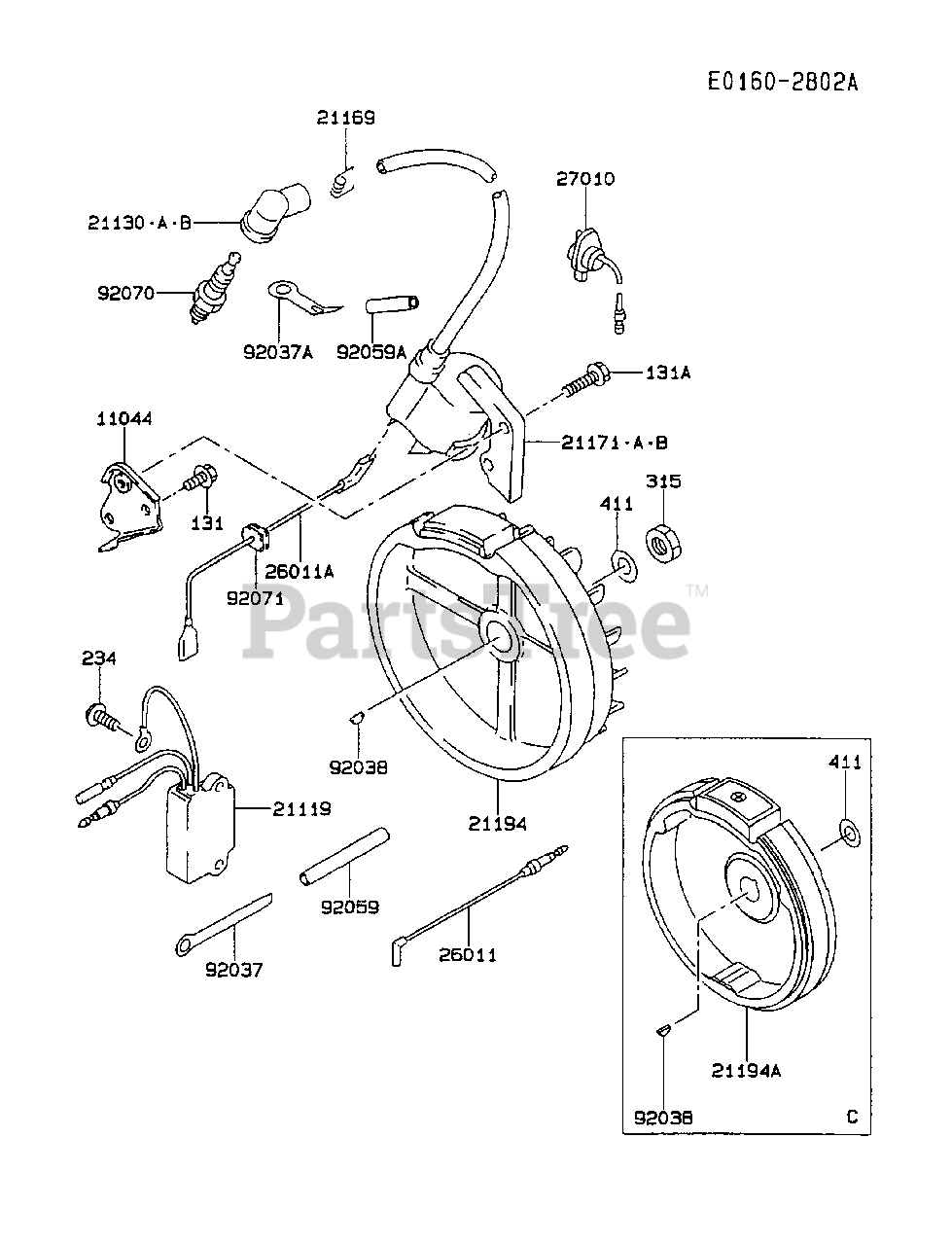

FA076D-AS09 - Kawasaki Engine ELECTRIC-EQUIPMENT Parts Diagram

Engine

ELECTRIC-EQUIPMENT Parts Diagram

  • Title
11044

$

$

Not available

21119

$

$

Not available

21130A

Kawasaki 21130-2066

CAP-SPARK PLUG
(Superseded to 21130-2001)

$2.49

$

In Stock, only 2 left!

0

21130B

Kawasaki 21130-2051

CAP-SPARK PLUG
(Superseded to 21130-2066)

$2.49

$

In Stock, only 2 left!

0

21169

Kawasaki 21169-2004

TERMINAL
(Superseded to 21169-2057)

$

$

Not available

21171

Kawasaki 21171-2131

COIL-ASSY-IGNITION
(Superseded to 21171-2171)

$

$

Not available

21171B

Kawasaki 21171-2171

COIL-ASSY-IGNITION
(Superseded to 21171-2131)

$

$

Not available

21194

Kawasaki 21194-2113

FLYWHEEL-COMP

$

$

Not available

26011

$

$

Not available

26011A

$

$

Not available

27010

Kawasaki 27010-2052

SWITCH
(Superseded to 315801-8511A)

$13.99

$

In Stock, only 2 left!

0

92037

$0.99

$

Usually ships in 2-5 days

0

92037A

$

$

Not available

$4.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2012

TUBE,5X6X55
(Superseded to 92190-2167)

$1.49

$

Usually ships in 2-5 days

0

92059A

Kawasaki 92059-2156

TUBE,5X6X35

$0.99

$

In Stock, only 4 left!

0

92070

Kawasaki 92070-2052

PLUG-SPARK,BP4HS
(Superseded to BP4HS)

Note: NGK

$3.49

$

Usually ships in 2-5 days

0

92071

$1.99

$

In Stock, only 4 left!

0

131

Kawasaki 131B0510

BOLT-FLANGED

$

$

Not available

131A

Kawasaki 131B0520

BOLT-FLANGED

$1.99

$

Usually ships in 2-5 days

0

234

Kawasaki 234B0514

SCREW-PAN-WSP+-
(Superseded to 234AA0514)

$0.99

$

Usually ships in 2-5 days

0

315

Kawasaki 315G1200

NUT-HEX-FINE
(Superseded to 315BA1200)

$1.49

$

Usually ships in 2-5 days

0

411

Kawasaki 411B1200

WASHER-PLAIN
(Superseded to 411AA1200)

$0.99

$

In Stock, only 2 left!

0
