FA076D-AS07 - Kawasaki Engine STARTER Parts Diagram

Engine

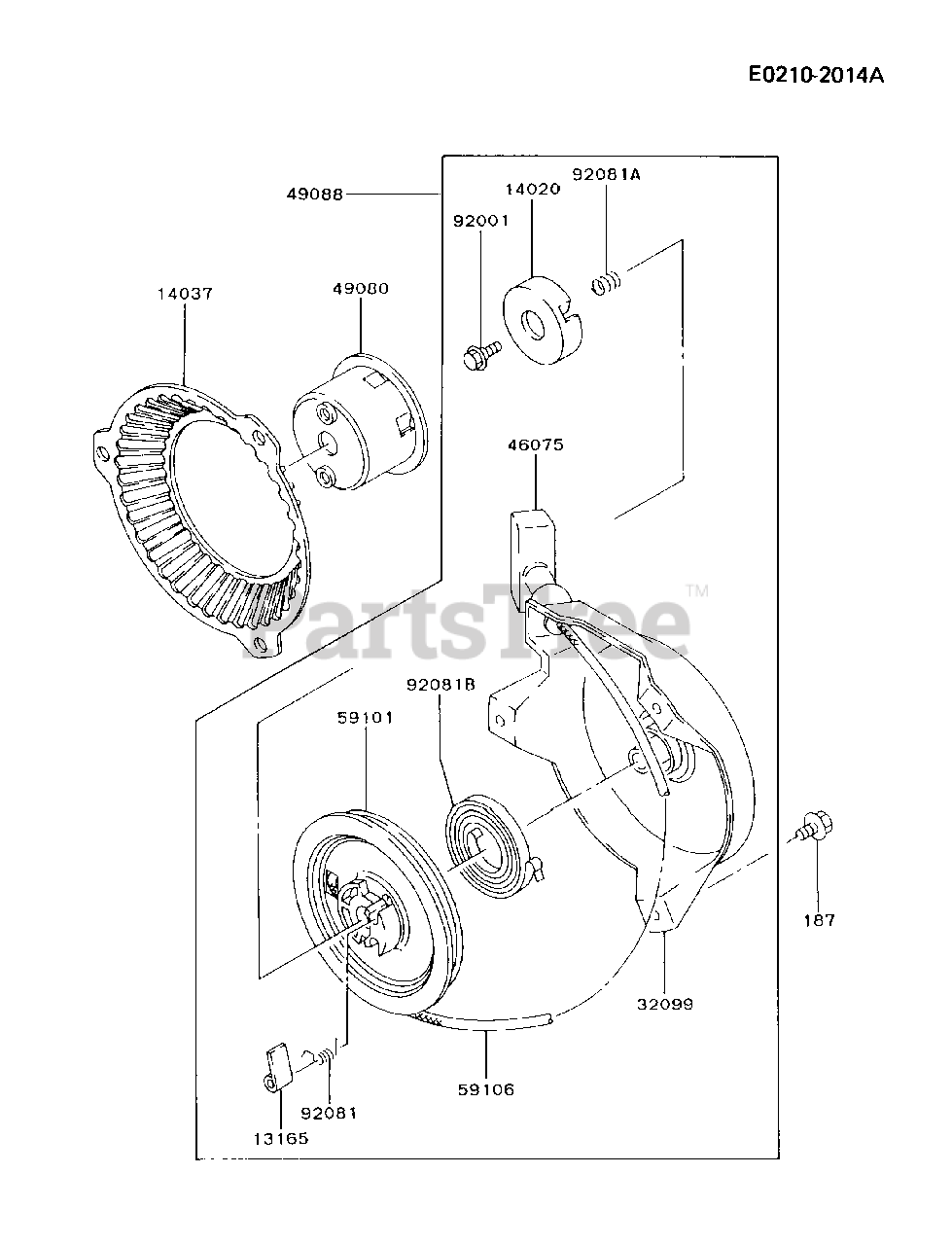

STARTER Parts Diagram

  • Title
13165

Kawasaki 13165-2003

PAWL
(Superseded to 314401-3445A)

$2.49

$

In Stock, Qty 5

0

14020

Kawasaki 14020-2003

RETAINER
(Superseded to 314401-3449A)

$

$

Not available

14037

$

$

Not available

32099

Kawasaki 32099-2160-YK

CASE,RECOIL STARTER

$

$

Not available

46075

Kawasaki 46075-2005

GRIP
(Superseded to 312801-3454A)

$

$

Not available

49080

Kawasaki 49080-2139

PULLEY-STARTING

$6.99

$

In Stock, only 1 left!

0

49088

Kawasaki 49088-2334-YK

STARTER-RECOIL

$

$

Not available

59101

Kawasaki 59101-2075

REEL,RECOIL STARTER

$

$

Not available

59106

Kawasaki 59106-2053

ROPE,4X1150

$

$

Not available

92001

Kawasaki 92001-2027

BOLT
(Superseded to 314501-3447A)

$2.99

$

In Stock, only 3 left!

0

92081

$1.99

$

In Stock, Qty 14

0

92081A

$2.49

$

In Stock, only 4 left!

0

92081B

Kawasaki 92081-2023

SPRING,RECOIL

$13.99

$

Usually ships in 2-5 days

0

187

Kawasaki 187B0610

BOLT-UPSET-WSP

$

$

Not available
