FA (990009) - Simplicity Two-Wheeled Tractor, 2.5hp Transmission Group (3572I03) Parts Diagram

Two-Wheeled Tractor, 2.5hp

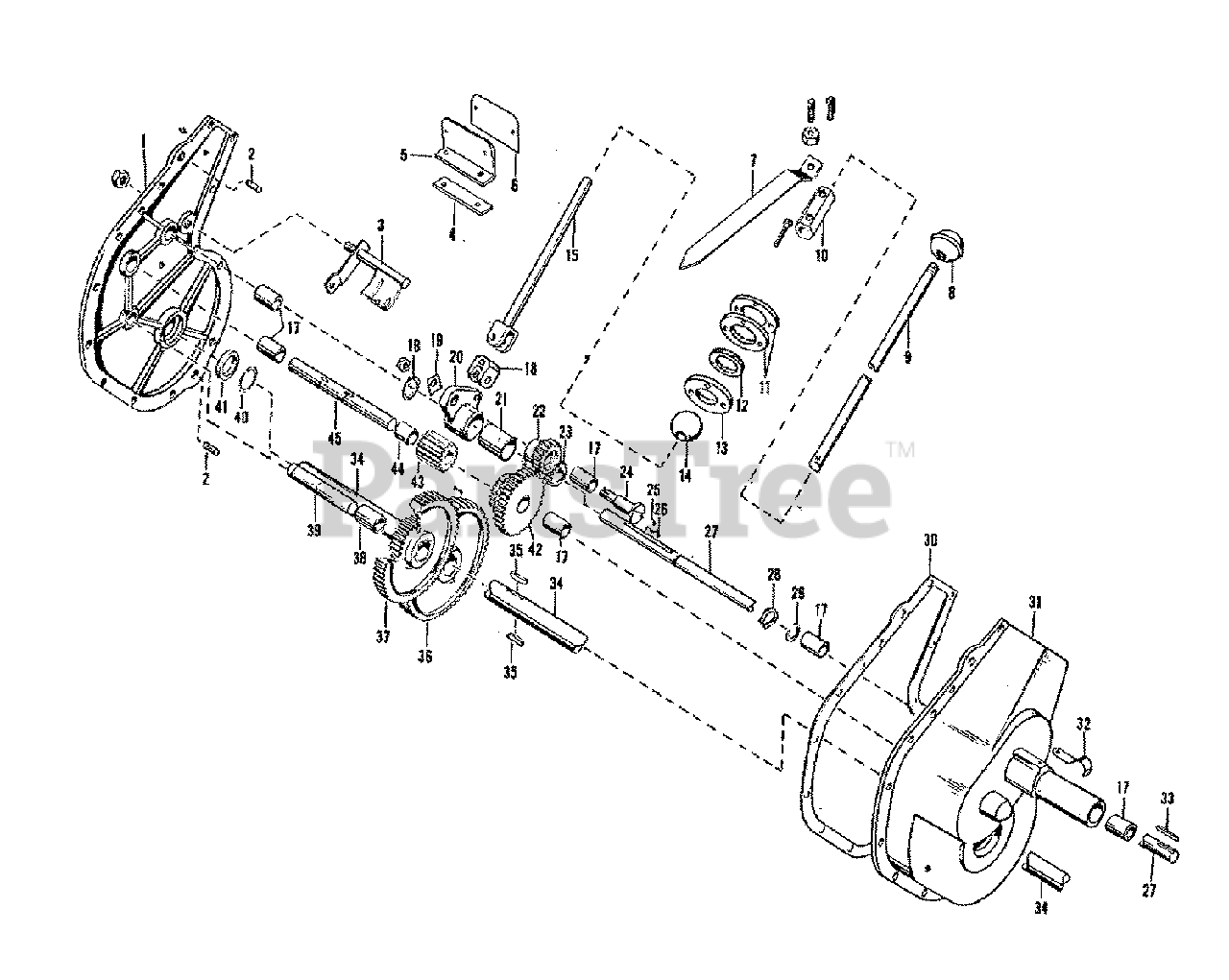

Transmission Group (3572I03) Parts Diagram

  • Title

1

Simplicity 151003

COVER, Gear Case

$

$

Not available

2

Simplicity 8051053

PIN, Dowel

$

$

Not available

3

Simplicity 151002

SHIFT GUIDE ASSEMBLY

$

$

Not available

4

Simplicity 8051029

SHIFT INST. PLATE BRACKET HOLDER

$

$

Not available

5

Simplicity 151006

SHIFT INST. PLATE BRACKET

$

$

Not available

6

Simplicity 151007

PLATE, Serial and Shift Instr.

$

$

Not available

7

Simplicity 8051028

POINTER, Shifter

$

$

Not available

8

Simplicity 1676743SM

BALL, Shift Lever

$19.99

$

Usually ships in 2-12 days

0

9

Simplicity 8051013

HANDLE EXT. Gear Shift

$

$

Not available

10

Simplicity 8061030

HANDLE COUPLING, Gear Shift

$

$

Not available

11

Simplicity 8051059

SPACER, Shift Ball

$

$

Not available

12

Simplicity 8051060

WASHER, Shift Ball

$

$

Not available

13

Simplicity 8051047

RETAINER, Gear Shift Ball

$

$

Not available

14

Simplicity 8051044

GEAR SHIFT BALL

$

$

Not available

15

Simplicity 8051504

PITMAN CLEVIS ASSEMBLY

$

$

Not available

16

Simplicity 8061026

GEAR SHIFT PITMAN

$

$

Not available

17

Simplicity 2156064SM

BRONZE BEARING

$22.99

$

Usually ships in 2-12 days

0

18

Simplicity 8051000

RING, Retaining

$

$

Not available

19

Simplicity 8061119

PLATE, Lock

$

$

Not available

20

Simplicity 8051502

ROCKER ARM ASSEMBLY

$

$

Not available

21

Simplicity 8051033

BEARING, Rocker Arm

$

$

Not available

22

Simplicity 8051004

PINION WITH BEARING, Rocker Arm

$

$

Not available

23

Simplicity 8051005

TRANSMISSION SLIDE GEAR

$

$

Not available

24

Simplicity 8061005

PIN, Rocker Arm Pinion

$

$

Not available

25

Simplicity 8051635

LOCK PLATE, Slide Key

$

$

Not available

26

Simplicity 8051034

SLIDE KEY, Transmission

$

$

Not available

27

Simplicity 8052003

SHAFT, Transmission Pulley

$

$

Not available

28

Simplicity 8051039

RING, Retaining

$

$

Not available

29

Simplicity 2860207SM

WASHER, Spacer

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 8053001

GASKET, Gear Case

$

$

Not available

31

Simplicity 151005

GEAR CASE

$

$

Not available

32

Simplicity 8051024

LATCH, Idler Lever

$

$

Not available

33

Simplicity 8051061

PULLEY KEY, Transmission

$

$

Not available

34

Simplicity 8062004

AXLE

$

$

Not available

35

Simplicity 8021068

KEY, Axle

$

$

Not available

36

Simplicity 8262002

GEAR, Drive

$

$

Not available

37

Simplicity 8021503

CLUSTER GEAR ASSEMBLY

$

$

Not available

38

Simplicity 8021032

BUSHING, Intermediate, 5/8 x 3/4 x -1-7/16"

$

$

Not available

39

Simplicity 8051012

SPINDLE, Intermediate

$

$

Not available

40

Simplicity 826132

RING, Retaining

$

$

Not available

41

Simplicity 8051031

WASHER, Retaining

$

$

Not available

42

Simplicity 805101

CLUSTER GEAR ASSEMBLY
(Superseded to 805101S)

$13.99

$

Usually ships in 2-12 days

0

43

Simplicity 8051008

HIGH GEAR

$

$

Not available

44

Simplicity 8051018

SPACER, Transmission Pinion Shaft

$

$

Not available

45

Simplicity 8051010

SHAFT, Transmission Pinion

$

$

Not available
