FA (990009) - Simplicity Two-Wheeled Tractor, 2.5hp Tractor Group - Parts List (3572I02) Parts Diagram

Two-Wheeled Tractor, 2.5hp

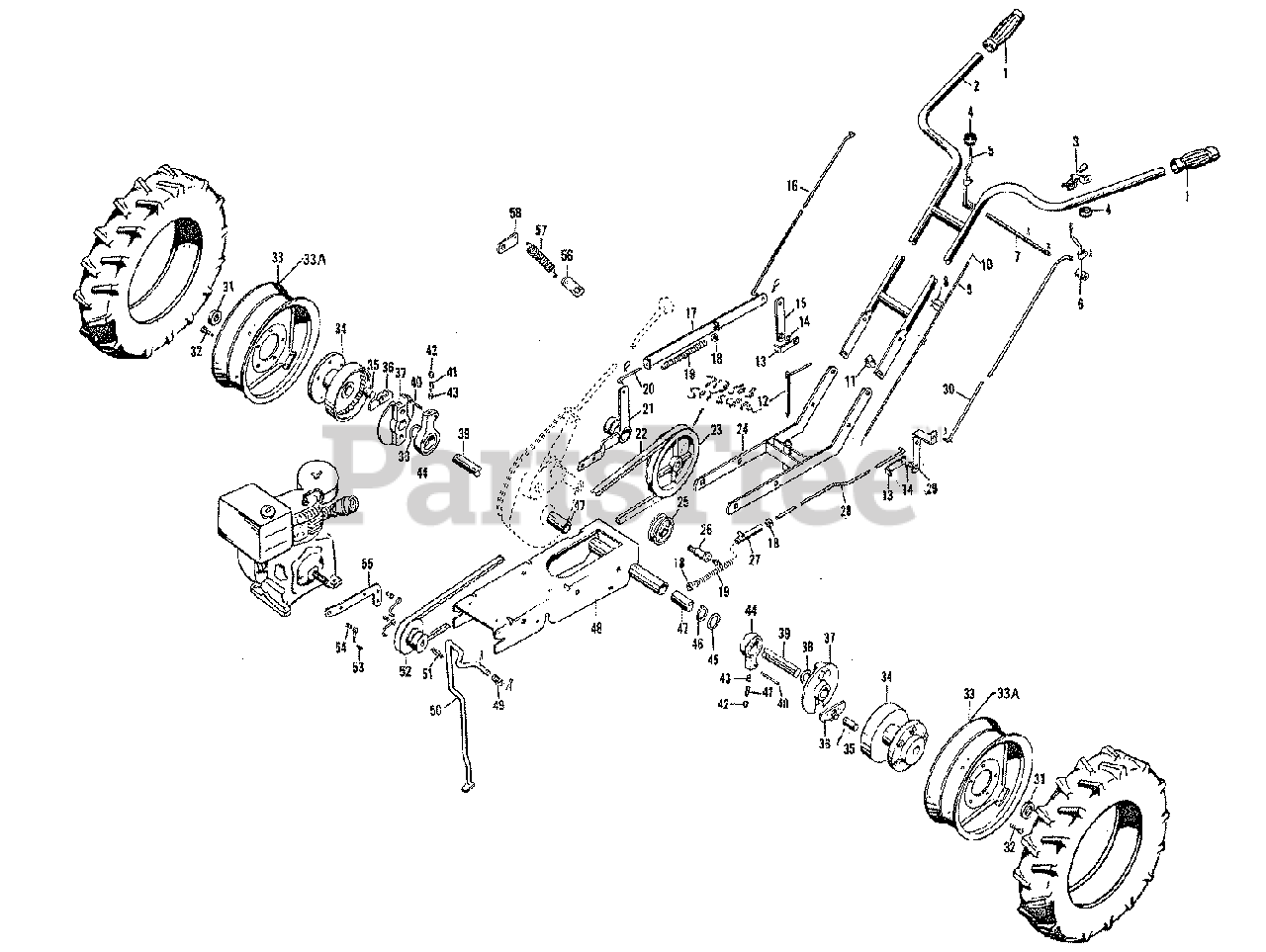

Tractor Group - Parts List (3572I02) Parts Diagram

  • Title

1

Simplicity 8021016

HANDLE GRIP

$

$

Not available

2

Simplicity 8063502

HANDLE ASSEMBLY

$

$

Not available

3

Simplicity 8061087

THROTTLE CONTROL LEVER ASSEMBLY

$

$

Not available

4

Simplicity 1729255SM

CLUTCH LEVER BALL

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 8021507

R.H. CLUTCH LEVER ASSEMBLY

$

$

Not available

6

Simplicity 8051506

L.H. CLUTCH LEVER ASSEMBLY

$

$

Not available

7

Simplicity 8021118

LEVER SHAFT

$

$

Not available

8

Simplicity 80611-08

CLIP, Cable

$

$

Not available

9

Simplicity 8021095

THROTTLE WIRE HOUSING

$

$

Not available

10

Simplicity 8021096

THROTTLE CONTROL WIRE

$

$

Not available

11

Simplicity 8061117

CLAMP, Throttle Wire Housing

$

$

Not available

12

Simplicity 8061502

HITCH PIN ASSEMBLY

$

$

Not available

13

Simplicity 8021121

STOP, Lever

$

$

Not available

14

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 2 left!

0

15

Simplicity 8051030

LEVER, Lower Clutch Pivot

$

$

Not available

16

Simplicity 8051014

ROD, Upper Idler Clutch

$

$

Not available

17

Simplicity 1729265SM

IDLER CLUTCH ROD GUIDE ASSEMBLY

$41.99

$

Usually ships in 2-12 days

0

18

Simplicity 1729276SM

IDLER ROD SET COLLAR

$

$

Not available

19

Simplicity 1729277SM

ROD, Spring Idler

$6.99

$

In Stock, only 1 left!

0

20

Simplicity 8051043

ROD, Lower Idler Clutch

$

$

Not available

21

Simplicity 8052563

IDLER LEVER ASSEMBLY

$

$

Not available

22

Simplicity 8161083

43" "V" BELT

$

$

Not available

23

Simplicity 8052002

TRANSMISSION PULLEY

$

$

Not available

24

Simplicity 8121359

FRAME ASSEMBLY

$

$

Not available

25

Simplicity 2156124SM

IDLER PULLEY ASSEMBLY

$

$

Not available

26

Simplicity 8051037

PIN, Idler Pulley

$

$

Not available

27

Simplicity 8161518

ROD SOCKET ASSEMBLY

$

$

Not available

28

Simplicity 8161090

ROD, Lower Idler

$

$

Not available

29

Simplicity 8021091

LEVER, Lower clutch

$

$

Not available

30

Simplicity 8021122

ROD, Upper Idler

$

$

Not available

31

Simplicity 8261012

COLLAR, Set

$

$

Not available

32

Simplicity 1729280SM

BOLTS, Hub

$6.49

$

In Stock, only 2 left!

0

33

Simplicity 8262024

WHEELS, Drive (5-12 Tires)

$

$

Not available

33A

Simplicity 8262023

WHEELS, Drive (6-12 Tires)

$

$

Not available

34

Simplicity 8052001

HUB, Wheel

$

$

Not available

35

Simplicity 8061037

PIN, Ratchet Pawl

$

$

Not available

36

Simplicity 152009

RATCHET PAWL ASSEMBLY

$

$

Not available

37

Simplicity 8051002

CAGE, Ratchet

$

$

Not available

38

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

39

Simplicity 8052004

AXLE

$

$

Not available

40

Simplicity 8051051

RATCHET PAWL TRIP FINGER

$

$

Not available

41

Simplicity 8051052

TRIP FINGER HOLDER SPRING

$

$

Not available

42

Simplicity 8021103

SCREW, Headless, 7/16 -

$

$

Not available

43

Simplicity 8051662

TRIP FINGER HOLDER PLUG

$

$

Not available

44

Simplicity 8051055

HOLDER WITH BEARING ASSEMBLED

$

$

Not available

45

Simplicity 8051021

SPACER, Axle Housing

$

$

Not available

46

Simplicity 8051041

RING, Retaining

$

$

Not available

47

Simplicity 8051042

BEARING, Axle

$

$

Not available

48

Simplicity 151004

BASE ASSEMBLY

$

$

Not available

49

Simplicity 2152006SM

SPRING, Stand

$8.49

$

Usually ships in 2-12 days

0

50

Simplicity 152011

STAND ASSEMBLY

$

$

Not available

51

Simplicity 1729279SM

KEY FOR ENGINE PULLEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

52

Simplicity 8051001

ENGINE PULLEY

$

$

Not available

53

Simplicity 8021014

STOP, Belt

$

$

Not available

54

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

55

Simplicity 8021048

BELT STOP HOLDER

$

$

Not available

56

Simplicity 8151035

SPRING HOLDER, Lower

$

$

Not available

57

Simplicity 8111047

SPRING

$

$

Not available

58

Simplicity 8151036

SPRING HOLDER, Upper

$

$

Not available
