F800X/72 (5901238) - Ferris 72" Mower Deck 72" Mower Deck - Pusher Bars Group Parts Diagram

72" Mower Deck

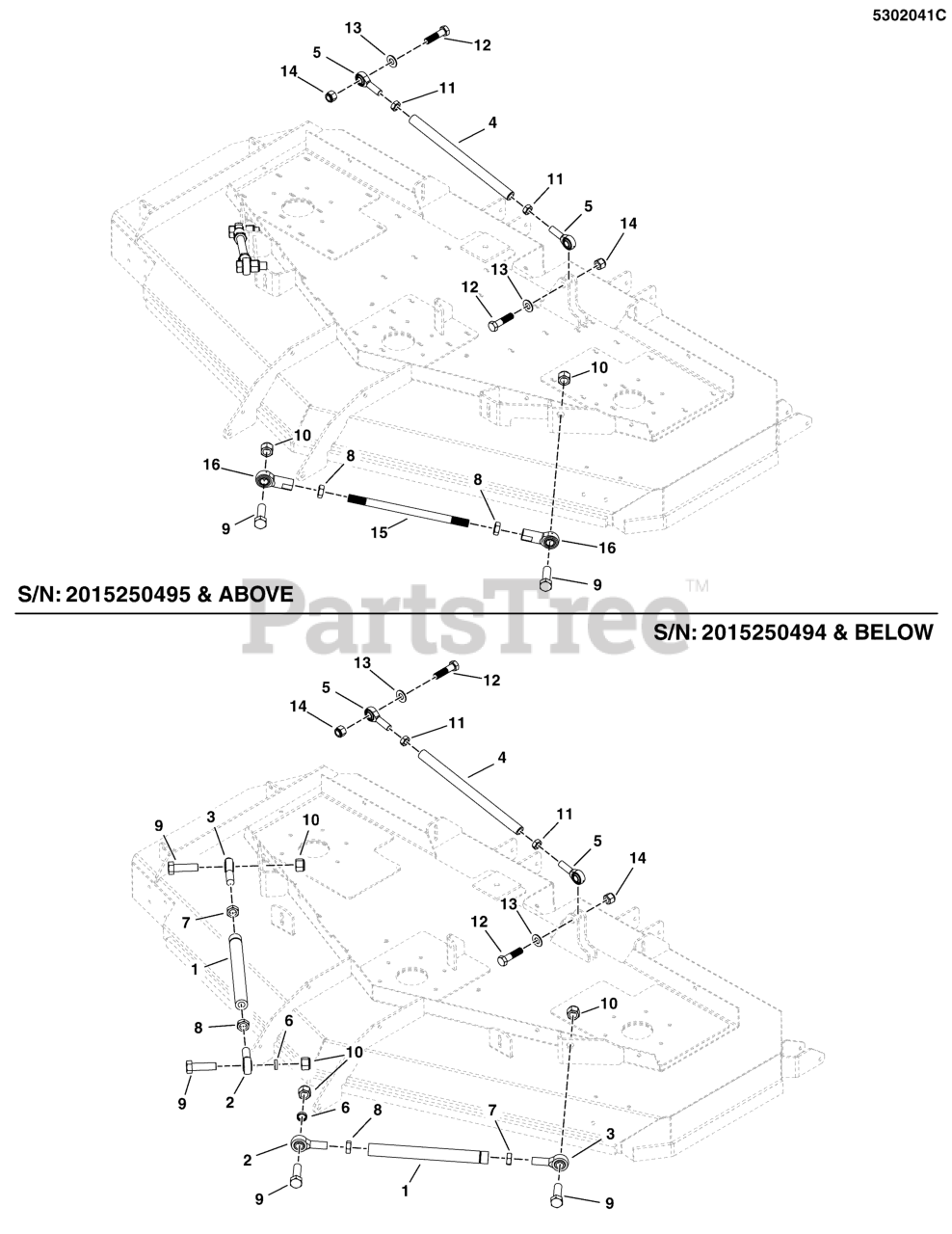

72" Mower Deck - Pusher Bars Group Parts Diagram

  • Title

1

Ferris 5102698

ROD, DECK STABILIZER, 12.31 LG ECOAT

$81.99

$

Usually ships in 2-12 days

0

2

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

3

Ferris 5102756

BALL JOINT, 3/4-16 MALE, LH
(Superseded to 5102756FS)

$32.99

$

Usually ships in 2-12 days

0

4

Ferris 5103003

SHAFT, DECK STABILIZER, 14.50, CZ

$

$

Currently unavailable

5

Ferris 5102683

BALL JOINT, 5/8-18, MALE
(Superseded to 5102683YP)

$36.99

$

In Stock, only 4 left!

0

6

Ferris 5047461

SPACER, .76 X 1.00 X .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

7

Ferris 5025580

NUT, 3/4-16 HEX JAM, LH
(Superseded to 5025580FS)

$6.49

$

Usually ships in 2-12 days

0

8

Ferris 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2 YZ GD5
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

11

Ferris 5025454

NUT, 5/8-18, HEX JAM
(Superseded to 5025454SM)

$3.49

$

In Stock, Qty 5

0

12

Ferris 5025019X20

BOLT, 5/8-11 X 2-1/2 GD5, CZ
(Superseded to 5025019X20YP)

$7.99

$

Usually ships in 2-12 days

0

13

Ferris 5025281

WASHER, 5/8 SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

14

Ferris 5025403

NUT,5/8-11 HEX NYLON LOCK
(Superseded to 5025403YP)

$6.99

$

In Stock, Qty 6

0

15

Ferris 5103237A

ROD, 3/4-16 X 12.31

$

$

Not available

16

Ferris 5103246

BALL JOINT, 3/4-16, FEMALE
(Superseded to 5103246YP)

$30.99

$

Usually ships in 2-12 days

0
