F800X/72 (5901238) - Ferris 72" Mower Deck 72" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

72" Mower Deck

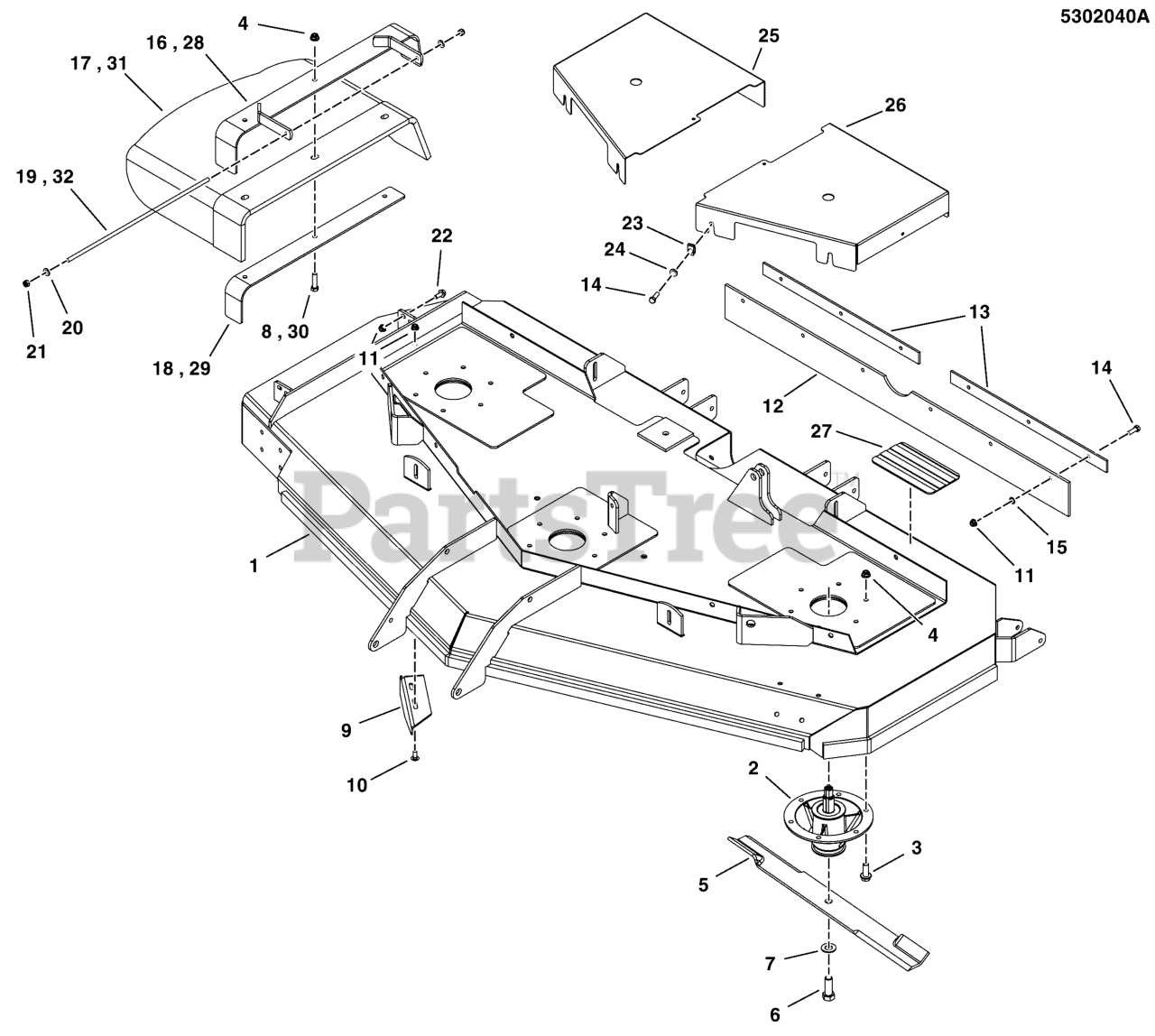

72" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

  • Title

1

Ferris 5600665

DECK SHELL W/ DECALS, 72 - F800X

Note: (5408213B)

$2165.99

$

Usually ships in 2-12 days

0

2

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

3

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

$110.99

$

In Stock, only 2 left!

0

6

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

8

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017118253 & Below)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

10

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5102621

FLAP, STRIPER, 72 DECK
(Superseded to 5102621YP)

$106.99

$

Usually ships in 2-12 days

0

13

Ferris 5406813B

PLATE, SUPPORT, 72, S800X - RED

$

$

Currently unavailable

14

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

15

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5408016A

WELD, FRAME, CHUTE, 72 - BLK

Note: (S/N: 2017118253 & Below)

$76.99

$

Usually ships in 2-12 days

0

17

Ferris 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

Note: (S/N: 2017118253 & Below)

$

$

Currently unavailable

18

Ferris 5408018A

SUPPORT, DICHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

Note: (S/N: 2017118253 & Below)

$22.99

$

Usually ships in 2-12 days

0

19

Ferris 5103045

ROD, MOUNT, CHUTE, 72, CZ

Note: (S/N: 2017118253 & Below)

$15.99

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

22

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

23

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

24

Ferris 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

25

Ferris 5406014B

GUARD, DECK - RH - RED

$

$

Currently unavailable

26

Ferris 5406015B

GUARD, DECK - LH - RED

$66.99

$

Usually ships in 2-12 days

0

27

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

28

Ferris 84008171

MOUNT

Note: (S/N: 2017118254 & Above)

$136.99

$

Usually ships in 2-12 days

0

29

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017118254 & Above)

$28.99

$

In Stock, Qty 5

0

30

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017118254 & Above)

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5413499

CHUTE, RUBBER DISCHARGE

Note: (S/N: 2017118254 & Above)

$160.99

$

Usually ships in 2-12 days

0

32

Ferris 5061300

ROD, MOUNT, CHUTE 61, CZ
(Superseded to 5061300FS)

Note: (S/N: 2017118254 & Above)

$11.99

$

Usually ships in 2-12 days

0
