F800X/61RDCE (5901211) - Ferris 61" Rear-Discharge Mower Deck 61" Mower Deck - Housing, Covers, Spindles & Blades Group - Rear Discharge Parts Diagram

61" Rear-Discharge Mower Deck

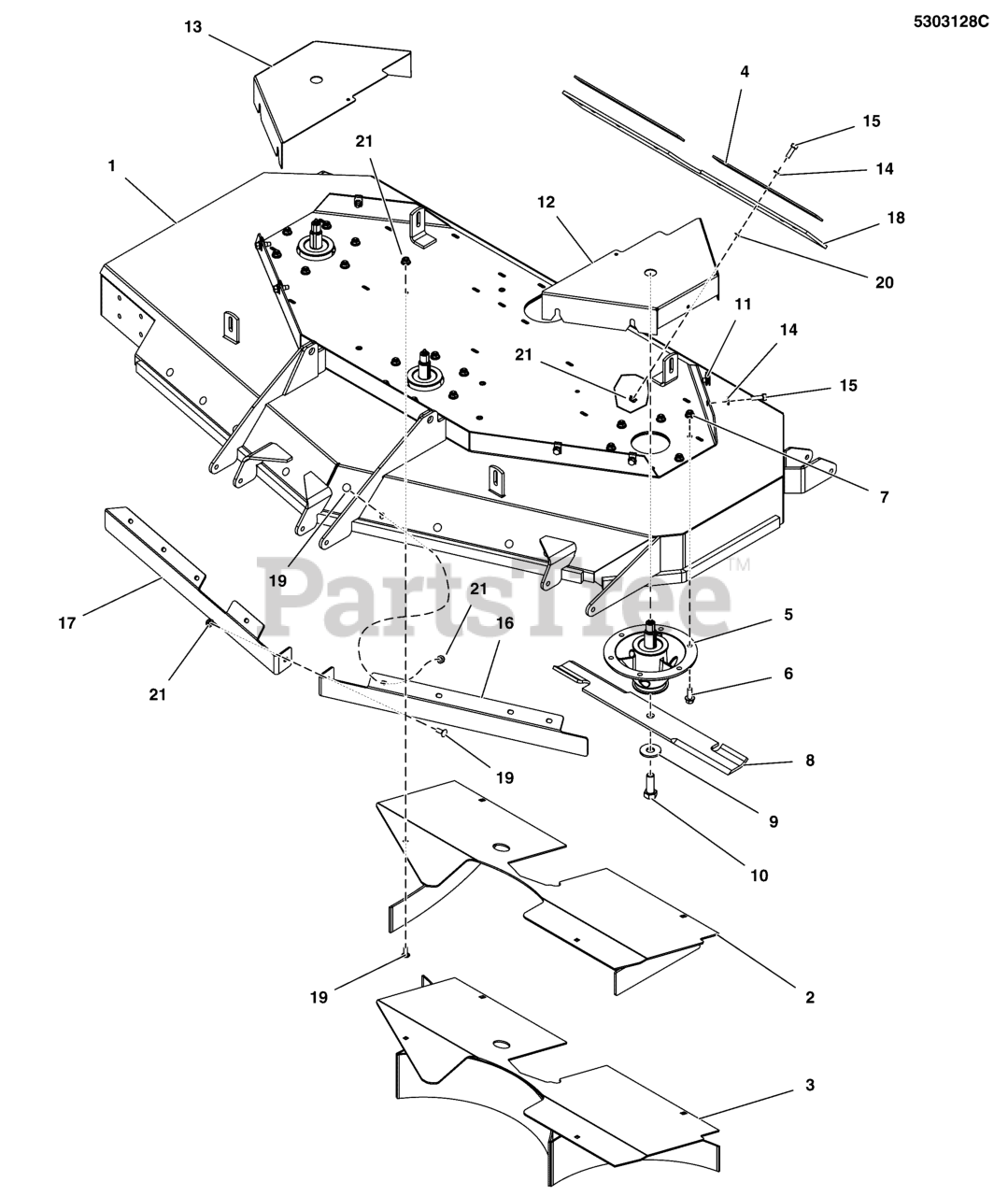

61" Mower Deck - Housing, Covers, Spindles & Blades Group - Rear Discharge Parts Diagram

  • Title
1

Ferris 5600726

DECK SHELL W/ DECALS, S800X, 61RDCE (5410093B)

Note: (SV)

$

$

Currently unavailable

2

Ferris 5410096B

WELD, REAR DIVERTER, 61 RD - RED

$

$

Currently unavailable

3

Ferris 5410098B

WELD, REAR BAFFLE, 61 RD - RED

$242.99

$

Usually ships in 2-12 days

0

4

Ferris 5410228B

PLATE, SUPPORT, S800X, 61RD - RED

$

$

Currently unavailable

5

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

6

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 blades)

$

$

Not available

9

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 10

0

10

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GR8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5403163B

GUARD, 61", LH - OUTFRONT - RED

$

$

Currently unavailable

13

Ferris 5403164B

GUARD, 61", RH - OUTFRONT - RED

$42.99

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025011X8

BOLT, 5/16-18, GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

16

Ferris 5406717A

BAFFLE, BLOWOUT, 61 ICD, LH - BLK

$44.99

$

Usually ships in 2-12 days

0

17

Ferris 5406818A

BAFFLE, BLOWOUT, S800XY, RH - BLK

$36.99

$

Usually ships in 2-12 days

0

18

Ferris 5103664

FLAP, STRIPER, 61RD, F800X

$

$

Currently unavailable

19

Ferris 5025145X6

CARRIAGE BOLT 5/16-18 X 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

20

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
