F800X/61RDCE (5901211) - Ferris 61" Rear-Discharge Mower Deck 61" Mower Deck - Front Frame Group Parts Diagram

61" Rear-Discharge Mower Deck

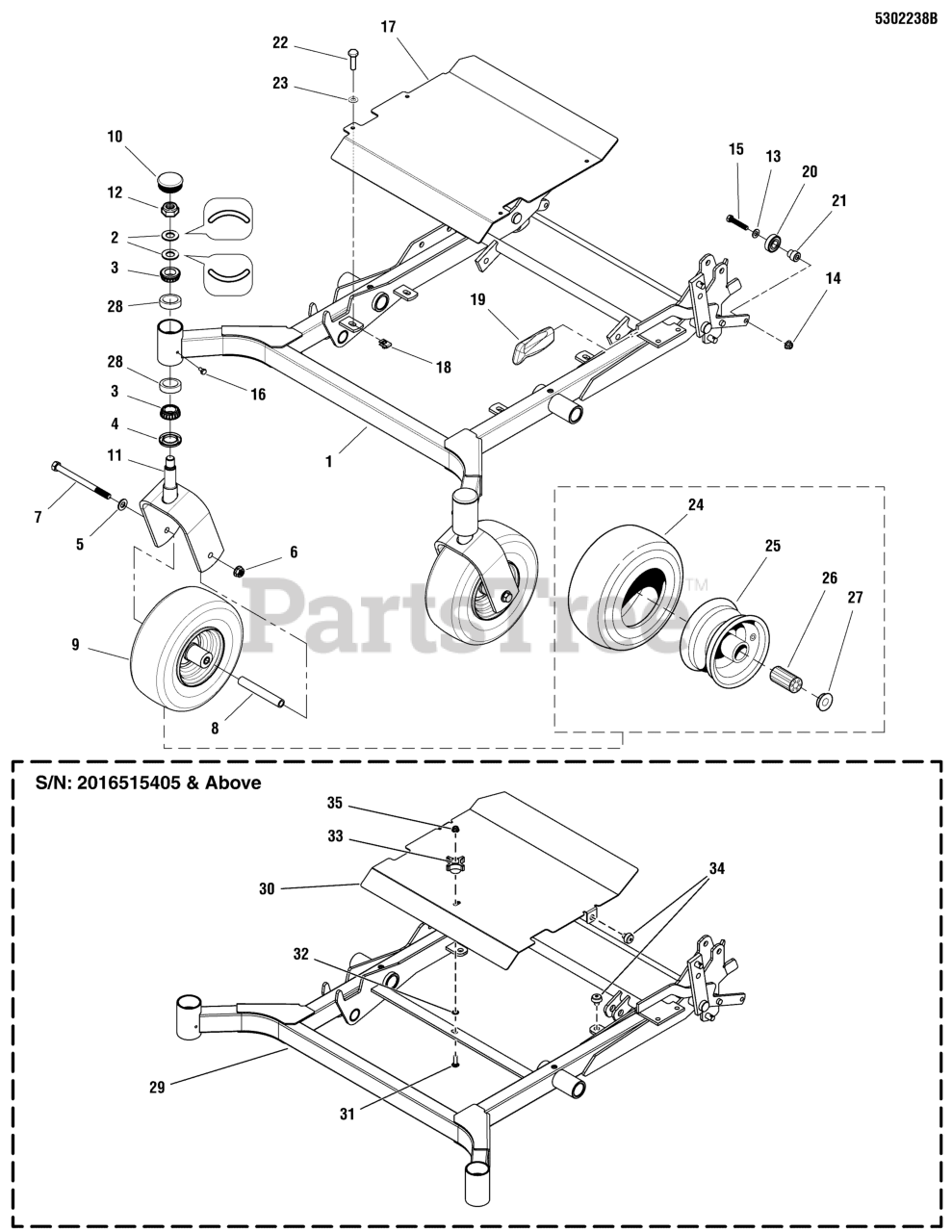

61" Mower Deck - Front Frame Group Parts Diagram

  • Title

1

Ferris 5407086B

WELD, MOWER FRAME - OUTFRONT - RED

Note: (S/N: 2016515404 & BELOW)

$

$

Currently unavailable

2

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

3

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

4

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

5

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

6

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

7

Ferris 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

8

Ferris 5045996

AXLE, Front Caster
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

9

Ferris 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

$127.99

$

In Stock, Qty 11

0

10

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

11

Ferris 5401759B

WELD., FRONT CASTER YOKES - RED
(Superseded to 5401759BFS)

$201.99

$

Usually ships in 2-12 days

0

12

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5403264B

GUARD, BELT - CENTER - RED

Note: (S/N: 2016515404 & BELOW)

$

$

Currently unavailable

18

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

19

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

Usually ships in 2-12 days

0

20

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

21

Ferris 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

22

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

23

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Ferris 5022433X1

TIRE, FRONT, 11 X 4.0 - 5 (SV)

$70.99

$

Usually ships in 2-12 days

0

25

Ferris 5101418X2

WHEEL FOR 11X4.0-5 TIRE ASSM

$

$

Currently unavailable

26

Ferris 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)

$27.99

$

Usually ships in 2-12 days

0

27

Ferris 5021043

RETAINER, BEARING (TWO PER TIRE)(SV)

$6.99

$

Usually ships in 2-12 days

0

28

Ferris 5020883

CUP, BEARING (SV)

$8.99

$

Usually ships in 2-12 days

0

29

Ferris 5410972B

WELD, MOWER FRAME, 800 - 61" - RED

Note: (S/N: 2016515405 & ABOVE)

$1253.99

$

Usually ships in 2-12 days

0

30

Ferris 5410971B

DECK GUARD, CENTER, 800 - RED

Note: (S/N: 2016515405 & ABOVE)

$76.99

$

Usually ships in 2-12 days

0

31

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

Note: (S/N: 2016515405 & ABOVE)

$3.99

$

In Stock, Qty 9

0

32

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

Note: (S/N: 2016515405 & ABOVE)

$2.99

$

Usually ships in 2-12 days

0

33

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

Note: (S/N: 2016515405 & ABOVE)

$13.99

$

In Stock, only 1 left!

0

34

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

Note: (S/N: 2016515405 & ABOVE)

$7.99

$

In Stock, only 2 left!

0

35

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (S/N: 2016515405 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0
