F800X/61 (5901237) - Ferris 61" Mower Deck 61" Mower Deck - Deck Lift Group Parts Diagram

61" Mower Deck

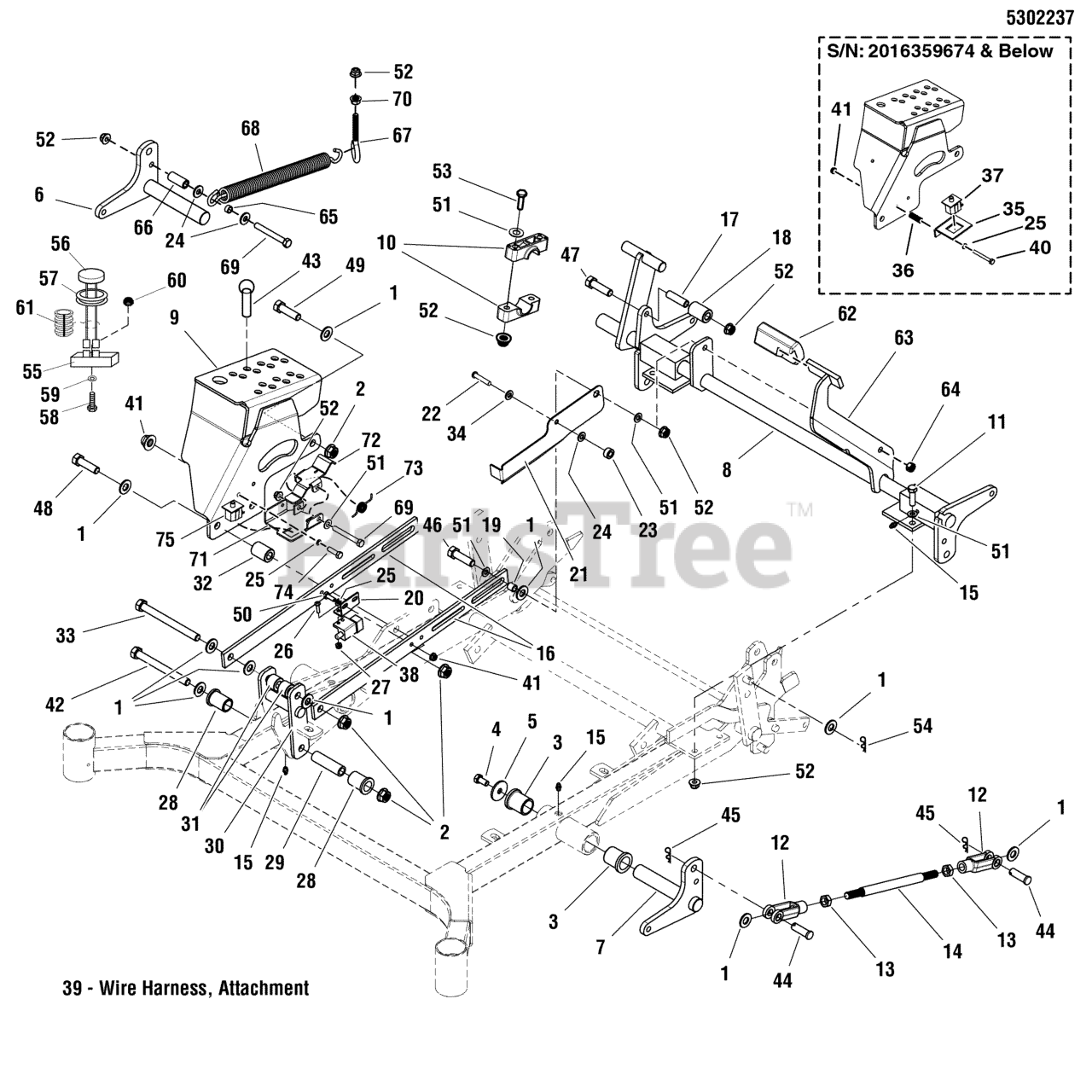

61" Mower Deck - Deck Lift Group Parts Diagram

  • Title

1

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

2

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

4

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5403086B

WELD., DECK LIFT LEVER - RH - RED

$

$

Currently unavailable

7

Ferris 5403085B

WELD., DECK LIFT LEVER - LH - RED

$

$

Currently unavailable

8

Ferris 5403087B

WELD, DECK LIFT SHAFT - OUTFRONT - RED

$279.99

$

Usually ships in 2-12 days

0

9

Ferris 5404358B

WELD, CUT HEIGHT BOX - RED

$

$

Currently unavailable

10

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

11

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

12

Ferris 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

13

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

14

Ferris 5101156

ROD, DECK LIFT, OUTFRONT

$26.99

$

Usually ships in 2-12 days

0

15

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

16

Ferris 5403123B

BAR, ACTUATOR LINK - RED

$37.99

$

Usually ships in 2-12 days

0

17

Ferris 5101638

SPACER, .38 X .50 X 1.78 YZ
(Superseded to 5101638YP)

$7.99

$

Usually ships in 2-12 days

0

18

Ferris 5101206

SPACER, .51 X 1.00 X 1.47 YZ

$10.99

$

Usually ships in 2-12 days

0

19

Ferris 5101640

SPACER, .38 X .50 X .50, YZ
(Superseded to 5101640YP)

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5403789B

PLATE, SWITCH MOUNT - RED

$10.99

$

Usually ships in 2-12 days

0

21

Ferris 5403790B

PLATE, SWITCH COVER - RED

$18.99

$

Usually ships in 2-12 days

0

22

Ferris 5025213X8

PIN-CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

23

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

24

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5101642

BUSHING, FLANGED, 3/4 X 1 X 1
(Superseded to 5101642YP)

$8.49

$

Usually ships in 2-12 days

0

29

Ferris 5101186

SPACER, .51 X .75 X 2.66

$8.49

$

Usually ships in 2-12 days

0

30

Ferris 5403243B

WELD, PIVOT LINK - ACTUATOR - RED

$

$

Currently unavailable

31

Ferris 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

32

Ferris 5101207

SPACER, .52 X 1.00 X 1.38 YZ

$

$

Currently unavailable

33

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

34

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

35

Ferris 5403779B

MOUNT, LOW PROFILE SWITCH - RED

Note: (S/N: 2016359674 & Below)

$

$

Currently unavailable

36

Ferris 5101637

SPRING, .325 X .475 X 1.25, BLK E-COAT

Note: (S/N: 2016359674 & Below)

$

$

Currently unavailable

37

Ferris 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

Note: (S/N: 2016359674 & Below)

$30.99

$

In Stock, Qty 9

0

38

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

39

Ferris 5404017

WIRE HARNESS, ATTACHMENT, DECK

$236.99

$

Usually ships in 2-12 days

0

40

Ferris 5025010X18

BOLT, 1/4-20 X 2-1/4, GD5
(Superseded to 5025010X18SM)

Note: (S/N: 2016359674 & Below)

$3.49

$

In Stock, only 1 left!

0

41

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

42

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 4 left!

0

43

Ferris 5022045

PIN-COTTERLESS
(Superseded to 5022045SM)

$14.99

$

Usually ships in 2-12 days

0

44

Ferris 5025479

CLEVIS PIN, 1/2 X 1.36 SAE STANDARD
(Superseded to 5025479YP)

$3.99

$

In Stock, only 2 left!

0

45

Ferris 80002736

PIN, 3/32 X .750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

46

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

47

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

48

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

49

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

50

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

51

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

52

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

53

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

54

Ferris 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

55

Ferris 5101883

FLASHER, 90 FPM, OUT FRONT MOWER

$69.99

$

Usually ships in 2-12 days

0

56

Ferris 5101884

INDICATOR LAMP, RED, LED

$64.99

$

Usually ships in 2-12 days

0

57

Ferris 5022816

GROMMET, 1/2
(Superseded to 5022816YP)

$3.99

$

Usually ships in 2-12 days

0

58

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

59

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

60

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

61

Ferris 5050927X7

WIRE LOOM, 3/8 ID X 7" LONG

$

$

Currently unavailable

62

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

63

Ferris 5406109B

WELD, QUICK DECK LIFT PEDAL - RED

$41.99

$

Usually ships in 2-12 days

0

64

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

65

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

66

Ferris 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

67

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

68

Ferris 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

Usually ships in 2-12 days

0

69

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

70

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

71

Ferris 5410814A

WELD, SWITCH MOUNT - BLACK

Note: (S/N: 2016359675 & Above)

$

$

Currently unavailable

72

Ferris 5410817A

INDICATOR, DECK POSITION - BLK

Note: (S/N: 2016359675 & Above)

$

$

Currently unavailable

73

Ferris 5103841

SPRING, TORSION, .591ID X .40LG X .095WR
(Superseded to 5103841YP)

Note: (S/N: 2016359675 & Above)

$13.99

$

Usually ships in 2-12 days

0

74

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

Note: (S/N: 2016359675 & Above)

$3.99

$

In Stock, only 2 left!

0

75

Ferris 5103842

SWITCH, LOWER PRO, NC/NC
(Superseded to 5103842YP)

Note: (S/N: 2016359675 & Above)

$14.99

$

Usually ships in 2-12 days

0
