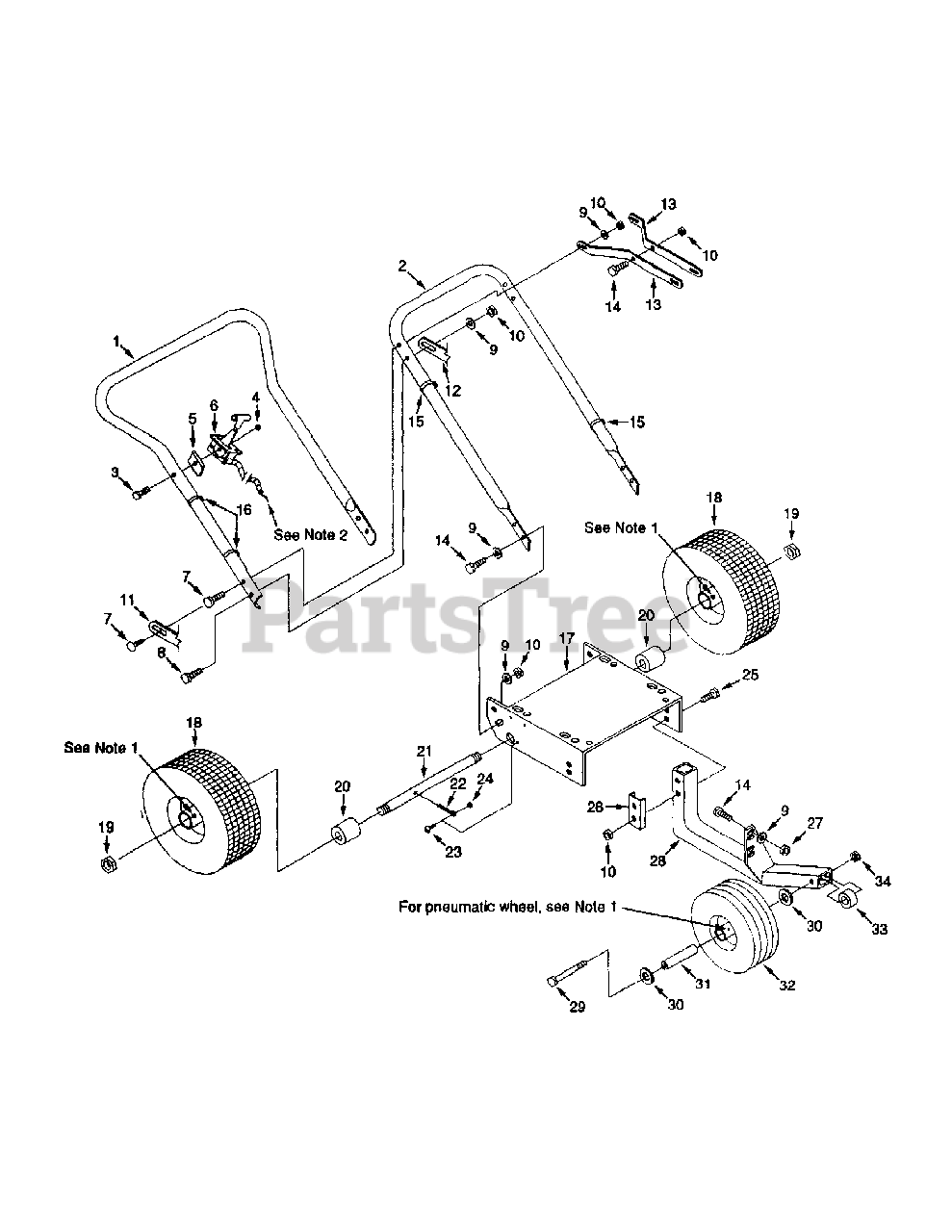

F8 (56A-688-195) - MTD Pro Tornado Blower Handle & Frame Assembly Parts Diagram

Pro Tornado Blower

Handle & Frame Assembly Parts Diagram

  • Title

1

MTD 00030478

Upper Handle

Note: NLA

$

$

Currently unavailable

2

MTD 00030452

Lower Handle

Note: NLA

$

$

Currently unavailable

3

MTD 00011446

Cap Screw, 1/4-20 x 1-1/2 Hex Head

$

$

Not available

4

MTD 00023041

Hex Nut, 1/4-20 Side Lock

$

$

Not available

5

MTD 00030489

Spacer, Throttle Mounting

Note: NLA

$

$

Not available

6

MTD 00030472P

Control Cable

$

$

Not available

7

MTD 00006129

Cap Screw, 5/16-18 x 1/3/4 Hex Head

$6.99

$

Usually ships in 3-6 days

0

8

MTD 00012382

Cap Screw, 5/16-18 x 1-1/2 Hex Head

$

$

Not available

9

MTD 00012169

Flat Washer, 5/16 SAE

$4.49

$

In Stock, only 2 left!

0

10

MTD 00022547

Hex Nut, 5/16-18 Side Lock

$

$

Not available

11

MTD n/a

Center Brace

$

$

Currently unavailable

12

MTD n/a

Center Brace

$

$

Currently unavailable

13

MTD 00030498

Center Brace, Offset

Note: NLA

$

$

Currently unavailable

14

MTD 00013406

Cap Screw, 5/16-18 x 3/4 Hex Head
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

MTD 00022802

Clamp, Throttle Cable

Note: NLA

$

$

Currently unavailable

16

MTD n/a

Clamp, Throttle Cable

$

$

Currently unavailable

17

MTD 00030499

Engine Base Plate

Note: NLA

$

$

Currently unavailable

18

MTD 00031821

Wheel Assembly, 11 x 4.00-4

Note: NLA

$

$

Not available

19

MTD 912-0413

Hex Nut, 5/8-18 Nylock, Thin
(Superseded to 712-0413)

$

$

Not available

20

MTD 00030486

Axle Spacer

Note: NLA

$

$

Currently unavailable

21

MTD 00023094

Axle

$

$

Not available

22

MTD 00060018

Cotter Pin, 3/16 x 1-1/4

$3.99

$

Usually ships in 3-6 days

0

23

MTD 00014602

Machine Screw, #10-32 x 3/4 Round Head

$

$

Not available

24

MTD 00014608

Hex Nut, 5/8-18 Nylock, Thin
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

25

MTD 00012382

Cap Screw, 5/16-18 x 1-1/2 Hex Head

$

$

Not available

26

MTD 00030493

Support Plate, Front Wheel Frame

Note: NLA

$

$

Currently unavailable

27

MTD 00034210

Hex Nut, 5/16-18 Stover Lock

$

$

Not available

28

MTD 01004764

Frame, Solid Front Wheel

$

$

Not available

29

MTD 710-0190

Cap Screw, 5/16-18 x 4 Hex Head

$7.99

$

Usually ships in 3-6 days

0

30

MTD 00006168

Flat Washer, 5/16 USS
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

31

MTD 00030488

Sleeve, Solid Front Wheel

$

$

Not available

32

MTD 00032127

Solid Wheel, 5 x 2 wutg 1/2 Bore

$

$

Not available

33

MTD 00030492

Spacer, Inside Tube

$

$

Not available

34

MTD 00022547

Hex Nut, 5/16-18 Side Lock

$

$

Not available

28

MTD 00030477

Frame, Pneumatic Front Wheel

Note: NLA

$

$

Currently unavailable

29

MTD 00034167

Cap Screw, 3/8-16 x 5 Hex Head

$

$

Not available

30

MTD 00006168

Flat Washer, 3/8 USS
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

31

MTD 00030487

Sleeve, Pneumatic Front Wheel

Note: NLA

$

$

Currently unavailable

32

MTD 00050041

Pneumatic Tire L Wheel Assembly W/Bearing

Note: NLA

$

$

Currently unavailable

33

MTD 00030492

Spacer, Inside Tube

$

$

Not available

34

MTD 712-04065

Hex Nut, 3/8-16 Nylock

$3.99

$

In Stock, Qty 20+

0
