F501 K2 AC2 (FZAZ) - Honda Tiller, Made in Japan (SN: FZAZ-1000001 - FZAZ-1099999) TRANSMISSION GEAR Parts Diagram

Tiller, Made in Japan

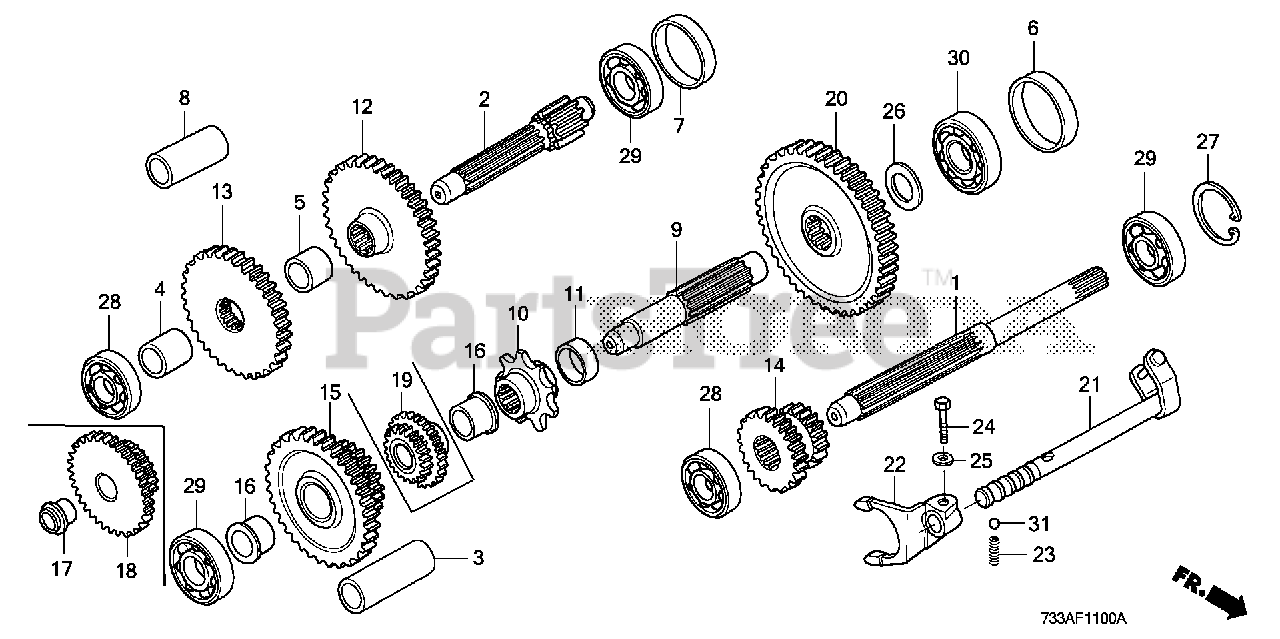

TRANSMISSION GEAR Parts Diagram

  • Title
1

Honda 23111-733-000

SHAFT, INPUT

$133.99

$

Usually ships in 3-6 days

0

2

Honda 23221-733-000

COUNTERSHAFT (13T)

$115.99

$

Usually ships in 3-6 days

0

4

Honda 23225-733-000

COLLAR A, COUNTERSHAFT

$8.49

$

Usually ships in 3-6 days

0

5

Honda 23226-733-000

COLLAR B, COUNTERSHAFT

$7.49

$

Usually ships in 3-6 days

0

6

Honda 23227-733-000

COLLAR A, DISTANCE

$9.99

$

Usually ships in 3-6 days

0

7

Honda 23228-733-000

COLLAR B, DISTANCE

$7.49

$

Usually ships in 3-6 days

0

9

Honda 23251-733-000

SHAFT, FINAL

$109.99

$

Usually ships in 3-6 days

0

10

Honda 23252-733-000

SPROCKET, DRIVE (9T)

$59.99

$

Usually ships in 3-6 days

0

11

Honda 23255-733-000

COLLAR, FINAL SHAFT

$7.49

$

Usually ships in 3-6 days

0

12

Honda 23411-733-000

GEAR, COUNTERSHAFT FIRST (50T)

$102.99

$

Usually ships in 3-6 days

0

13

Honda 23421-733-000

GEAR, COUNTERSHAFT SECOND (45T)

$92.99

$

Usually ships in 3-6 days

0

14

Honda 23451-733-000

GEAR, CHANGE (18T/23T)

$61.99

$

Usually ships in 3-6 days

0

15

Honda 23461-733-620

GEAR, REVERSE IDLE (49T-25T)

$134.99

$

Usually ships in 3-6 days

0

16

Honda 23463-733-003

COLLAR, IDLE GEAR

$12.99

$

Usually ships in 3-6 days

0

20

Honda 23581-733-000

GEAR, FINAL (58T)

$120.99

$

Usually ships in 3-6 days

0

21

Honda 24111-733-000

SHAFT, SHIFT FORK

$51.99

$

Usually ships in 3-6 days

0

22

Honda 24115-733-000

FORK, SHIFT

$31.99

$

Usually ships in 3-6 days

0

23

Honda 24271-765-000

SPRING, BALL SETTING

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90028-634-000

BOLT, SPECIAL

$8.99

$

Usually ships in 3-6 days

0

25

Honda 90411-744-000

WASHER, CONICAL SPRING

$5.49

$

Usually ships in 3-6 days

0

26

Honda 90456-155-000

WASHER (17MM)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 94520-35000

CIRCLIP, INNER (35MM)

$2.49

$

In Stock, only 2 left!

0

28

Honda 96100-60020-00

BEARING, RADIAL BALL (6002)

$14.99

$

Usually ships in 3-6 days

0

29

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

31

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

Usually ships in 3-6 days

0
