F501 K2 AC1 (FZAZ) - Honda Tiller, Made in Japan (SN: FZAZ-1000001 - FZAZ-1049999) CYLINDER Parts Diagram

Tiller, Made in Japan

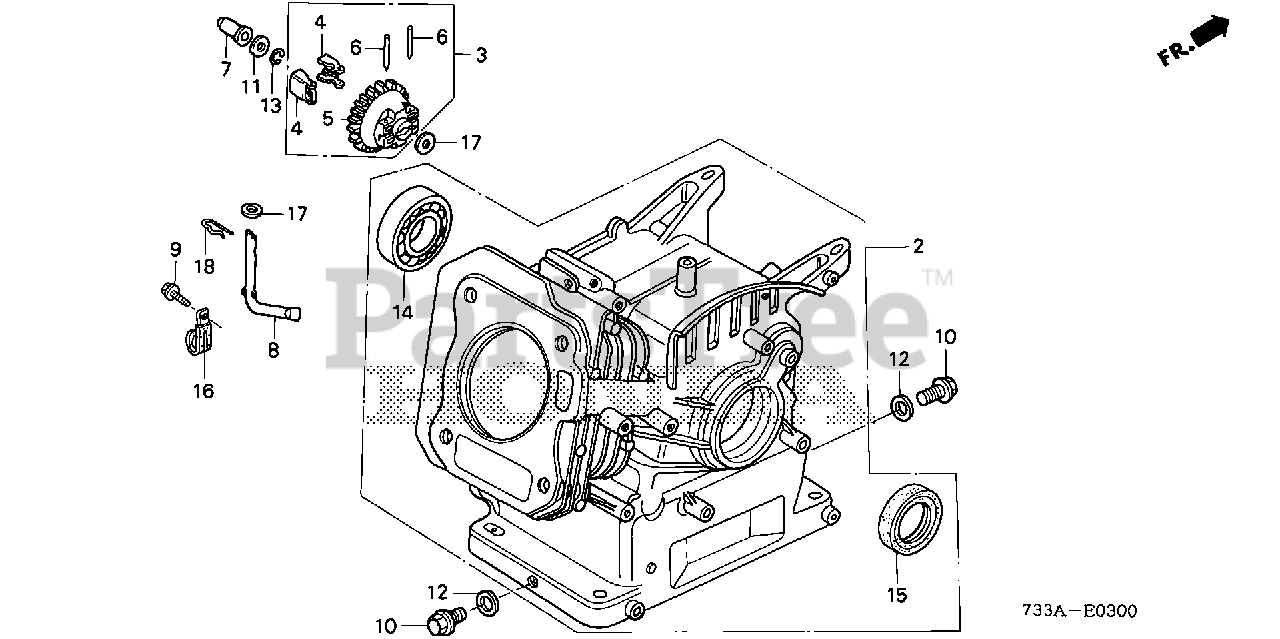

CYLINDER Parts Diagram

  • Title

2

Honda 12000-ZH8-425

CYLINDER ASSY.

Note: Use up to Engine SN 4193707.

$446.99

$

Usually ships in 3-6 days

0

2

Honda 12000-ZH8-425

CYLINDER ASSY.

Note: Use from Engine SN 4193708 to 7438282.

$446.99

$

Usually ships in 3-6 days

0

2

Honda 12000-ZH8-425

CYLINDER ASSY.

Note: Use from Engine SN 7438283.

$446.99

$

Usually ships in 3-6 days

0

3

Honda 16510-ZE1-000

GOVERNOR ASSY.

$16.99

$

In Stock, only 3 left!

0

4

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

5

Honda 16512-ZE1-000

HOLDER, GOVERNOR WEIGHT

$24.99

$

In Stock, only 1 left!

0

6

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

7

Honda 16531-ZE1-000

SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 11

0

8

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

11

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

$1.99

$

In Stock, Qty 5

0

12

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

13

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

14

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205TMB) (NTN)

$24.99

$

In Stock, only 3 left!

0

15

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$8.99

$

In Stock, Qty 8

0

15

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: Use up to Engine SN 8565637.

$8.99

$

In Stock, Qty 8

0

17

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0
