F501 K2 AC1/B (FZAZ) - Honda Tiller, Made in Japan (SN: FZAZ-1053189 - FZAZ-1199999) ROTOR (AC1/B) Parts Diagram

Tiller, Made in Japan

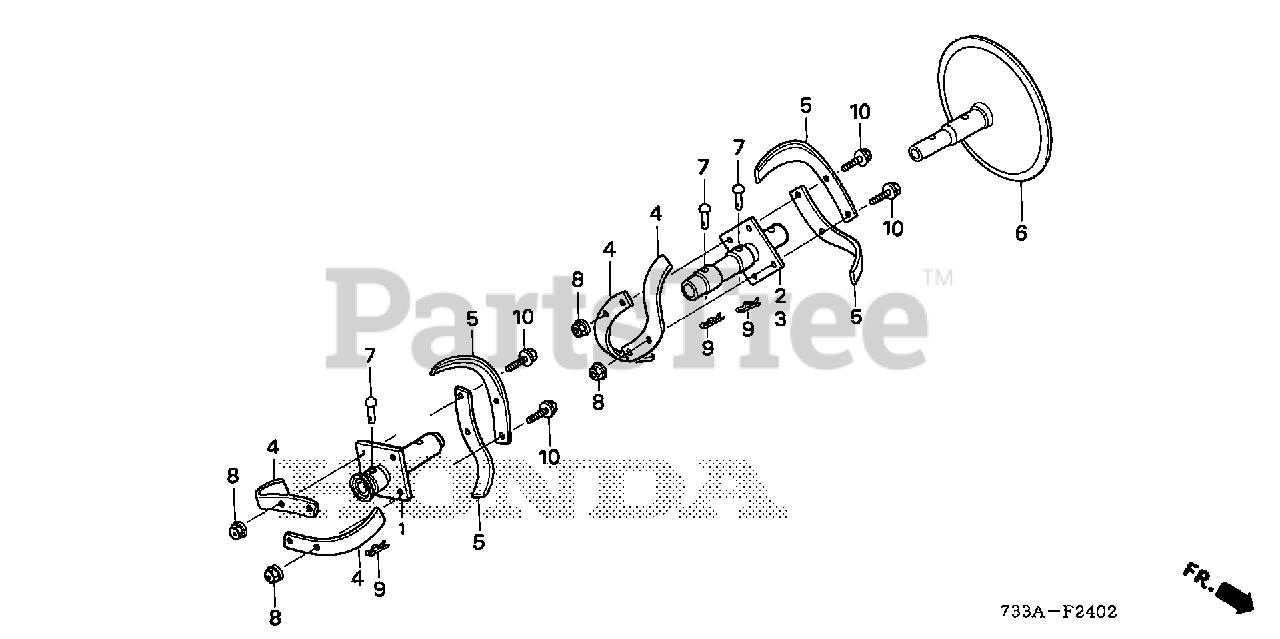

ROTOR (AC1/B) Parts Diagram

  • Title
1

Honda 72110-733-W70

PIPE (INNER)

$73.99

$

Usually ships in 3-6 days

0

2

Honda 72165-733-W70

PIPE, R. (OUTER)

$71.99

$

Usually ships in 3-6 days

0

3

Honda 72175-733-W70

PIPE, L. (OUTER)

$71.99

$

Usually ships in 3-6 days

0

4

Honda 72461-733-750

SEE PART DETAILS - PRI; TINE A, ROTARY

$21.99

$

In Stock, Qty 13

0

5

Honda 72465-733-750

TINE B, ROTARY

$21.99

$

In Stock, Qty 12

0

6

Honda 72470-733-750

DISK, SIDE

$81.99

$

Usually ships in 3-6 days

0

7

Honda 90757-723-670

PIN (10X53.5)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

9

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0

10

Honda 95701-10025-00

BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0
