F501 K2 A1 (FZAZ) - Honda Tiller, Made in Japan (SN: FZAZ-1000001 - FZAZ-1099999) CRANKCASE COVER Parts Diagram

Tiller, Made in Japan

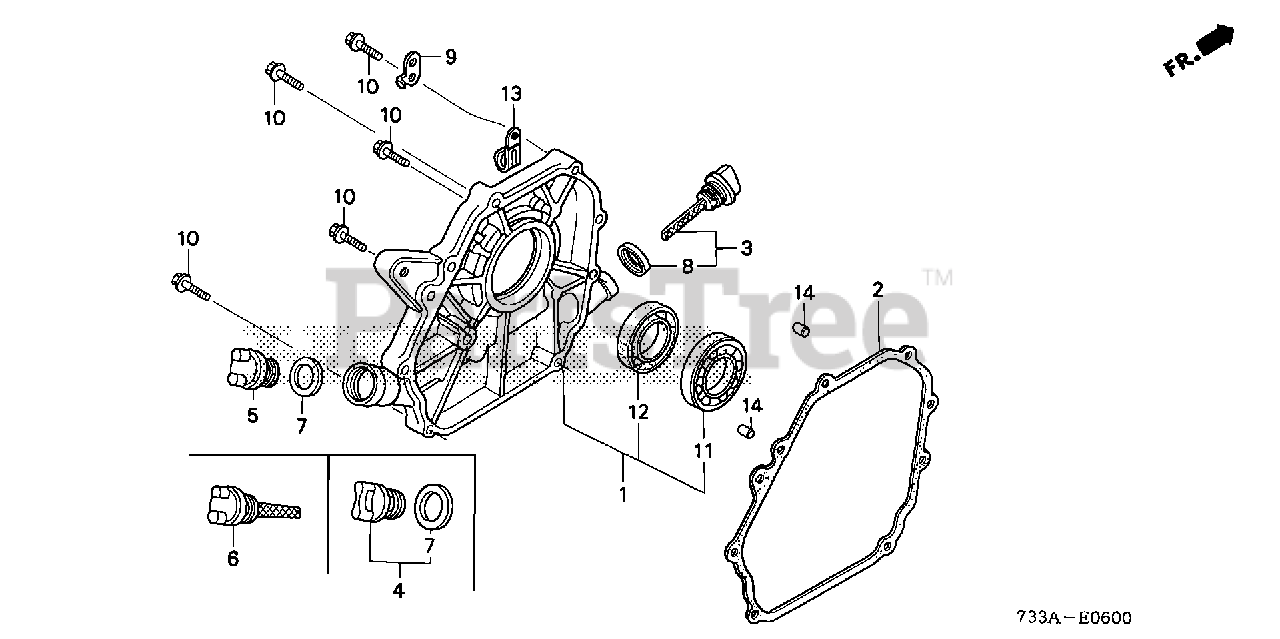

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE1-020

COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 11381-ZH8-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (NON-ASBESTOS)

$7.99

$

In Stock, Qty 10

0

3

Honda 15600-ZE1-000

SEE PART DETAILS - SUP; CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-ZE1-003)

Note: Use up to Engine SN 2966709.

$1.49

$

In Stock, only 3 left!

0

3

Honda 15600-ZE1-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, only 3 left!

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: Use from Engine SN 2966710.

$6.99

$

In Stock, only 1 left!

0

5

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER

Note: Use up to Engine SN 2966709.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: Use up to Engine SN 2966709.

$5.99

$

In Stock, Qty 5

0

7

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

Note: Use from Engine SN 2966710.

$3.49

$

In Stock, only 3 left!

0

8

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 3 left!

0

9

Honda 32302-734-K60

STAY, WIRE CLIP (A)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 95701-08032-00

BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

11

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0

12

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 7

0

12

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 7

0

14

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
