F501 K1 A2 (F501) - Honda Tiller, Made in Japan (SN: F501-1100001 - F501-1199999) PISTON + CRANKSHAFT Parts Diagram

Tiller, Made in Japan

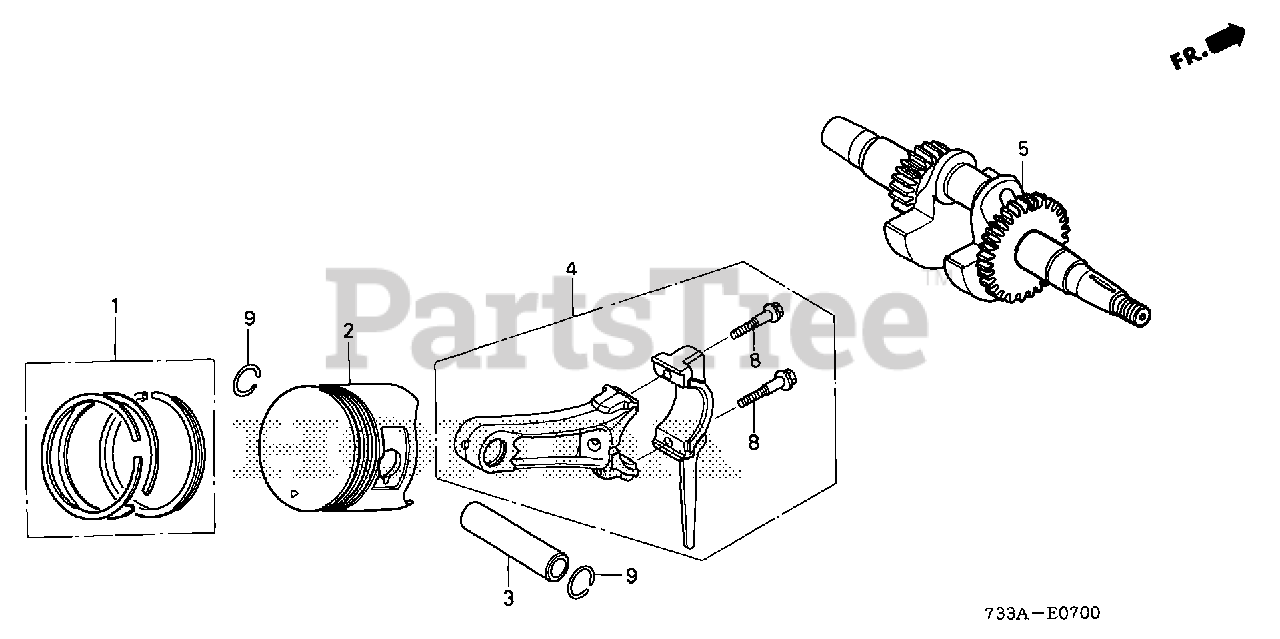

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (NIPPON)

Note: (Optional).

$

$

Not available

1

Honda 13012-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (NIPPON)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZE1-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON) (NA USE ALT:13013-ZE1-014)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZE1-014

RING SET, PISTON (0.75) (TEIKOKU)
(Superseded to 13013-ZE1-013)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZE1-010

SEE PART DETAILS - PRI; PISTON (STD) (NOT AVAILABLE)

$

$

Not available

2

Honda 13102-ZE1-010

PISTON (0.25) (NOT AVAILABLE)

Note: (Optional).

$43.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE1-010

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZE1-010

PISTON (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

3

Honda 13111-ZE1-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 132A0-ZE1-000

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-ZE1-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z0T-800)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (TH)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

5

Honda 13310-733-750

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

9

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 20+

0
