F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) ROTOR + SIDE DISK Parts Diagram

Tiller, Made in Japan

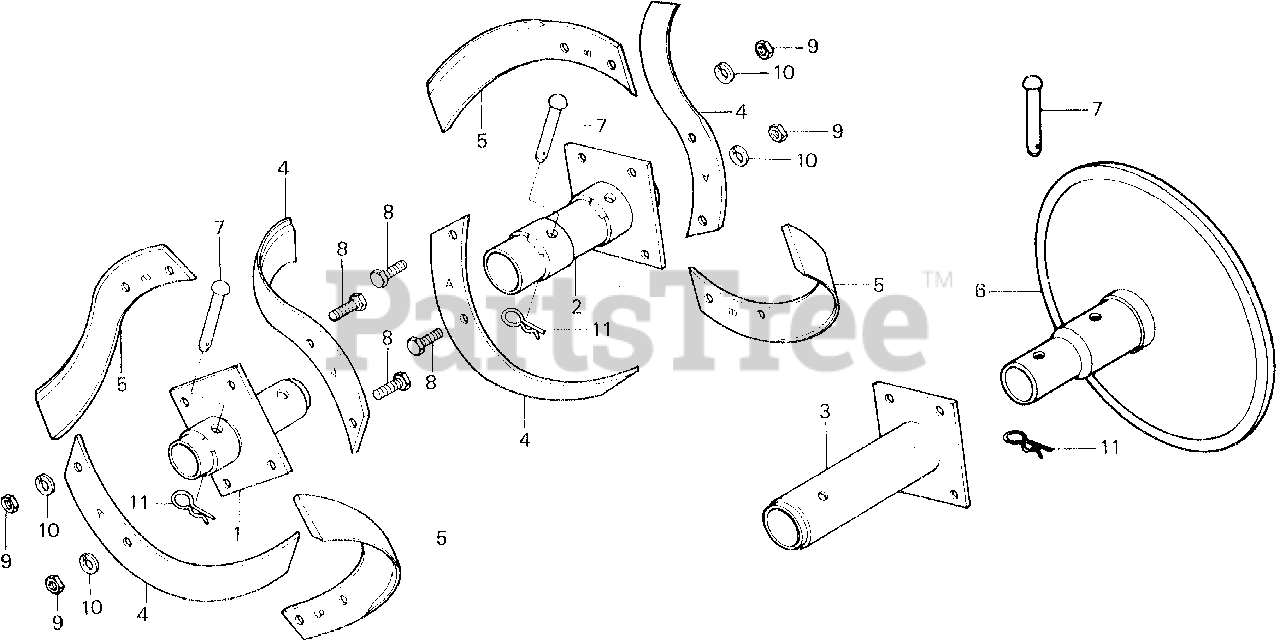

ROTOR + SIDE DISK Parts Diagram

  • Title

1

Honda 72110-723-670

PIPE (INNER)

$

$

Currently unavailable

2

Honda 72120-723-671

PIPE (OUTER) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 72130-733-760

SEE PART DETAILS - PRI; PIPE, EXTENSION

$101.99

$

Usually ships in 3-6 days

0

4

Honda 72461-723-670

SEE PART DETAILS - SUP; TINE A, ROTOR
(Superseded to 72461-733-750)

$21.99

$

In Stock, Qty 13

0

4

Honda 72461-733-750

SEE PART DETAILS - PRI; TINE A, ROTARY

$21.99

$

In Stock, Qty 13

0

5

Honda 72465-723-670

TINE B, ROTOR
(Superseded to 72465-733-750)

$21.99

$

In Stock, Qty 12

0

5

Honda 72465-733-750

TINE B, ROTARY

$21.99

$

In Stock, Qty 12

0

6

Honda 72470-723-660

DISK, SIDE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 90757-723-670

PIN (10X53.5)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 92101-10025-0A

BOLT, HEX. (10X25)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

10

Honda 94111-10000

WASHER, SPRING (10MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0
