F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) PISTON + CONNECTING ROD Parts Diagram

Tiller, Made in Japan

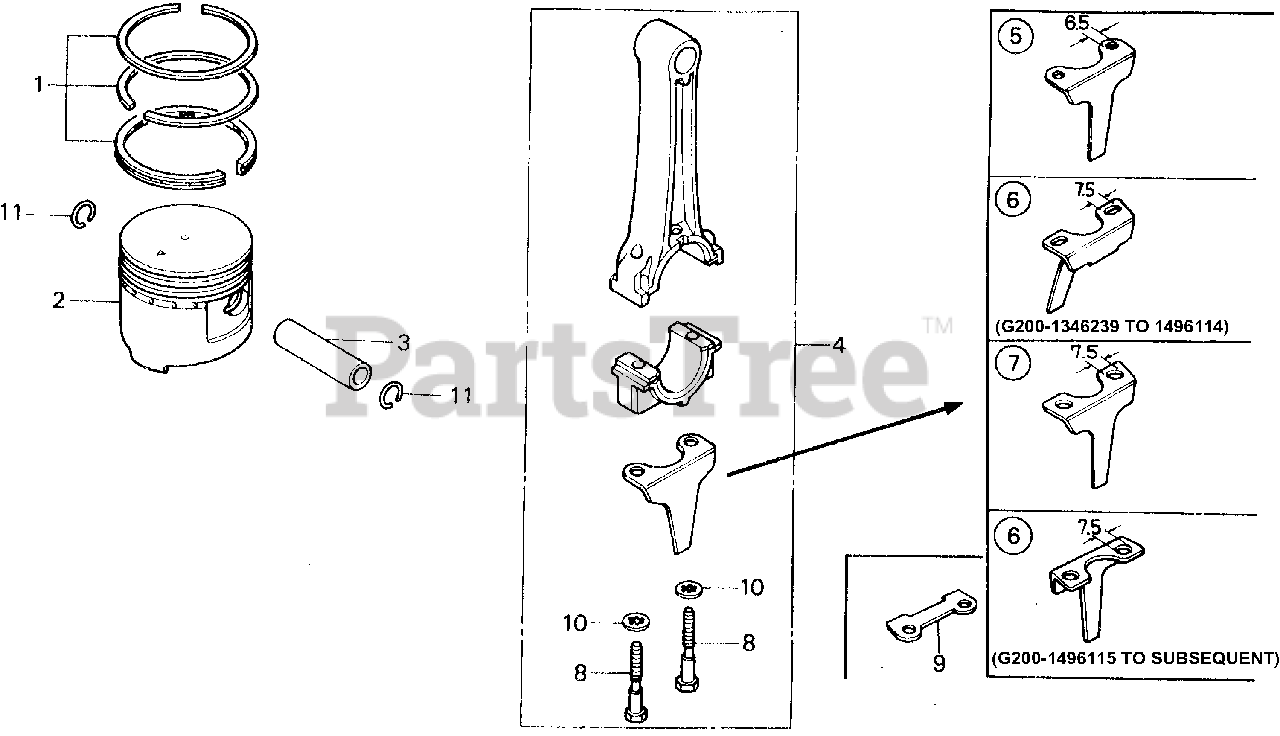

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$45.99

$

Usually ships in 3-6 days

0

1

Honda 13010-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NIPPON)

Note: Use from Engine SN 1479289.

$

$

Not available

1

Honda 13011-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25)

$

$

Not available

1

Honda 13011-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.25)
(Superseded to 13011-YA0-004)

$

$

Not available

1

Honda 13012-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50)

$50.99

$

Usually ships in 3-6 days

0

1

Honda 13012-883-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) Use up to Engine SN 1152170.

$

$

Currently unavailable

1

Honda 13013-YA0-004

RING SET, PISTON (0.75)

$50.99

$

Usually ships in 3-6 days

0

2

Honda 13101-883-003

SEE PART DETAILS - PRI; PISTON (STD)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 13102-883-003

PISTON (0.25)

$

$

Not available

2

Honda 13103-883-003

PISTON (0.50)

$

$

Not available

2

Honda 13104-883-003

PISTON (0.75)

$57.99

$

Usually ships in 3-6 days

0

3

Honda 13111-883-000

PIN, PISTON

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-883-060)

Note: Use up to Engine SN 1179851.

$

$

Not available

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING Use from Engine SN 1179852 to 1269498.
(Superseded to 13200-883-060)

$

$

Not available

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-883-060)

Note: Use from Engine SN 1269499.

$

$

Not available

4

Honda 13200-883-040

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-883-060)

Note: Use up to Engine SN 1346238.

$

$

Not available

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use up to Engine SN 1179851.

$

$

Not available

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING Use from Engine SN 1179852 to 1269498.

$

$

Not available

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use from Engine SN 1269499.

$

$

Not available

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use up to Engine SN 1346238.

$

$

Not available

4

Honda 13200-883-345

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING

$

$

Currently unavailable

5

Honda 13281-883-000

DIPPER, CONNECTING ROD

Note: Use up to Engine SN 1179851.

$

$

Currently unavailable

5

Honda 13281-883-010

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use from Engine SN 1179852 to 1346238.

$

$

Not available

6

Honda 13281-883-030

DIPPER, CONNECTING ROD

Note: Use from Engine SN 1346239.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 13281-883-328

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use up to Engine SN 1346238.

$

$

Currently unavailable

8

Honda 90001-883-000

SEE PART DETAILS - SUP; BOLT, CONNECTING ROD (6MM)

Note: Use up to Engine SN 1269498.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90001-883-010

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (6MM) (NOT AVAILABLE)

Note: Use from Engine SN 1269499 to 1346238.

$

$

Currently unavailable

8

Honda 90001-883-020

BOLT, CONNECTING ROD (7MM)

Note: Use from Engine SN 1346239.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90431-883-000

WASHER B, CONNECTING ROD

Note: Use up to Engine SN 1269498.

$3.49

$

In Stock, only 2 left!

0

10

Honda 90432-883-000

WASHER, LOCK (6MM) (N/A: SEE ASSEMBLY)

Note: Use from Engine SN 1269499 to 1346238.

$

$

Currently unavailable

10

Honda 90432-889-003

WASHER, LOCK (7MM)

Note: Use from Engine SN 1346239.

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

Note: Use from Engine SN 1029555.

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
