F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) HANDLE COLUMN + CHANGE LEVER Parts Diagram

Tiller, Made in Japan

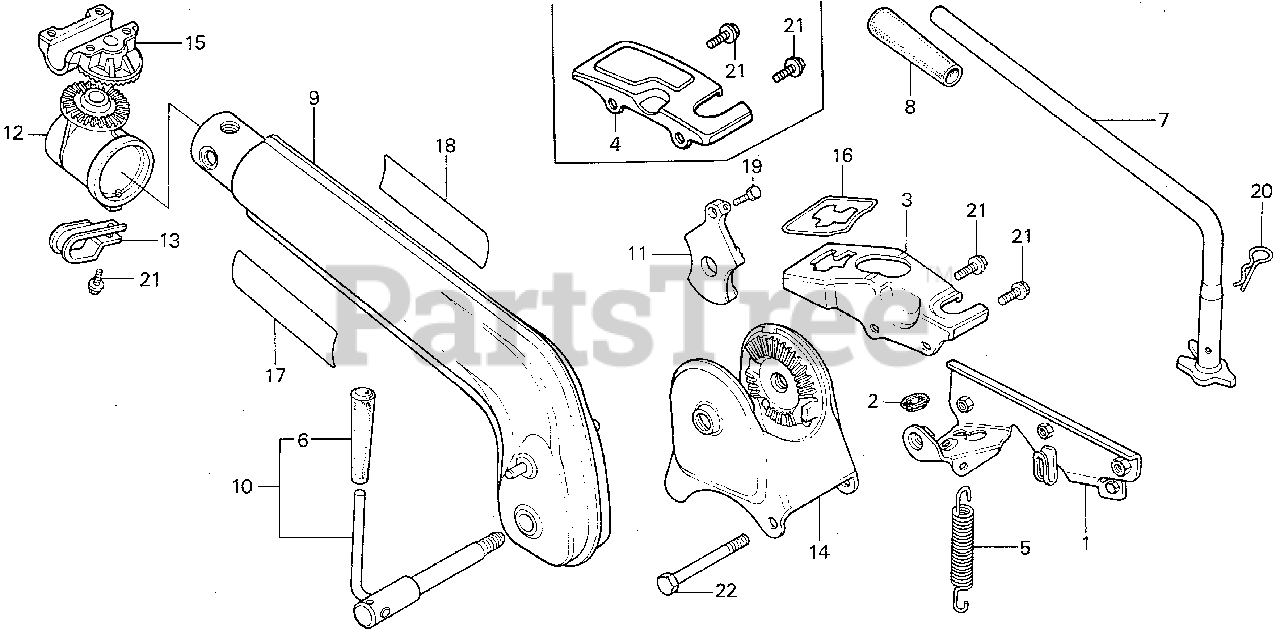

HANDLE COLUMN + CHANGE LEVER Parts Diagram

  • Title

1

Honda 11801-723-000

STAY, ENGINE

$

$

Not available

2

Honda 17913-723-000

GROMMET, THROTTLE CABLE

$

$

Not available

3

Honda 21311-723-000

COVER, CHANGE

$

$

Not available

5

Honda 22531-719-000

SPRING, BELT TENSIONER

$12.99

$

Usually ships in 3-6 days

0

6

Honda 22542-900-000

GRIP, LEVER

$7.49

$

Usually ships in 3-6 days

0

7

Honda 24410-723-000

LEVER, CHANGE

$

$

Not available

8

Honda 24411-719-000

GRIP, CHANGE LEVER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 50110-723-670H

COLUMN, HANDLE *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 50130-723-670

HANDLE, ADJUSTING

$45.99

$

Usually ships in 3-6 days

0

11

Honda 50151-723-000

SWINGARM

$

$

Not available

12

Honda 50171-715-000

BASE, SWING (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 50175-723-670

CLIP, CABLE

$

$

Not available

14

Honda 50210-723-010ZA

HOLDER, COLUMN

$

$

Not available

15

Honda 53131-715-010

FRAME, SWING HANDLE

$

$

Not available

16

Honda 87502-723-000

MARK, CHANGE

$

$

Not available

17

Honda 87505-723-671

CAUTION, OPERATOR

Note: Use up to Frame SN 1010751.

$

$

Currently unavailable

17

Honda 87505-723-710

CAUTION, OPERATOR

Note: Use from Frame SN 1010752.

$

$

Not available

18

Honda 87521-723-780

PLATE, EX. GAS CAUTION

$

$

Not available

19

Honda 92101-06010-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X10)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94252-12000

PIN, LOCK (12MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95801-10095-00

BOLT, FLANGE (10X95)

$5.99

$

In Stock, only 1 left!

0
