F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) FUEL TANK + FUEL VALVE Parts Diagram

Tiller, Made in Japan

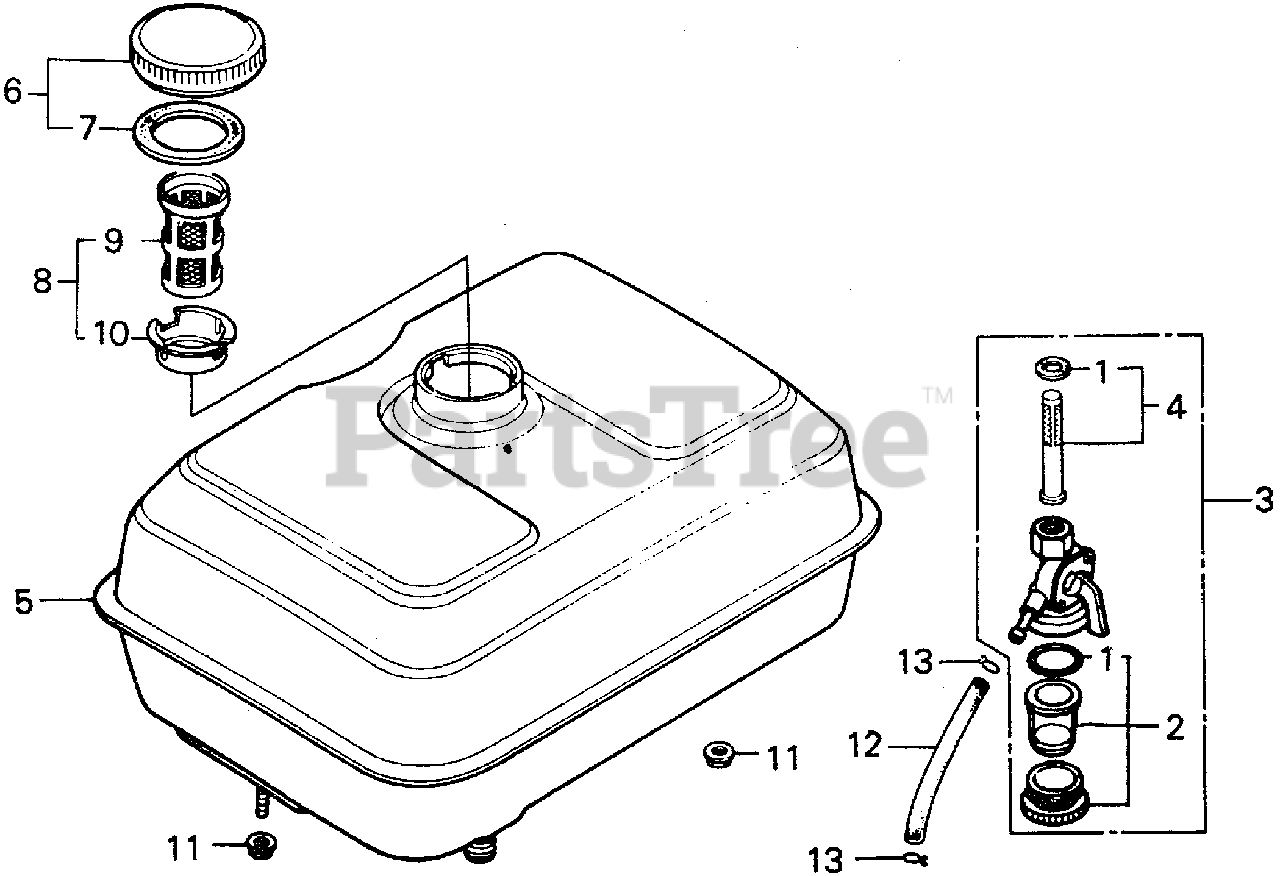

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$12.99

$

In Stock, only 1 left!

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

3

Honda 16950-883-045

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$57.99

$

In Stock, only 1 left!

0

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

$57.99

$

In Stock, only 1 left!

0

4

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

5

Honda 06172-883-305XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Engine SN 1543257.

$

$

Not available

5

Honda 17510-883-050XC

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17510-883-070ZA)

Note: Use from Engine SN 1543258.

$

$

Not available

5

Honda 17510-883-070ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1543258.

$

$

Not available

6

Honda 17620-ZA7-003

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use up to Engine SN 1543257.

$

$

Not available

6

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1543258.

$

$

Not available

7

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

Note: Use up to Engine SN 1543257.

$3.49

$

In Stock, only 2 left!

0

7

Honda 17631-329-000

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP

Note: Use from Engine SN 1543258.

$

$

Currently unavailable

7

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use from Engine SN 1543258.

$

$

Not available

8

Honda 17670-887-790

SEE PART DETAILS - PRI; FILTER, FUEL (NOT AVAILABLE)

Note: Use up to Engine SN 1543257.

$

$

Not available

9

Honda 17672-887-790

FILTER, FUEL (NOT AVAILABLE)

Note: Use up to Engine SN 1543257.

$

$

Currently unavailable

9

Honda 17672-887-791

FILTER, FUEL

Note: Use from Engine SN 1543258.

$18.99

$

In Stock, only 4 left!

0

10

Honda 17673-883-300

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER

Note: Use up to Engine SN 1543257.

$9.49

$

In Stock, only 4 left!

0

10

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use from Engine SN 1543258.

$14.99

$

In Stock, only 1 left!

0

11

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

12

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X65)

Note: Use up to Engine SN 1140922.

$82.99

$

In Stock, only 1 left!

0

12

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X70)

Note: Use from Engine SN 1140923.

$82.99

$

In Stock, only 1 left!

0

13

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0
