F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) CONTROL Parts Diagram

Tiller, Made in Japan

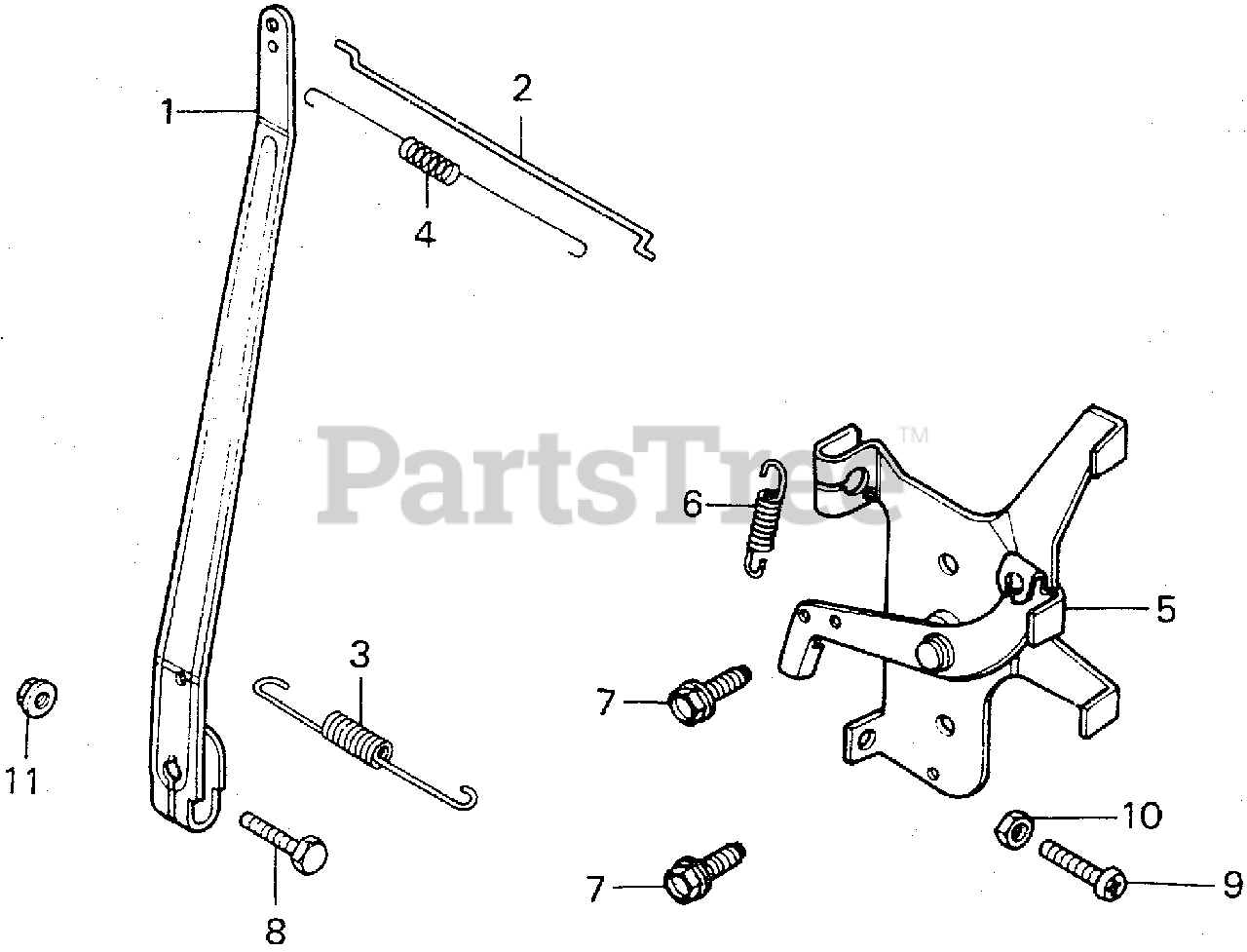

CONTROL Parts Diagram

  • Title

1

Honda 16551-883-000

ARM, GOVERNOR

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16555-883-010

ROD, GOVERNOR

$

$

Not available

3

Honda 16561-883-010

SPRING, GOVERNOR

$5.99

$

In Stock, only 1 left!

0

4

Honda 16562-883-000

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1251483.

$

$

Not available

4

Honda 16562-883-010

SPRING, THROTTLE RETURN

Note: Use from Engine SN 1251484.

$4.99

$

In Stock, Qty 8

0

5

Honda 16580-723-950

LEVER, CONTROL

$

$

Not available

6

Honda 16592-883-310

SPRING, CABLE RETURN

$3.49

$

In Stock, only 2 left!

0

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

8

Honda 92101-06020-0A

BOLT, HEX. (6X20)

Note: Use up to Engine SN 1484497.

$1.49

$

Usually ships in 3-6 days

0

8

Honda 92101-06025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

Note: Use from Engine SN 1484498.

$2.49

$

In Stock, Qty 10

0

9

Honda 93500-06020-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
