F500 A2 (F500) - Honda Tiller, Made in Japan (SN: F500-1000003 - F500-9999999) BELT COVER + DRIVE PULLEY Parts Diagram

Tiller, Made in Japan

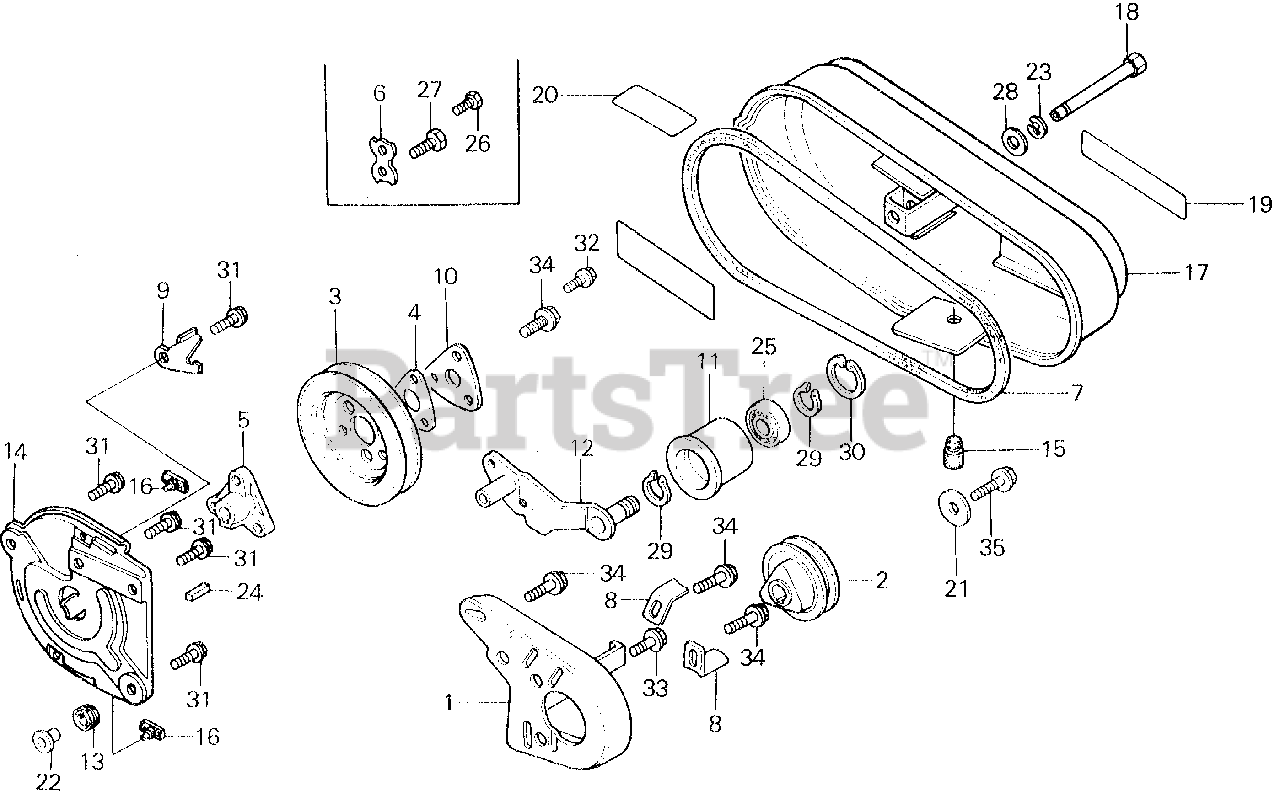

BELT COVER + DRIVE PULLEY Parts Diagram

  • Title

1

Honda 11802-723-671

PLATE, ENGINE ADJUSTING

$

$

Not available

2

Honda 22411-723-660

SEE PART DETAILS - SUP; PULLEY, DRIVEN (80MM)

$

$

Not available

3

Honda 22414-723-000

PULLEY (125MM)

$59.99

$

Usually ships in 3-6 days

0

4

Honda 22416-723-670

SPACER, PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 22426-723-000

BOSS, DRIVEN PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 22428-723-000

WASHER, LOCK

Note: Use up to Frame SN 1001441.

$

$

Not available

7

Honda 22431-723-672

SEE PART DETAILS - PRI; V-BELT (35)

$40.99

$

Usually ships in 3-6 days

0

8

Honda 22443-723-670

STOPPER E, BELT

$11.99

$

Usually ships in 3-6 days

0

9

Honda 22444-723-670

STOPPER F, BELT

$

$

Not available

10

Honda 22461-723-000

PLATE, PULLEY

$

$

Not available

11

Honda 22511-723-000

ROLLER, TENSIONER

$

$

Not available

12

Honda 22520-723-000

ARM, TENSIONER

$

$

Currently unavailable

13

Honda 32983-028-000

GROMMET, WIRE HARNESS

$1.99

$

Usually ships in 3-6 days

0

14

Honda 50650-723-000

STAY, BELT COVER

$

$

Not available

15

Honda 61112-715-000

STOPPER, TENSIONER ARM

Note: Use from Frame SN 1010142.

$

$

Not available

16

Honda 62611-727-000

GROMMET, BELT COVER

$4.49

$

Usually ships in 3-6 days

0

17

Honda 63610-723-010XC

COVER, BELT *NH31* (MCKINLEY WHITE)

Note: Use up to Frame SN 1010141.

$

$

Currently unavailable

17

Honda 63610-723-640XC

COVER, BELT *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

Note: Use from Frame SN 1010142.

$

$

Currently unavailable

18

Honda 63615-723-670

LATCH, BELT COVER

$26.99

$

Usually ships in 3-6 days

0

19

Honda 87501-723-660

MARK, BELT COVER (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 87504-723-671

CAUTION, BELT COVER (ENGLISH)

$

$

Not available

21

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90563-045-000

WASHER, NUMBER BRACKET MOUNTING

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90652-719-000

E-RING (9MM)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90741-715-000

KEY, FLAT (4X4X14)

$10.99

$

Usually ships in 3-6 days

0

25

Honda 91058-719-003

BEARING, RADIAL BALL (6202G)

$33.99

$

Usually ships in 3-6 days

0

26

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

Note: Use up to Frame SN 1001441.

$1.99

$

In Stock, Qty 20+

0

27

Honda 92101-08016-0A

BOLT, HEX. (8X16)

Note: Use up to Frame SN 1001441.

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94101-10000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94511-15000

CIRCLIP, OUTER (15MM)

$0.99

$

In Stock, only 2 left!

0

30

Honda 94521-35000

CIRCLIP (INNER) (35MM) (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

32

Honda 95701-06016-08

BOLT, FLANGE (6X16)

Note: Use from Frame SN 1001442.

$1.99

$

In Stock, Qty 5

0

33

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, only 2 left!

0

34

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

Note: Use up to Frame SN 1001441.

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

Note: Use from Frame SN 1001442.

$2.49

$

In Stock, Qty 20+

0

35

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0
