F500 A1 (F500) - Honda Tiller, Made in Japan (SN: F500-1000001 - F500-9999999) WHEEL SHAFT + FINAL CHAIN Parts Diagram

Tiller, Made in Japan

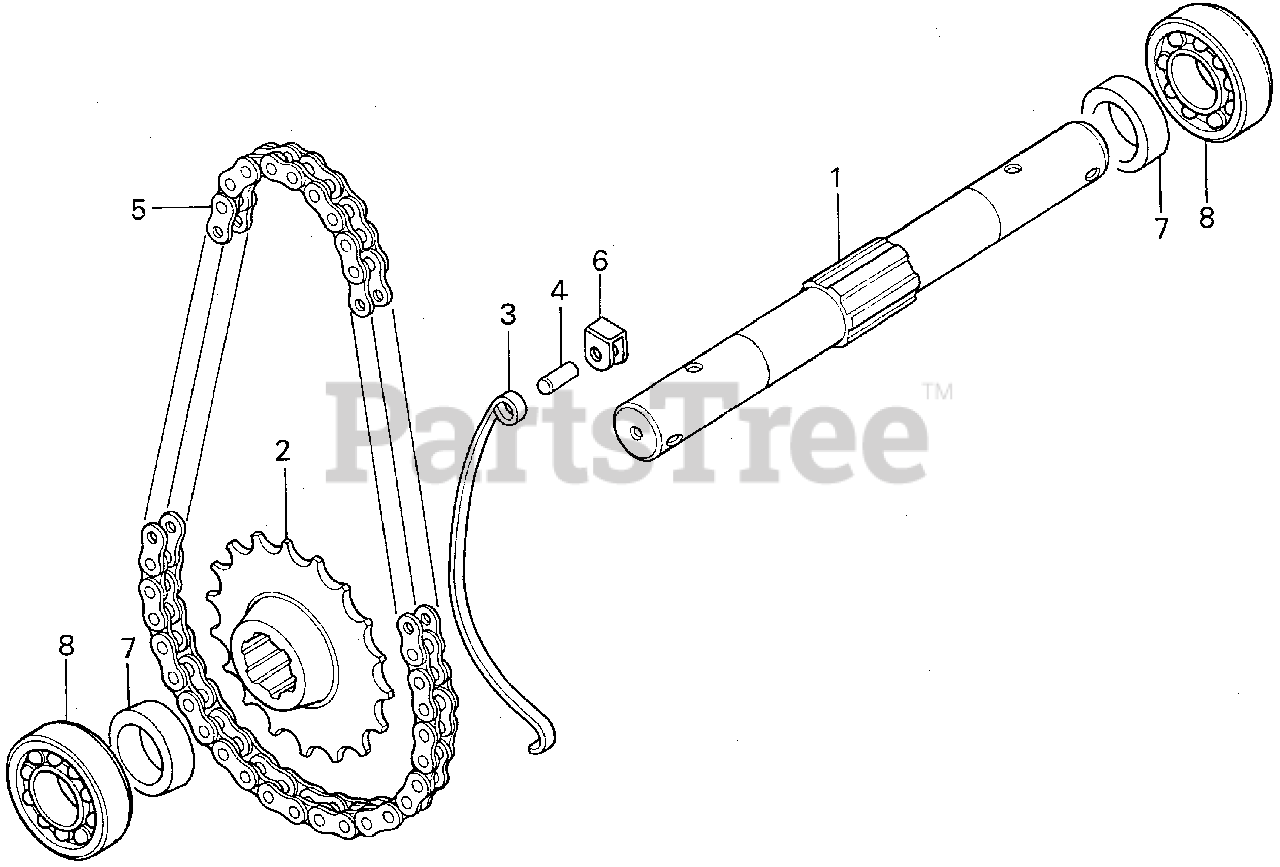

WHEEL SHAFT + FINAL CHAIN Parts Diagram

  • Title

1

Honda 23371-723-671

SEE PART DETAILS - PRI; SHAFT, WHEEL

$

$

Currently unavailable

2

Honda 23372-723-671

SEE PART DETAILS - SUP; SPROCKET, DRIVEN
(Superseded to 23372-723-672)

$84.99

$

Usually ships in 3-6 days

0

2

Honda 23372-723-672

SEE PART DETAILS - PRI; SPROCKET, DRIVEN (18T)

$84.99

$

Usually ships in 3-6 days

0

3

Honda 23661-723-000

TENSIONER, CHAIN (NOT AVAILABLE)

Note: Use up to Frame SN 1012856.

$

$

Currently unavailable

3

Honda 23661-723-910

TENSIONER, CHAIN (NOT AVAILABLE)

Note: Use from Frame SN 1012857.

$

$

Not available

4

Honda 23662-708-000

SHAFT, TENSIONER (NOT AVAILABLE)

Note: Use up to Frame SN 1012856.

$

$

Currently unavailable

4

Honda 23662-723-910

SHAFT, TENSIONER

Note: Use from Frame SN 1012857.

$

$

Not available

5

Honda 23861-733-003

CHAIN, FINAL (RK520KFX44LE)

$111.99

$

Usually ships in 3-6 days

0

6

Honda 40362-723-000

SPACER, CHAIN TENSIONER

Note: Use from Frame SN 1012857.

$

$

Not available

7

Honda 90462-723-670

COLLAR, WHEEL SHAFT

Note: Use from Frame SN 1012857.

$

$

Currently unavailable

8

Honda 96100-60070

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6007)

$

$

Not available

8

Honda 96100-60070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6007)

$27.99

$

Usually ships in 3-6 days

0
