F500 A1 (F500) - Honda Tiller, Made in Japan (SN: F500-1000001 - F500-9999999) TRANSMISSION CASE Parts Diagram

Tiller, Made in Japan

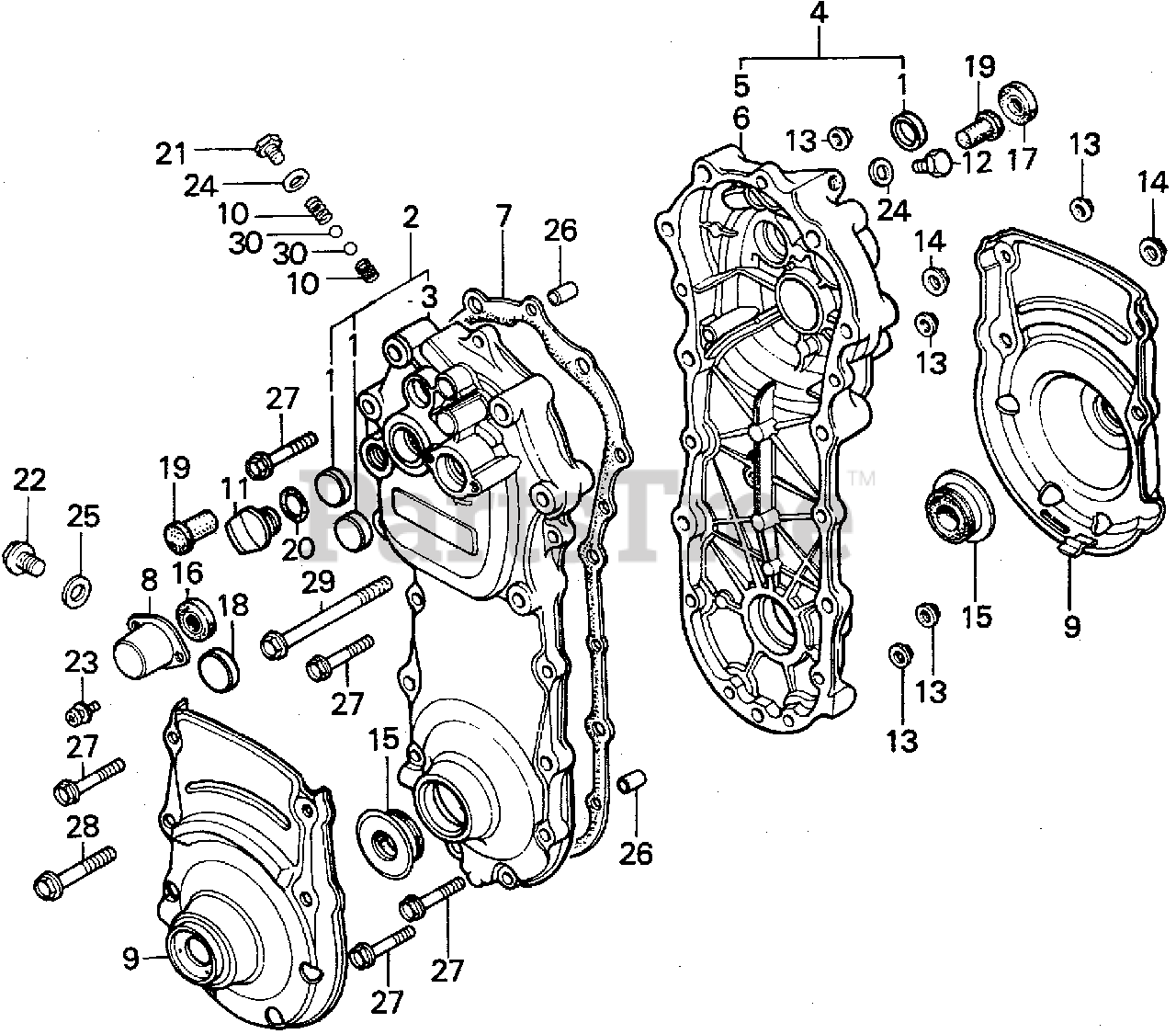

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 11105-657-300

PLUG, SEALING (30MM)

$8.49

$

Usually ships in 3-6 days

0

2

Honda 21110-723-660

CASE ASSY., R. TRANSMISSION

Note: Use up to Frame SN 1012856.

$

$

Not available

3

Honda 21111-723-751

CASE, R. TRANSMISSION (NOT AVAILABLE)

Note: Use from Frame SN 1012857.

$

$

Currently unavailable

4

Honda 21210-723-670

CASE ASSY., L. TRANSMISSION (NOT AVAILABLE)

Note: Use up to Frame SN 1012856.

$

$

Currently unavailable

5

Honda 21211-723-670

CASE, L. TRANSMISSION

Note: Use up to Frame SN 1012856.

$

$

Currently unavailable

6

Honda 21211-723-751

CASE, L. TRANSMISSION

Note: Use from Frame SN 1012857.

$

$

Not available

7

Honda 21281-723-000

GASKET, TRANSMISSION CASE (NOT AVAILABLE)

Note: Use up to Frame SN 1012856.

$

$

Currently unavailable

7

Honda 21281-723-307

GASKET, TRANSMISSION CASE

Note: Use from Frame SN 1012857.

$

$

Not available

9

Honda 21911-723-670

PROTECTOR, CASE

Note: Use up to Frame SN 1012856.

$

$

Currently unavailable

9

Honda 21911-723-671

PROTECTOR, CASE (NOT AVAILABLE)

Note: Use from Frame SN 1012857.

$

$

Currently unavailable

11

Honda 25611-733-000

CAP, OIL

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90101-721-000

BOLT, HEX. (8X10)

$

$

Not available

13

Honda 90301-SD5-000

NUT, FLANGE (6MM)

Note: Use up to Frame SN 1013566.

$

$

Not available

13

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Frame SN 1013567.

$0.99

$

In Stock, Qty 20+

0

14

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 91205-723-671

SEE PART DETAILS - SUP; SEAL, WATER (48X32X19)
(Superseded to 91205-723-672)

Note: Use up to Frame SN 1012856.

$18.99

$

In Stock, only 2 left!

0

15

Honda 91205-723-672

SEE PART DETAILS - PRI; SEAL, WATER

$18.99

$

In Stock, only 2 left!

0

16

Honda 91201-862-003

OIL SEAL (17X30X8)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 91252-721-003

OIL SEAL (15X30X7)

$13.99

$

Usually ships in 3-6 days

0

18

Honda 91255-723-671

PLUG, SEAL (22X7)

$14.99

$

In Stock, only 1 left!

0

19

Honda 91261-719-000

PLUG, BLIND (12MM)

$

$

Not available

20

Honda 91303-800-000

O-RING (16MM)

$2.99

$

In Stock, only 1 left!

0

21

Honda 92101-08010-0A

BOLT, HEX. (8X10)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

24

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

27

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0

28

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

28

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

29

Honda 95701-08080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X80)

$2.49

$

Usually ships in 3-6 days

0
