F500 A1 (F500) - Honda Tiller, Made in Japan (SN: F500-1000001 - F500-9999999) FAN COVER + SIDE PLATE Parts Diagram

Tiller, Made in Japan

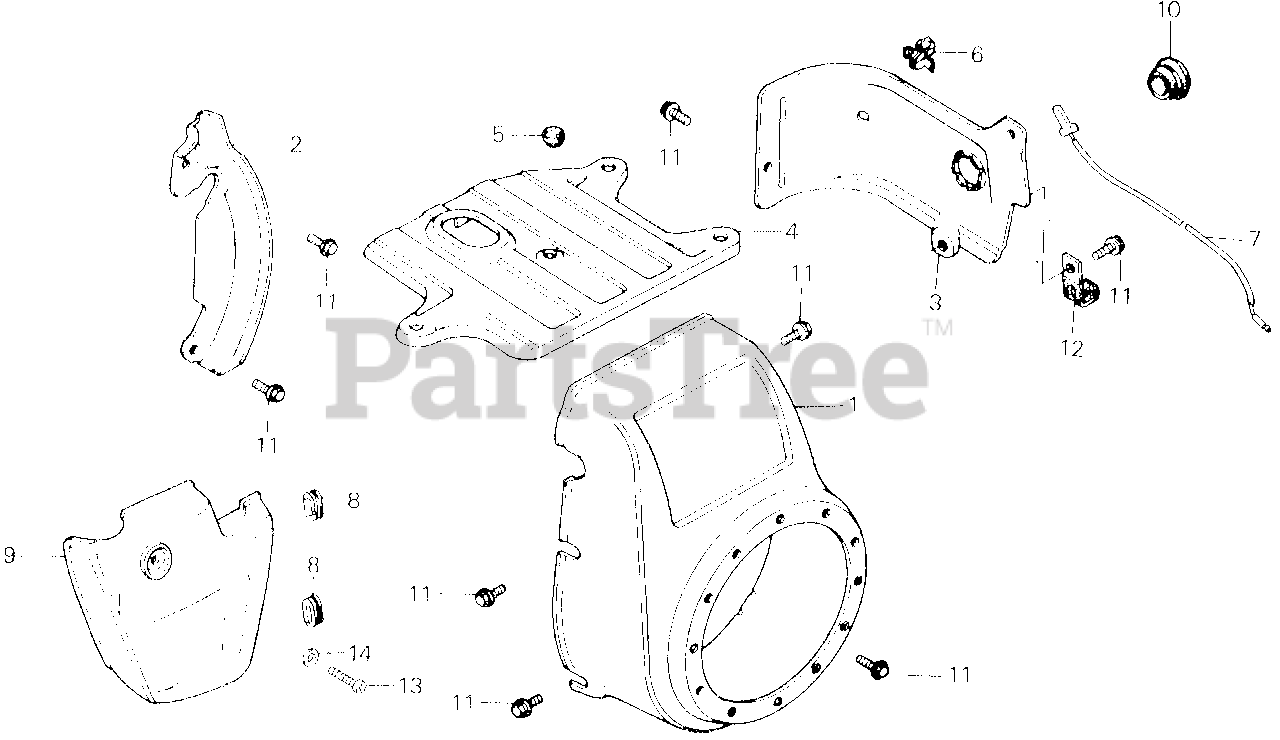

FAN COVER + SIDE PLATE Parts Diagram

  • Title

1

Honda 19610-883-R90ZB

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)

$

$

Not available

2

Honda 19611-883-000

PLATE, SIDE

$16.99

$

Usually ships in 3-6 days

0

3

Honda 19631-883-010

SHROUD

$30.99

$

Usually ships in 3-6 days

0

4

Honda 19641-883-010

SEE PART DETAILS - SUP; COVER, TOP
(Superseded to 19641-883-020)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 19643-883-010

GROMMET, TOP COVER

$2.99

$

Usually ships in 3-6 days

0

6

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

7

Honda 35310-887-790

WIRE A, ENGINE STOP

$12.99

$

Usually ships in 3-6 days

0

8

Honda 40513-310-000

RUBBER, CHAIN CASE MOUNTING

$3.49

$

In Stock, only 2 left!

0

9

Honda 63501-883-780ZA

SEE PART DETAILS - SUP; COVER, ENGINE SIDE *R8* (BRIGHT RED)

$

$

Currently unavailable

10

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

12

Honda 91405-671-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0

13

Honda 93500-06020-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 9
