F500 A1 (F500) - Honda Tiller, Made in Japan (SN: F500-1000001 - F500-9999999) CRANKCASE COVER Parts Diagram

Tiller, Made in Japan

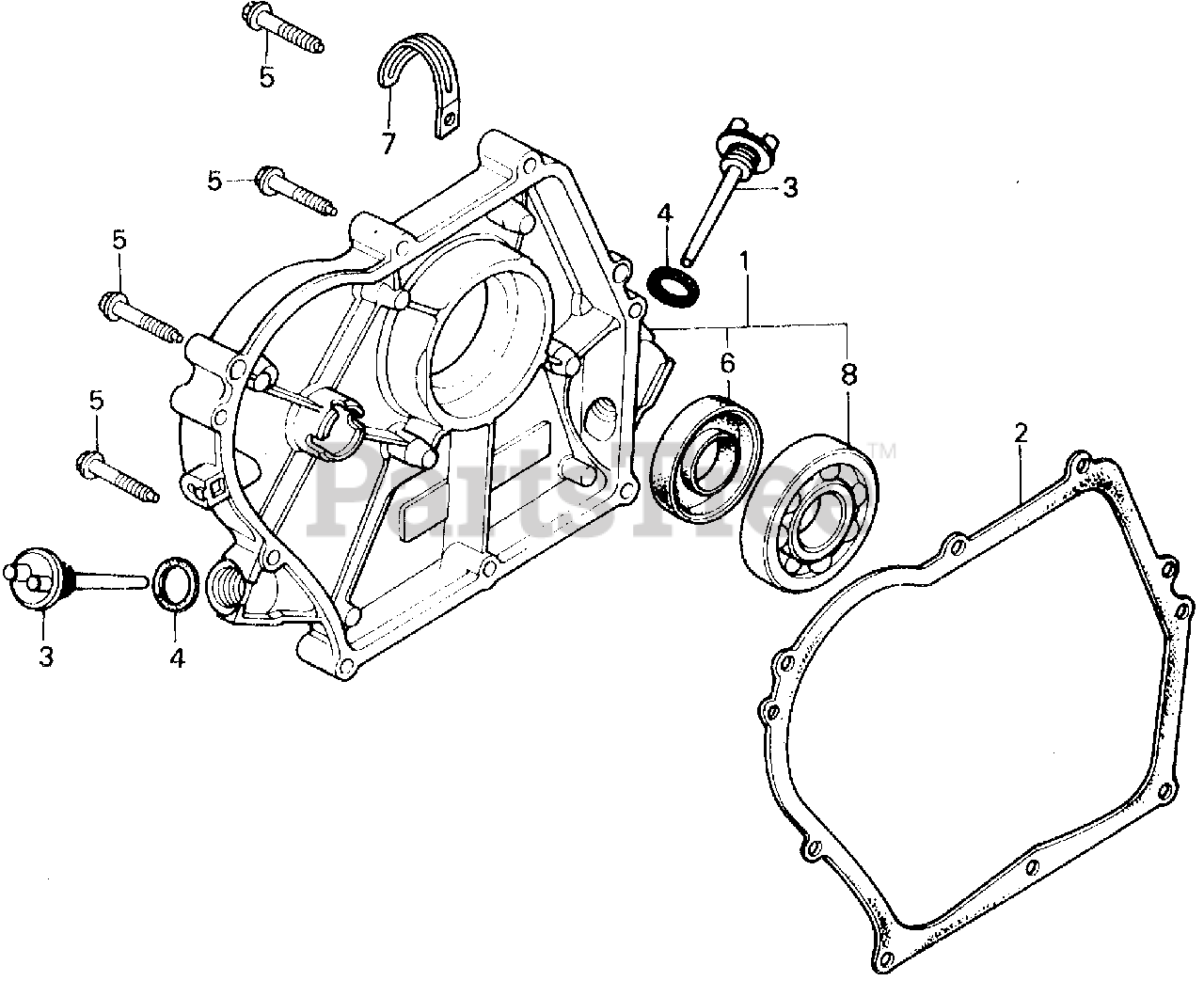

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-883-020

COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 11381-883-800

GASKET, CASE COVER

$13.99

$

Usually ships in 3-6 days

0

3

Honda 15620-883-010

CAP, OIL (YELLOW)

$8.99

$

Usually ships in 3-6 days

0

4

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: Use from Engine SN 1569188.

$5.99

$

In Stock, Qty 5

0

5

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

6

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

6

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

7

Honda 91405-671-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0

8

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0
