F5 (56A-658-195) - MTD Pro Tornado Blower Engine & Blower Assembly Parts Diagram

Pro Tornado Blower

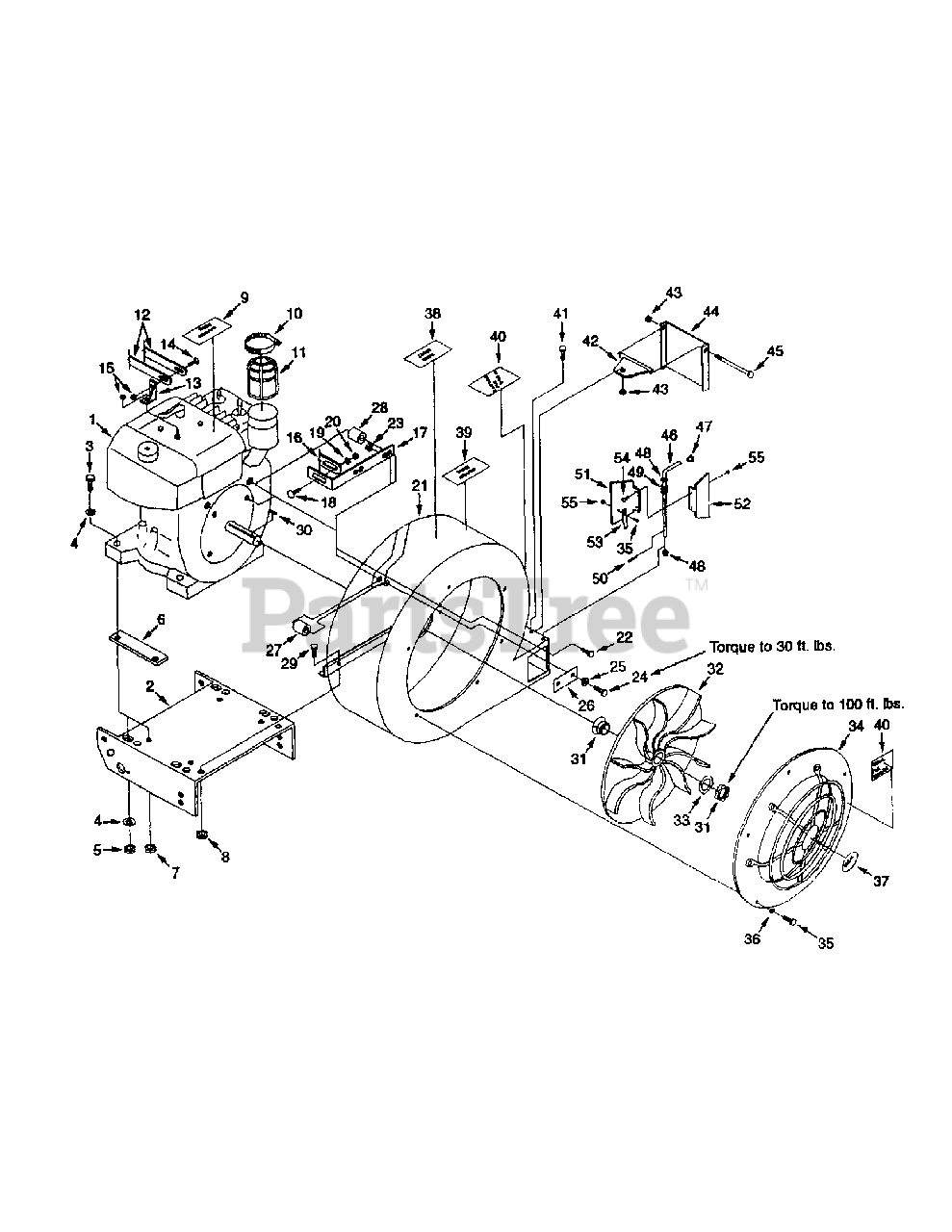

Engine & Blower Assembly Parts Diagram

  • Title

1

MTD 00022425

Engine, 5hp Briggs & Stratton

Note: NLA

$

$

Currently unavailable

2

MTD 01001402

Base Plate, Engine

$

$

Not available

3

MTD 00006129

Cap Screw, 5/16-18 x 1-3/4 Hex Head

$6.99

$

Usually ships in 3-6 days

0

4

MTD n/a

Flat Washer, 5/16 SAE

$

$

Currently unavailable

5

MTD n/a

Hex Nut, 5/16-18 Side Lock

$

$

Currently unavailable

6

MTD 01001409

Riser Plate, Engine

$

$

Not available

7

MTD 00022547

Hex Nut, 5/16-18 Side Lock

$

$

Not available

8

MTD 00022547

Hex Nut, 5/16-18 Side Lock

$

$

Not available

9

MTD 00022548

Decal Warning Label

Note: NLA

$

$

Currently unavailable

10

MTD 00022546

Clamp, Muffler Guard

Note: NLA

$

$

Currently unavailable

11

MTD 00022717

Muffler Guard

$

$

Not available

12

MTD n/a

Center Brace, Offset

$

$

Currently unavailable

13

MTD n/a

Pivot, Center Brace

$

$

Currently unavailable

14

MTD n/a

Carriage Bolt, 5/16-18 x 3/4

$

$

Currently unavailable

15

MTD n/a

Hex Nut, 5/16-18 Side Lock

$

$

Currently unavailable

16

MTD 00030496

Center Brace

Note: NLA

$

$

Currently unavailable

17

MTD 00030495

Center Support

Note: NLA

$

$

Currently unavailable

18

MTD 00020508

Carriage Bolt, 5/16-18 x 3/4

$6.99

$

In Stock, only 3 left!

0

19

MTD 00012169

Flat Washer, 5/16 SAE

$4.49

$

In Stock, only 2 left!

0

20

MTD 00022547

Hex Nut, 5/16-18 Side Lock

$

$

Not available

21

MTD 01001412

Fan Housing

$

$

Not available

22

MTD 00012171

Cap Screw, 3/8-16 x 1 Hex Head

$3.49

$

Usually ships in 3-6 days

0

23

MTD 00034224

Hex Nut, 3/8-16 Stover Lock

$

$

Not available

24

MTD 00019919

Cap Screw, 5/16-24 x 3/4 Hex Head

Note: NLA

$

$

Not available

25

MTD 00012168

Lock Washer, 5/16

$

$

Not available

26

MTD 00032658

Strap, Housing Lock

$

$

Not available

27

MTD n/a

Housing Spacer

$

$

Currently unavailable

28

MTD n/a

Spacer

$

$

Currently unavailable

29

MTD 00013406

Cap Screw, 5/16-18 x 3/4 Hex Head
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

MTD 00010022

Key, 1/4 x 1/4 x 1-1/8

$6.99

$

Usually ships in 3-6 days

0

31

MTD 00032664

Fan Bushing/Hex Nut

$

$

Not available

32

MTD 00022644

Fan

Note: NLA

$

$

Not available

33

MTD 00032673

Lock Ring, Fan Bushing

$

$

Not available

34

MTD 01001421

Front Guard

$

$

Not available

35

MTD 00032678

Machine Screw, #8-32 x 3/8 Round Head

$

$

Not available

36

MTD 00022780

Lock Washer, #10 External Tooth

$

$

Not available

37

MTD 00022829

Decal, Stop First/Then Lift

$

$

Not available

38

MTD 01002109

Decal, MTD

$

$

Not available

39

MTD 00030468

Decal, Caution Procedure

$

$

Not available

40

MTD 00030268

Decal, Danger Fan

$

$

Not available

41

MTD 00012134

Cap Screw, 1/4-20 x 3/4 Hex Head

Note: NLA

$

$

Not available

42

MTD 01001400

Hinge Bracket

$

$

Not available

43

MTD 00023041

Hex Nut, 1/4-20 x 3/4 Hex Head

$

$

Not available

44

MTD 01001399

Deflector Plate

Note: NLA

$

$

Not available

45

MTD 00031170

Cap Screw, 1/4-20 x 5 Hex Head

$

$

Not available

46

MTD 01001410

Handle, Front Door

Note: NLA

$

$

Currently unavailable

47

MTD 00023048

Crutch Tip

$

$

Not available

48

MTD 00022990

Brass Bushing

Note: NLA

$

$

Currently unavailable

49

MTD 00031193

Spring, Deflector

$

$

Not available

50

MTD 00012204

Cotter Pin, 3/32 x 3/4

$

$

Not available

51

MTD 01001401

Plate, Deflector Inside

$

$

Not available

52

MTD 01001403

Plate, Deflector Outside

$

$

Not available

52

MTD 01001403

Plate, Deflector Outside

$

$

Not available

53

MTD 01001411

Latch, Front Door

Note: NLA

$

$

Currently unavailable

54

MTD 00021682

Machine Screw, #8-32 x 3/4 Round Head

Note: NLA

$

$

Not available

55

MTD 00021683

Hex Nut with Washer, #8-32

Note: NLA

$

$

Not available
