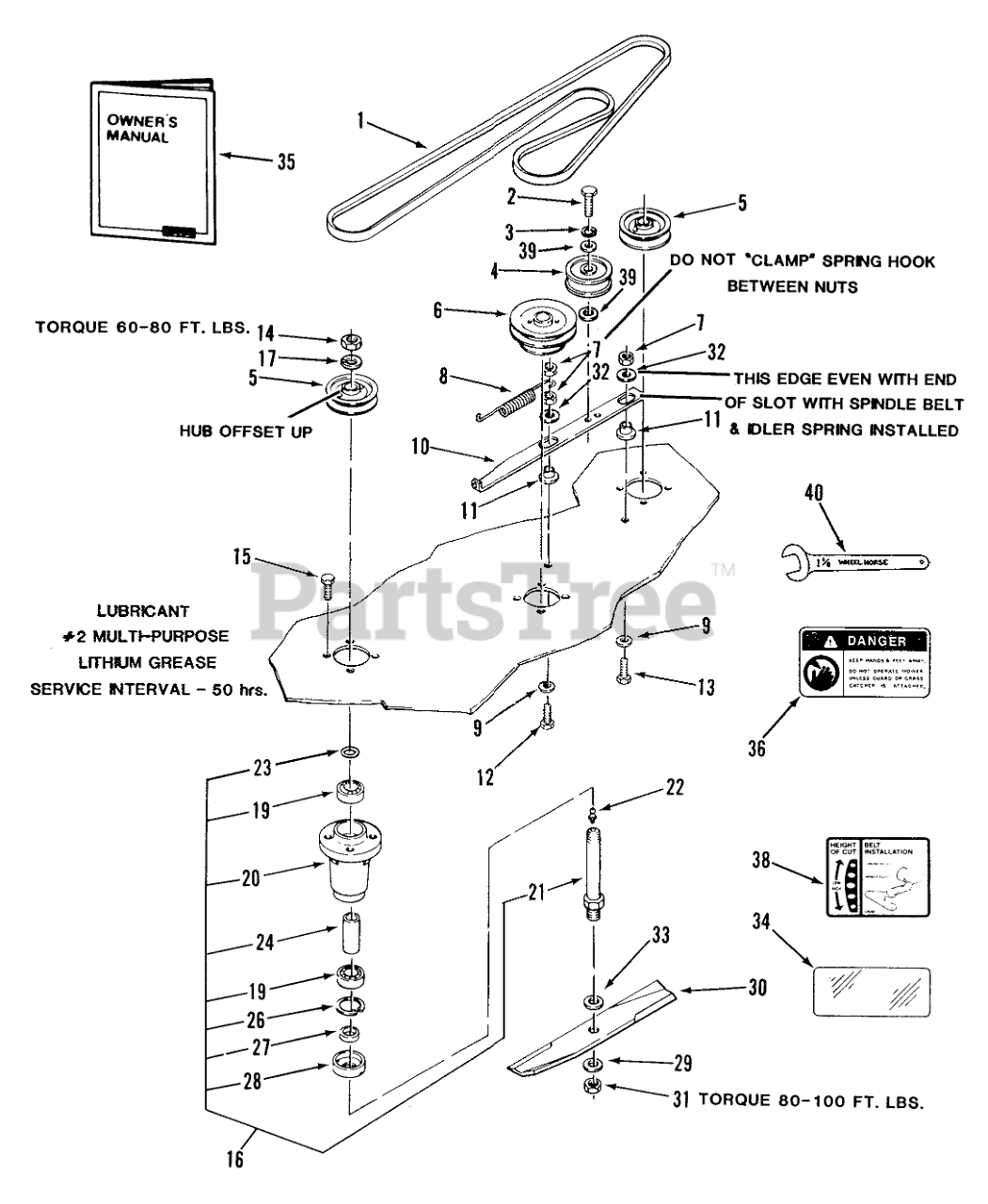

F5-48SC01 - Toro 48" Side-Discharge Mower Deck (1989) SIDE DISCHARGE MOWER-48 IN. (122 CM) VEHICLE IDENTIFICATION NUMBER F5-48SC01 Parts Diagram

48" Side-Discharge Mower Deck

SIDE DISCHARGE MOWER-48 IN. (122 CM) VEHICLE IDENTIFICATION NUMBER F5-48SC01 Parts Diagram

  • Title

1

Toro 1594

V-BELT

$39.99

$

In Stock, only 1 left!

0

2

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 3 left!

0

5

Toro 110146

PULLEY-BLADE, DRIVE

$71.99

$

In Stock, only 1 left!

0

6

Toro 113438

PULLEY-48" MOWER CEN

$209.99

$

Usually ships in 3-6 days

0

7

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 9150894

Jam Nut
(Superseded to 3220-6)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$1.49

$

In Stock, Qty 12

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

16

Toro 110172

Spindle Assembly
(Superseded to 111726)

$266.99

$

In Stock, Qty 5

0

17

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

20

Toro 112886

SHAFT-ROLLER
(Superseded to 112886-03)

$

$

Not available

21

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

22

Toro 1030

Zerk

$

$

Not available

23

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

24

Toro 116085

TUBE

$33.99

$

In Stock, only 1 left!

0

26

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

30

Toro 114154

Choke/Throttle Control 212-6
(Superseded to 11-5790)

$23.99

$

Usually ships in 3-6 days

0

31

Toro 9150904

Nut-Jam
(Superseded to 3220-7)

Note: "4" At end indicates free-running nut. DO NOT use Eslok or other type locking nut.

$4.49

$

In Stock, Qty 5

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 18

0

33

Toro 920258

SpeciaI Washer
(Superseded to 9202584)

$7.49

$

In Stock, Qty 6

0

34

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

35

Toro 810581R1

Operating and Maintenance Instruction

$

$

Currently unavailable

36

Toro 111188

Danger Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

38

Toro 106753

DECAL-HEIGHT & BELT

$13.99

$

Usually ships in 3-6 days

0

39

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

40

Toro 114647

Spindle Wrench

$

$

Not available
