F401 AD (F401) - Honda Tiller, Made in Japan (SN: F401-1000001 - F401-1099999) ROTOR Parts Diagram

Tiller, Made in Japan

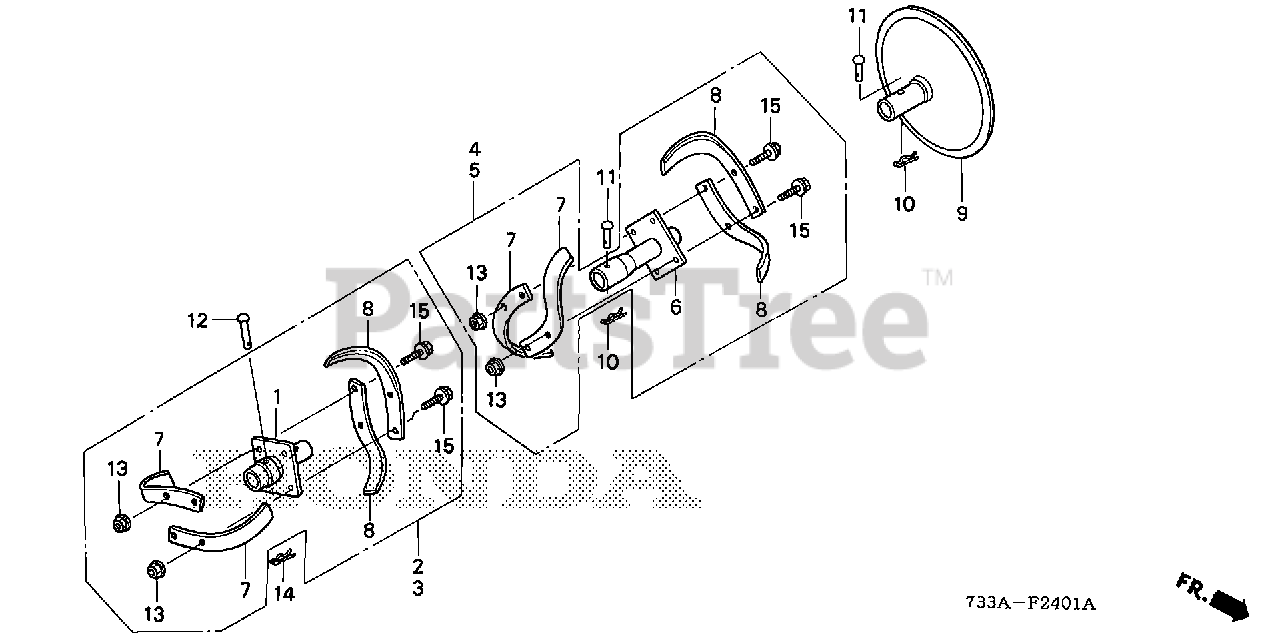

ROTOR Parts Diagram

  • Title

1

Honda 72111-733-700

SEE PART DETAILS - SUP; PIPE, MAIN ROTOR

Note: Use up to Frame SN 1005039.

$

$

Not available

1

Honda 72111-733-701

SEE PART DETAILS - PRI; PIPE, MAIN ROTOR (NOT AVAILABLE)

Note: Use from Frame SN 1005040.

$

$

Currently unavailable

2

Honda 72140-733-700

ROTOR ASSY., R. MAIN (NOT AVAILABLE)

Note: Use from Frame SN 1008406 to 1011908.

$

$

Not available

2

Honda 72140-733-701

ROTOR ASSY., R. MAIN (NOT AVAILABLE)

Note: Use from Frame SN 1011909.

$

$

Not available

3

Honda 72150-733-700

ROTOR ASSY., L. MAIN

Note: Use from Frame SN 1008406 to 1011908.

$

$

Not available

3

Honda 72150-733-701

ROTOR ASSY., L. MAIN (NOT AVAILABLE)

Note: Use from Frame SN 1011909.

$

$

Currently unavailable

4

Honda 72160-733-700

ROTOR ASSY., R. (OUTER) (NOT AVAILABLE)

Note: Use from Frame SN 1008406.

$

$

Not available

5

Honda 72170-733-700

ROTOR ASSY., L. (OUTER) (NOT AVAILABLE)

Note: Use from Frame SN 1008406.

$

$

Not available

6

Honda 72211-733-010

PIPE, ROTOR (OUTER)

$93.99

$

Usually ships in 3-6 days

0

7

Honda 72461-733-000

TINE A, ROTOR

$23.99

$

Usually ships in 3-6 days

0

8

Honda 72465-733-000

TINE B, ROTOR

$23.99

$

In Stock, Qty 16

0

9

Honda 72510-733-010

DISK, SIDE

$48.99

$

Usually ships in 3-6 days

0

10

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0

11

Honda 90755-733-000

PIN, WHEEL (8X43)

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90757-723-670

PIN (10X53.5)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0

15

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0
